G.R.A.S. 45CA User Manual

4.3 MountingtheAssemblyintotheTestFixture
1. SeeFig.4.3:
– Mount the Cover Plate GR1085.
– Mount the Insert GR0970.
(Both items are already mounted at delivery).
G.R.A.S. SOUND & VIBRATION
Page 10
Hearing-Protector Test Fixture Type 45CA

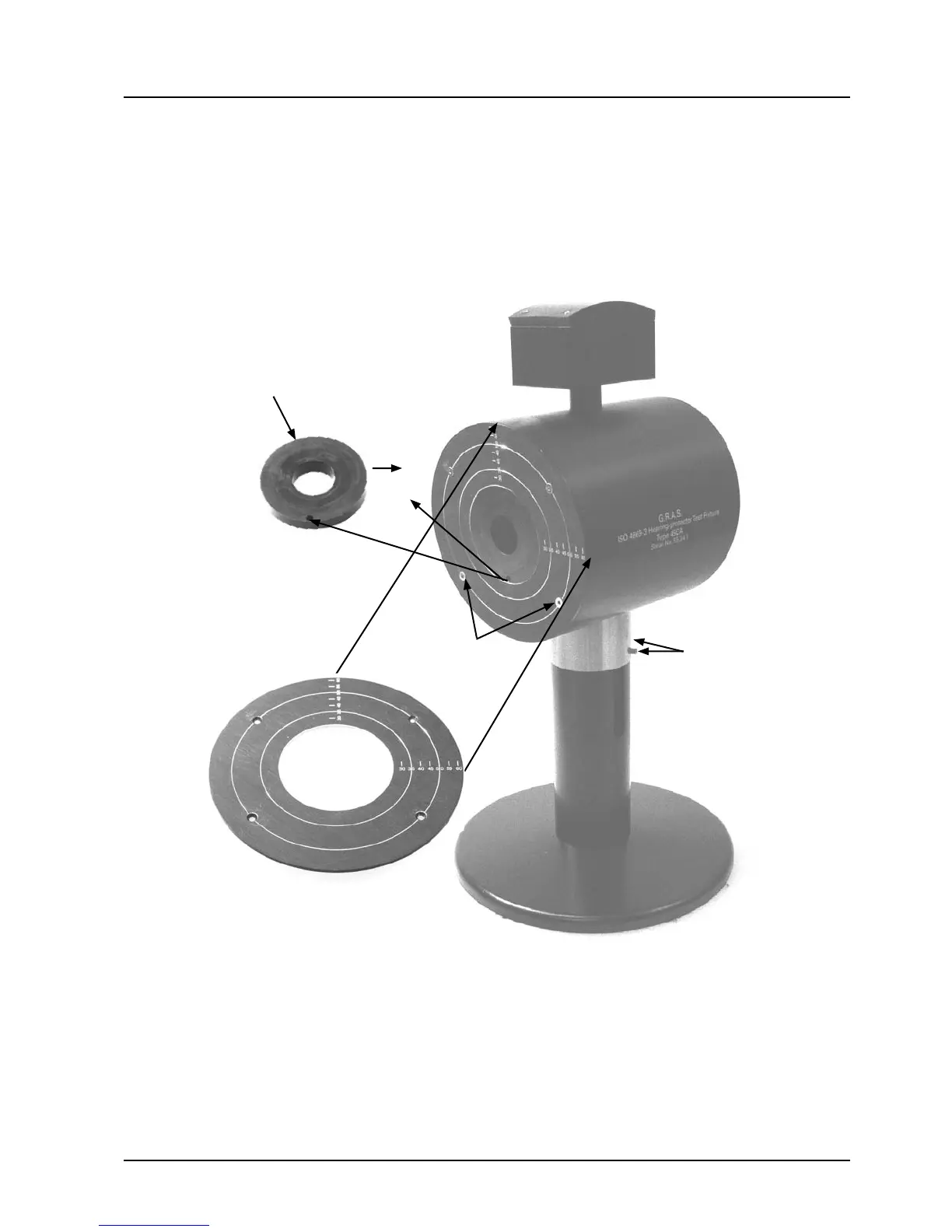

Fig. 4.3 Cover plate and insert to be mounted
2.UsingAllenkey1.5mm,loosenthetwo1.5mmgrubscrews(Fig.4.3),andseparate  
the head from the pedestal.
Up
Insert
GR0970
Allen grub screws,
1.5 mm
Right
Cover plate
GR1085
Screws,
2.0 mm
Hole for
screw,
1.5 mm
