5.3
Completingthe
Assembly
1.
Unscrewthemicrophone

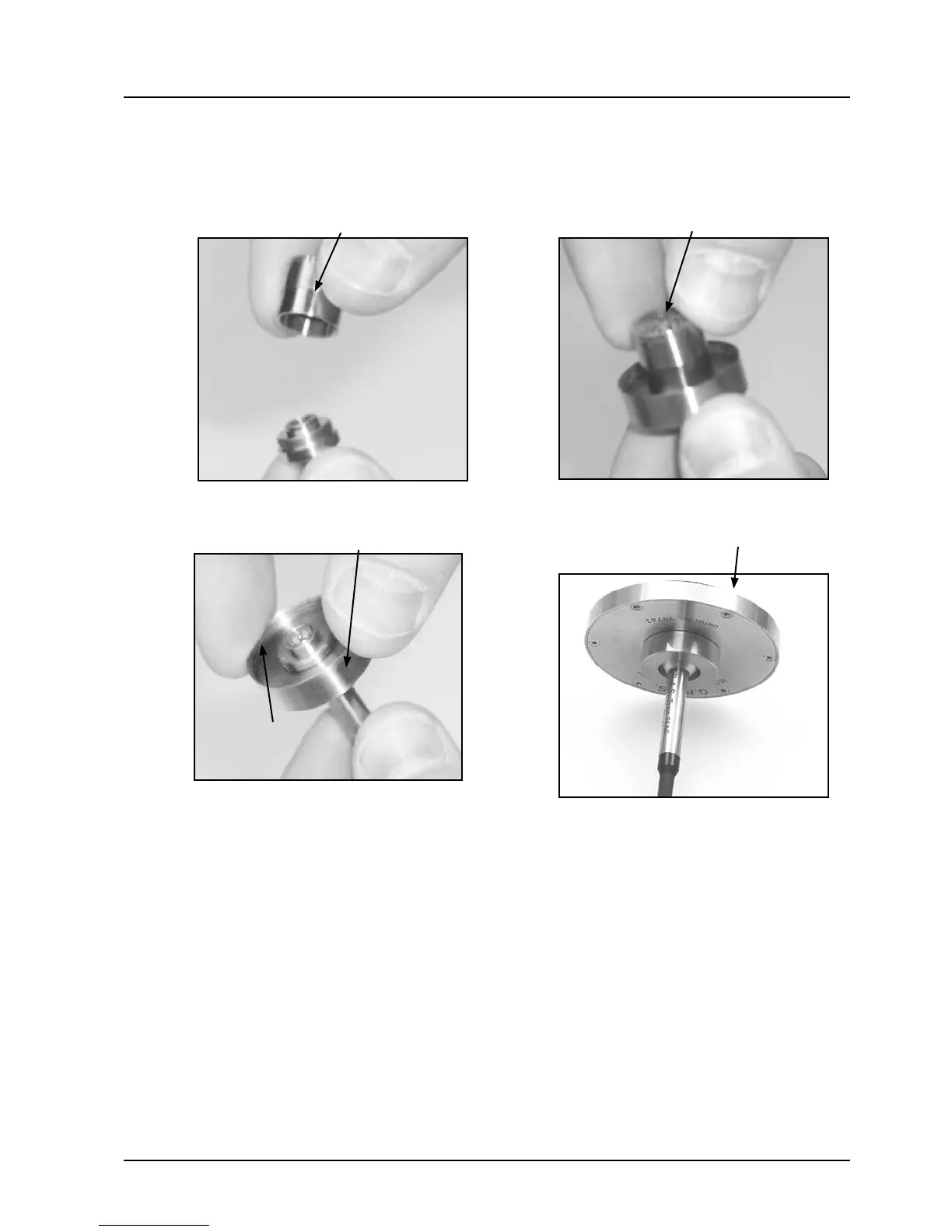

Fig. 5.4
2.
Place the adapter RA0176.
Fig. 5.5
3.
Remount the microphone
Fig. 5.6
4.
Screw
Ear
Simulator
RA0039
onto the assembly
Fig. 5.7
Complete assembly
NB! Threaded side must face
upwards.
G.R.A.S. SOUND & VIBRA
TION
Page 18
Hearing-Protector T
est Fixture T
ype 45CA
17
19
