M
Door Multipoint Locking System
Solid brass handle & 45mm plate series
Assembly and Operating Instructions
A-opener, SECUREconnect R, Fingerprint Scanner or Code Keypad, Cable Relay - –

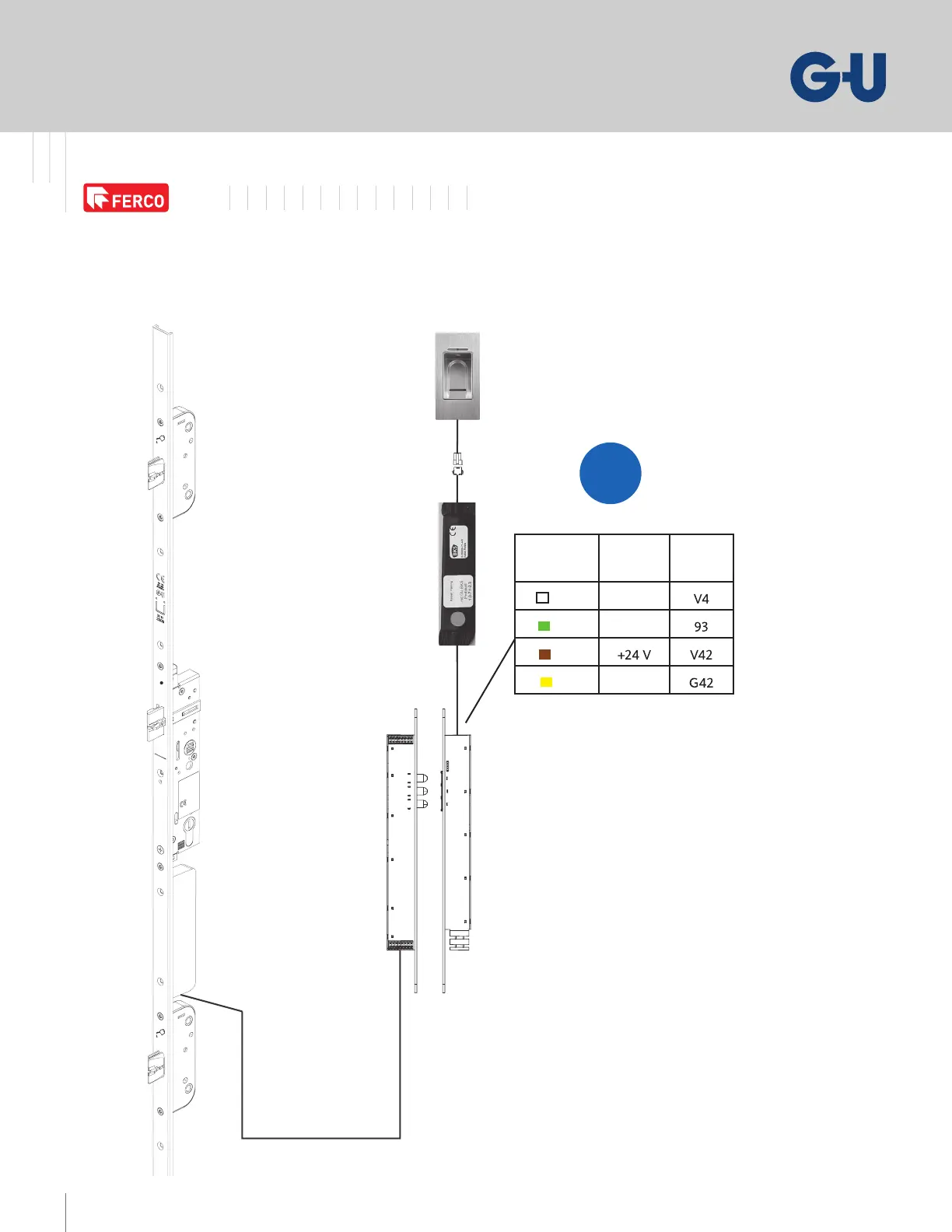

Door Frame Mounted Connection Diagram
Door Multi-point Locking System Automatic Smart Access Controlled
With the cable relay, the access control module can be mounted in the door frame. The connection is
established on the SECUREconnect frame part.
On the other side of the cable relay is the system cable for connection to the access control module.
Wire colourSignalSECURE
connec t
WH C
GNNO
BN
YE GND
