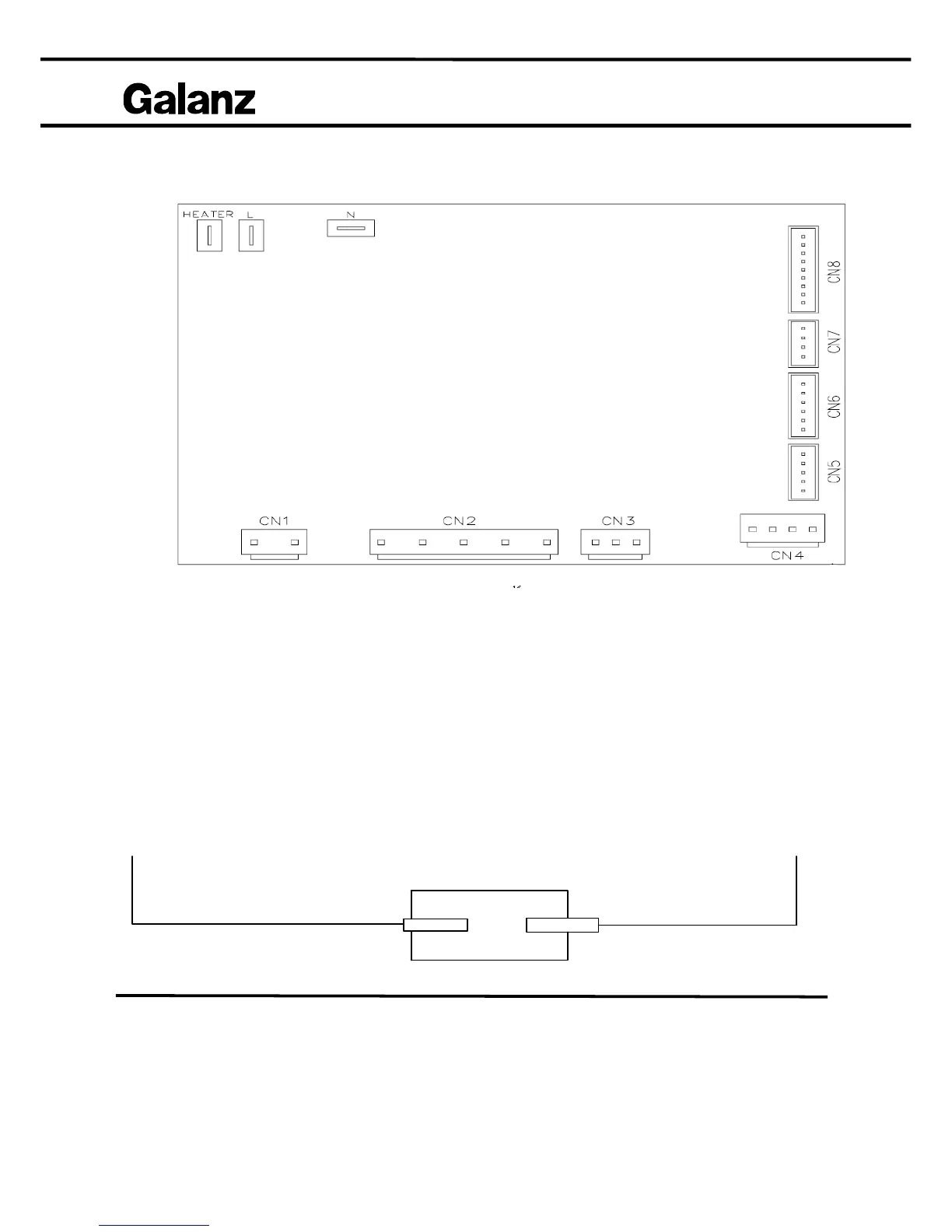

7.1 Connector of PCBA
7.2 Dishwasher Strip Circuits
The following individual circuits are for use in diagnoses. Do not continue with
the diagnoses of the appliance if a fuse is blown, a circuit breaker is tripped, or if
there is less than a 230 volt power supply at the wall outlet.
■ Unplug dishwasher or disconnect power.
■ Perform resistance checks. To check resistance of a component, disconnect
harness leads first.
Power Up
N
L
N
PCBA
L
To Next Page
