Note: 1. After turning on the machine till the carriage moving back to home position, the processing indication
shows as: A. – 1 – 3– 4– 5 – 0.
Main board and Head board show the same indication.
2. The two power cable plug both are 20Pin.
3. In normal state, RUN LED is blinking; LINK LED is on; BUSY LED is on（On Main board, when
carriage moves, BUSY LED is on, otherwise it is off）;ERROR LED is off(only on when there is problem).
Chapter 5.
Software Installation
This software consist of printer driver, printing adjustment and picture printing functions.
Please follow the following steps to install the software:

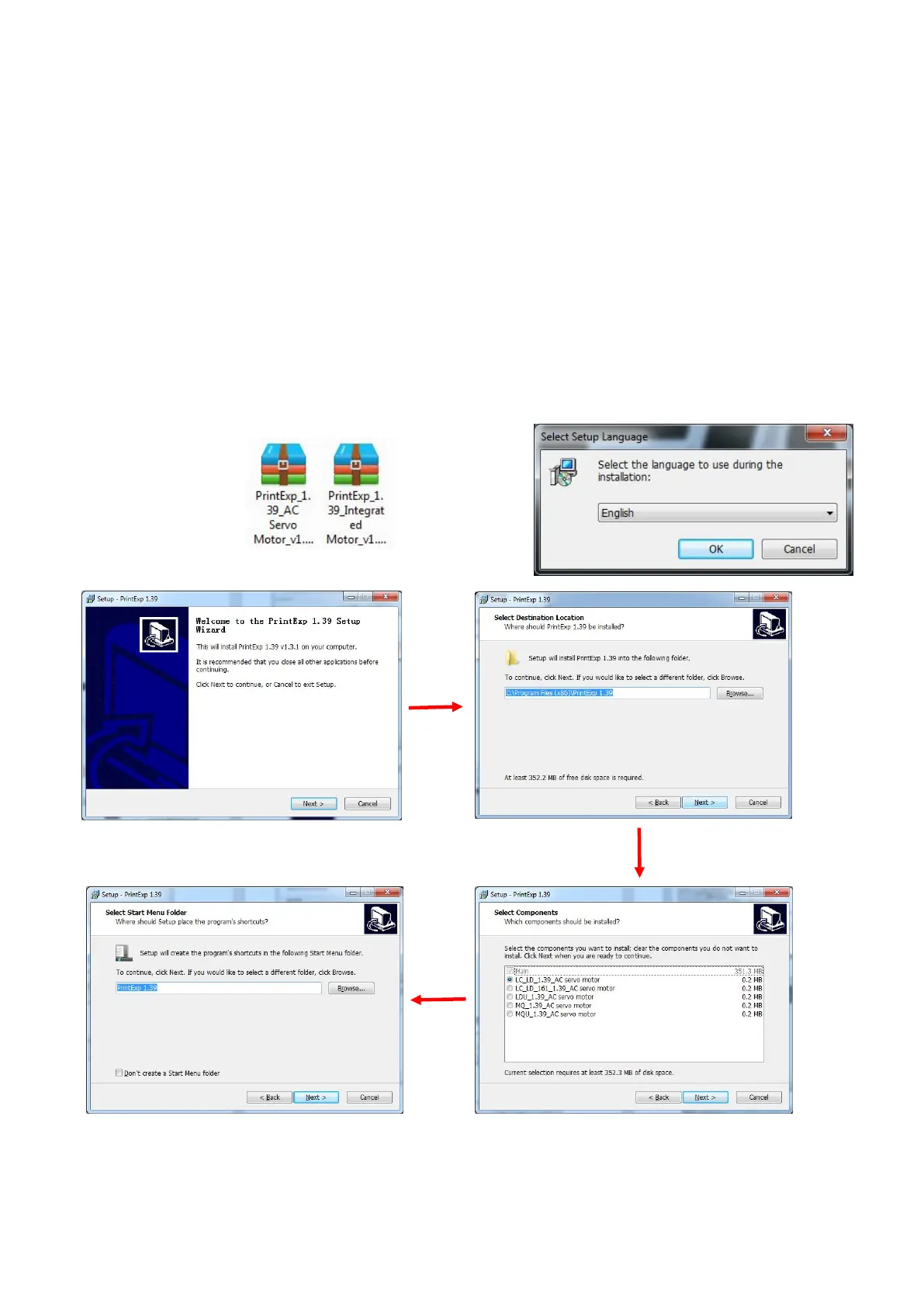

1) Turn on the computer till the system is ready, copy PrintExp_1.39 to your computer, un-zip to get
PrintExp_1.39 folder. Start to install:
To Next Page
