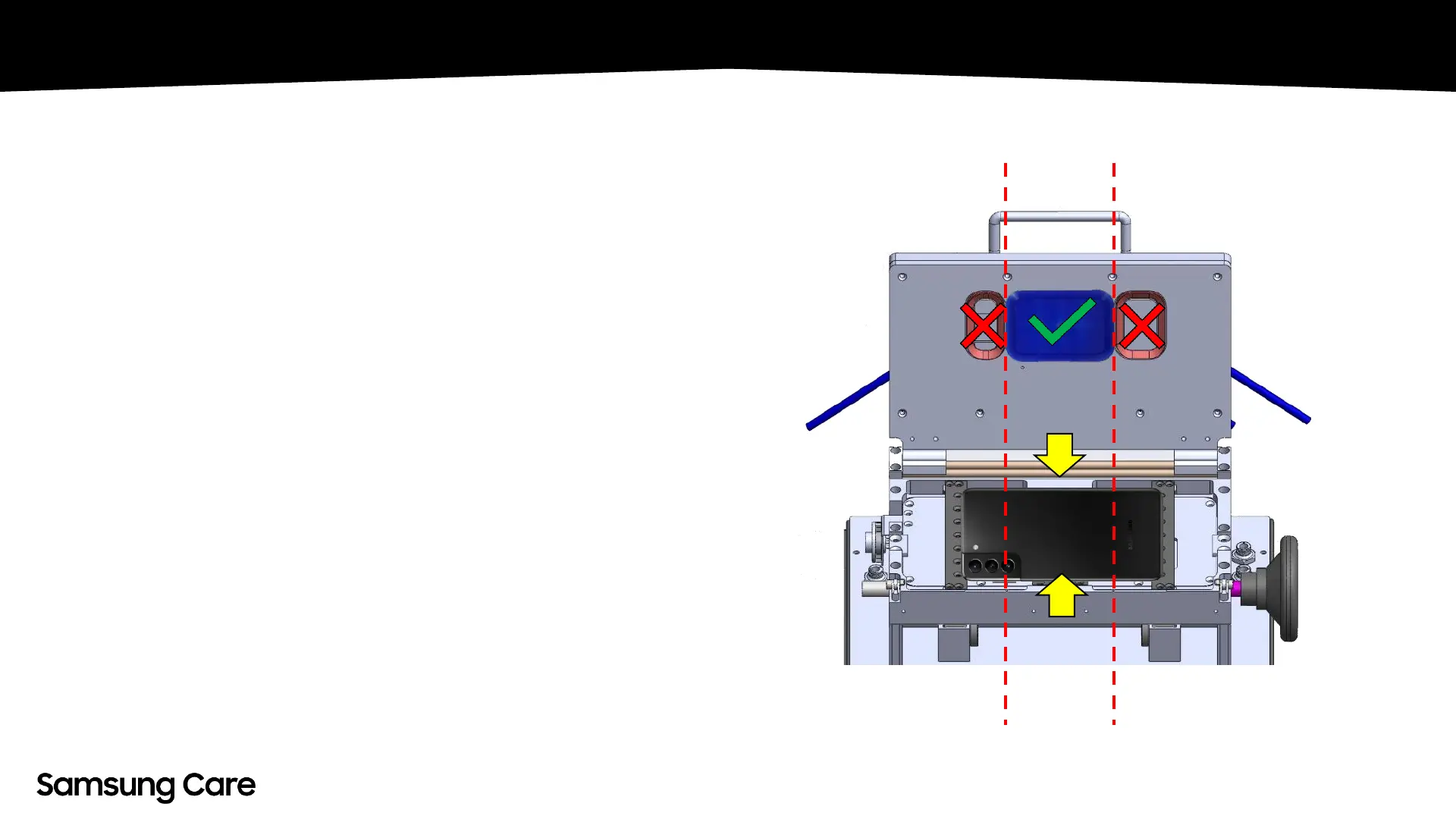

Device Placement
• Place the device face down with the
Camera positioned to the lower left
side of the lower plate
• Align the device with the suction lines
so that the Center Seal is aligned
directly with the center of the Back
Cover
• Once aligned, lock the device in place
by twisting the Torque Wheel, then
lower the upper plate
