3E4465 Gallagher HBUS 8 Port Hub Installation Note | Edition 4 | January 2021
Copyright © Gallagher Group Limited Page 4
1 Introduction

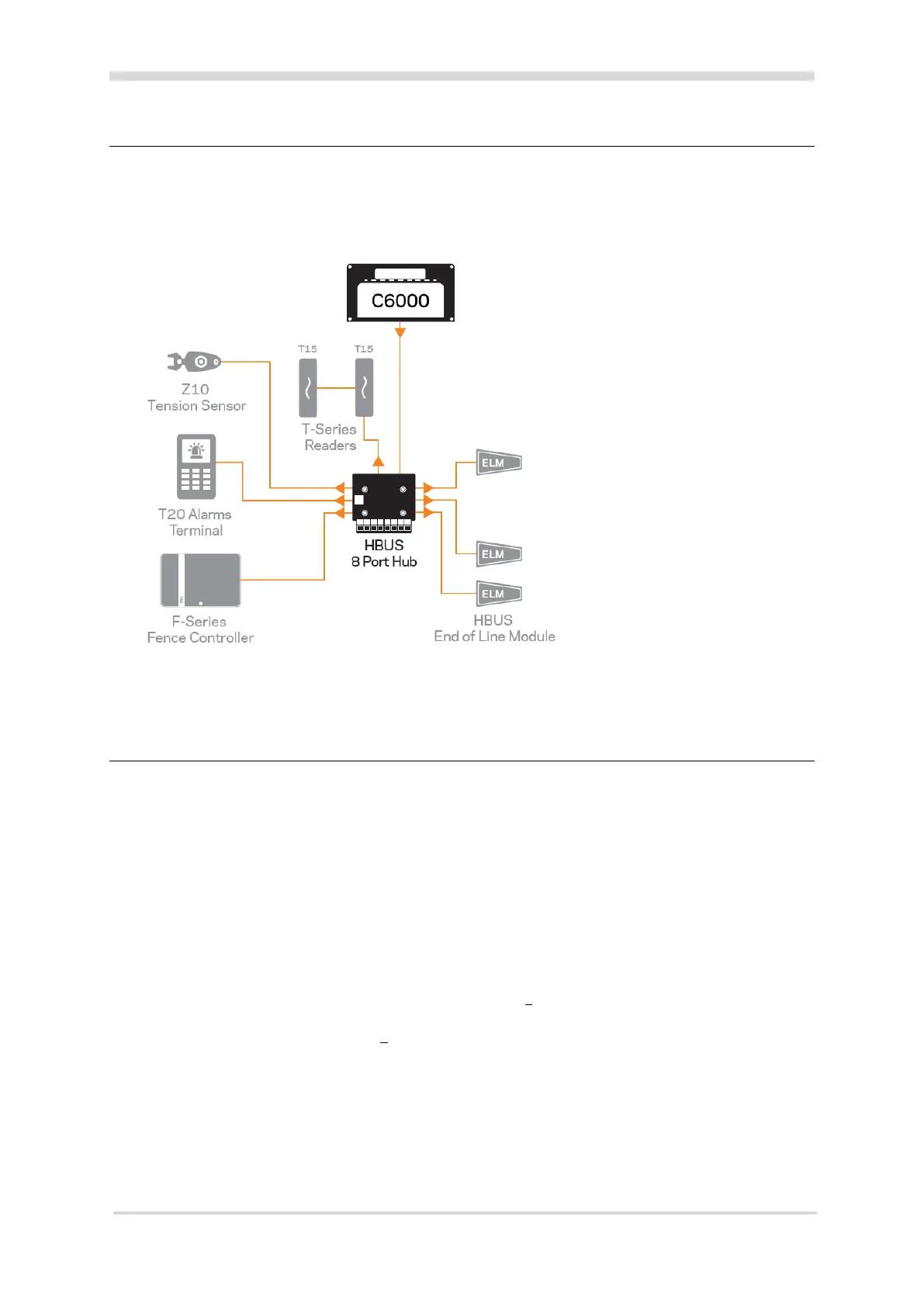

The Gallagher HBUS 8 Port Hub provides installers with the flexibility to re-use existing wiring on site,
allowing combinations of star/home run and daisy chain wiring to be used when connecting HBUS devices
back to a Gallagher Controller 6000. It utilises a FPGA (field programmable gate array) to allow for the
star wiring of devices. The HBUS 8 Port Hub is not a monitored device and therefore is transparent to the
Controller.
Note: UL have evaluated the 8 Port Hub with readers and alarm terminals only. Tension sensor and
Fence Controller equipment have not been evaluated as they are not subject to the UL294 listing.
2 Before you begin
2.1 Shipment contents
Check the shipment contains the following items:
• 1 x Gallagher HBUS 8 Port Hub
• 1 x Gallagher HBUS 8 Port Hub Installation Note (this note)
• 4 x 4G X 1/4" pan pozi screws
2.2 Power supply
The Gallagher HBUS 8 Port Hub requires a 13.6 Vdc + 15% power supply. This is connected
through the 2 pin connector labelled Vin. The 2 pins are labelled - and +. The terminals VOUT
and GND provide a 13.6 Vdc + 15% output suitable for HBUS connections, rated at 4A total from
all outputs.
2.3 Cabling
The end devices on the HBUS cable should be terminated using 120 Ω resistance. Termination is
already included at the HBUS Module out ports, (i.e. each HBUS out port is permanently
terminated at the module).
