Gallagher 3E0682 Mains Energizer User Manual
7

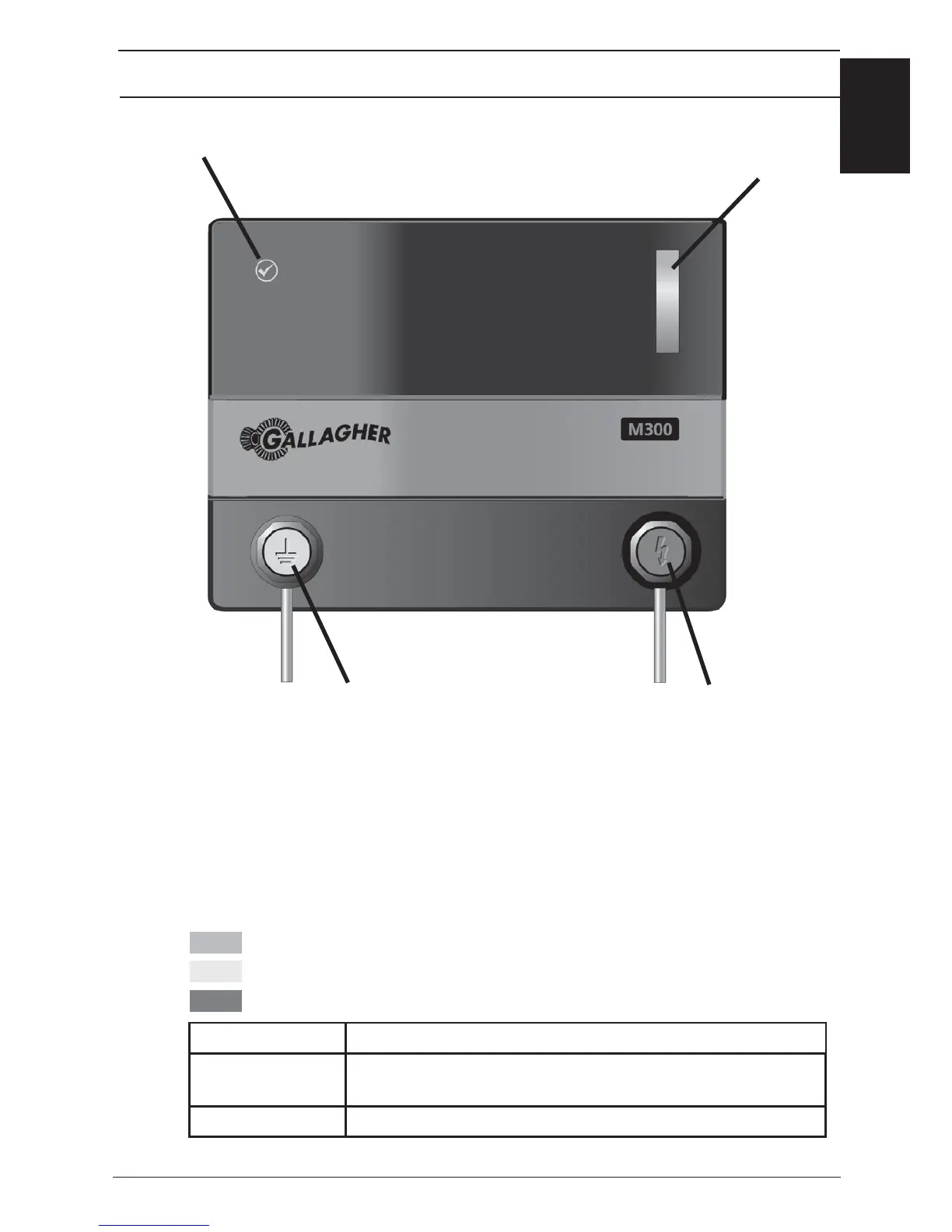

Power on:
Indicates normal
opera on
Output voltage bar
graph:
Quick indica on of the voltage
at the energizer
Earth Terminal:
Connects to Earth
Output Terminal:
Connects to Fence
UNDERSTANDING YOUR ENERGIZER
Power On Light
Green light constant- Normal opera on
Output voltage bargraph
The output voltage bargraph will pulse with every energizer pulse. Each
colour segment gives an approximate indica on of the fence performance.
The bargraph is read in the following manner:
Green Segments Your fence is performing well. No a en on is required.
Yellow Segments Your fence is under some load but is s ll delivering an
eff ec ve shock.
Red Segments Your fence is under heavy load and requires maintenance.
Use this bar graph for quick indica on of your energizer and Fence performance.
Green
Yellow
Red
M500: This energizer complies with the requirements for a me delayed electric
fence energizer with a me delay of 15 seconds.
