Gallagher 3E0682 Mains Energizer User Manual
8

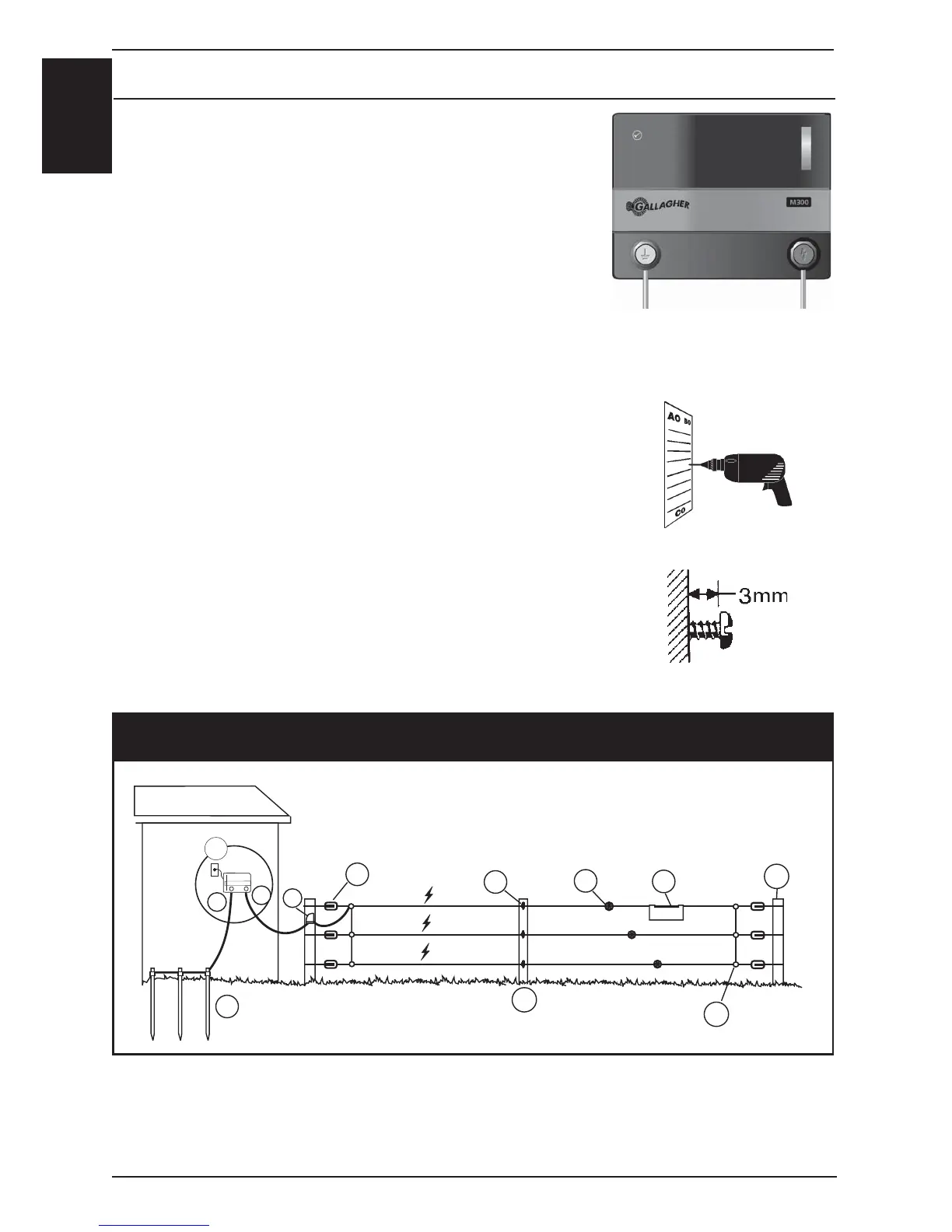

INSTALLATION GUIDE
Mains operation only
Step 1. Install the energizer
Mount the energizer on a wall, under cover or inside,
out of reach of children. Install where there is no risk of
the energizer incurring fi re or mechanical damage and
if possible away from heavy electrical equipment eg.
pumps or other items that may cause electrical interference.
Note: Install the energizer in a frequently accessed place. The displays and alarms
give valuable informa on that can save me and help
prevent costly problems.
Using the template on the back page, drill 2 x 4mm a)
(5/32”) holes (A & B).
Fix the screws provided into the wall leaving the head b)
of the screw about 3mm (1/8”) out from the wall.
Place the energizer over and slide down onto the c)
moun ng screws.
1 Energizer
2 Earth stake
3 Strain insulator
4 Post insulator
9 Cut out switch
10 Joint clamps
11 Strain post
12 Line post
5 Wire ghtener
6 Warning sign
7 Earth (Green)
8 Live (Red)
1
2
8
7
9
10
12
11
3
4
5
6
Permanent Fence
b
a
