INSTALLATION
Installing the Scale bracket

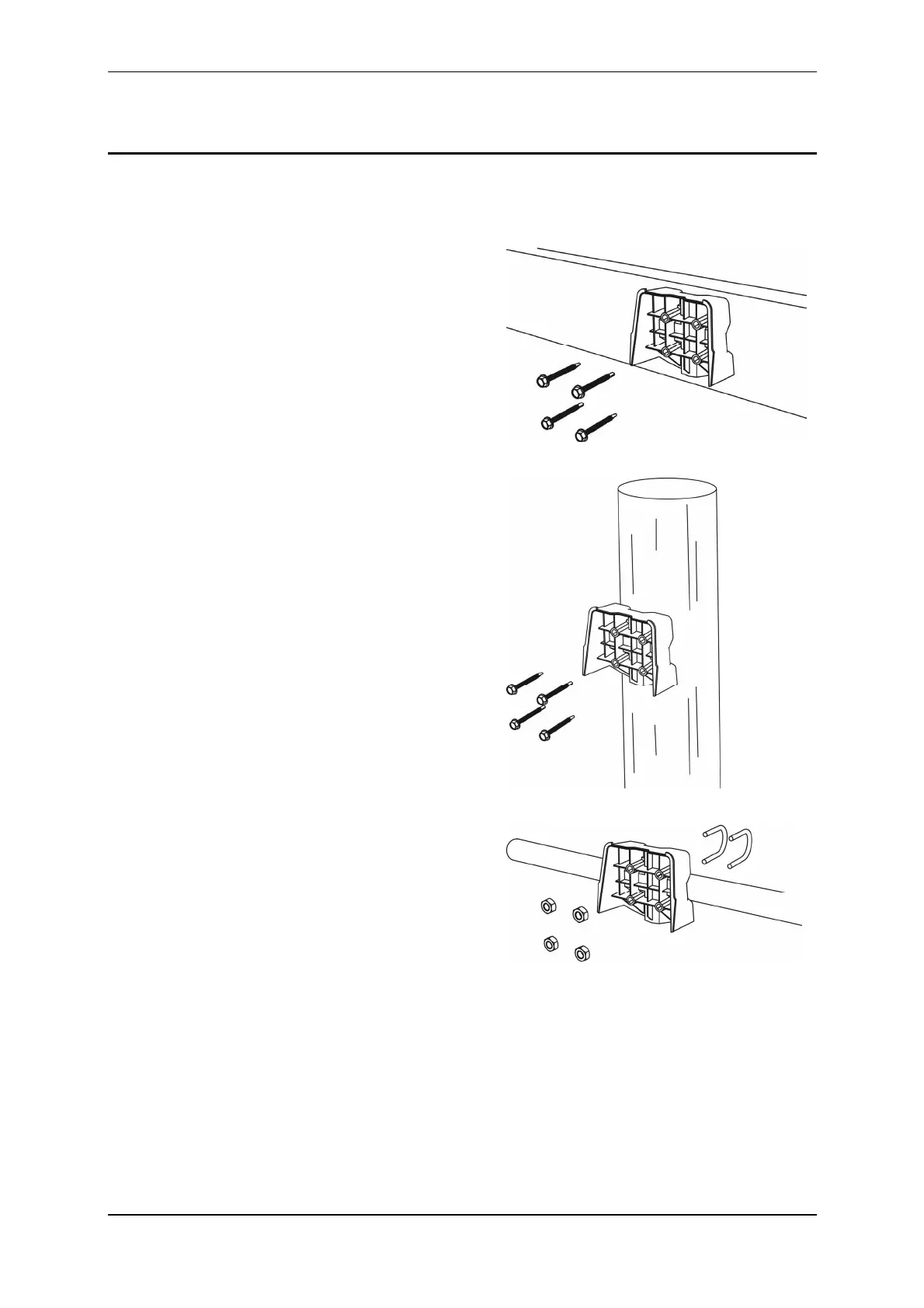

The bracket can be mounted on a flat vertical surface, a round post, or a rail.
To mount the bracket on a
flat vertical surface, or a
round wooden post, use
the 4 x tek screws included
with the unit.
To mount the bracket on
either a vertical or
horizontal bar, use the 'U'
bolts included with the
unit.
Do not mount the Weigh Scale bracket on the weighing crate or chute.
