Cooling Fan and Liquid Cooling System Installation
Einbau von Kühlgebläse und Kühler / Instalação de ventilador e radiador / Установка охлаждающего
вентилятора и радиатора / 散热风扇与一体式水冷安装
120mm Fan x1 (included)
120mm Liquid cooling system (optional)
120/240mm Liquid cooling system (optional)
120mm Fan x2 (included)
Rear
Front
120mm Fan x3 (optional)
140mm Fan x2 (optional)
120/140/240/280/360mm
Liquid cooling system (optional)
Top
120mm Fan x1 (optional)
Bottom

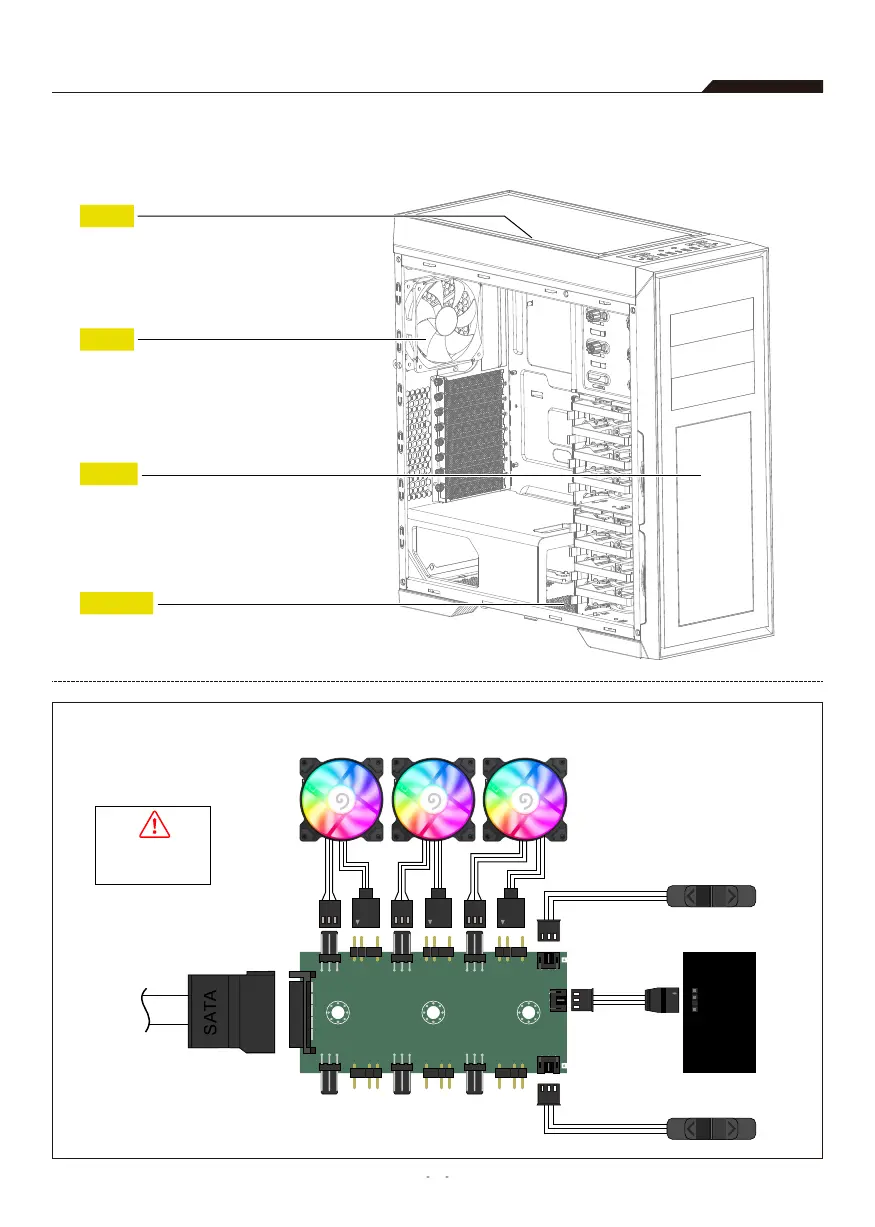

FAN CABLES CONNECTION INSTRUCTION
MASTER 2
FAN1
ARGB1
FAN2
ARGB2
FAN3
ARGB3
FAN6
ARGB6
FAN5
ARGB5
FAN4
ARGB4
AURA SYNC
Connect the toggle switch on the top cover
Connect the toggle switch on the top cover
9905-BC
9902
SATA 1
VCC
DATA
GND
5V COM 12V
5V COM 12V
PSU
MB
Please do not plug in the
wrong power interface,
otherwise it will burn out
equipment!
