Position of machine unit
Note the maximum number of storage segments per machine unit!

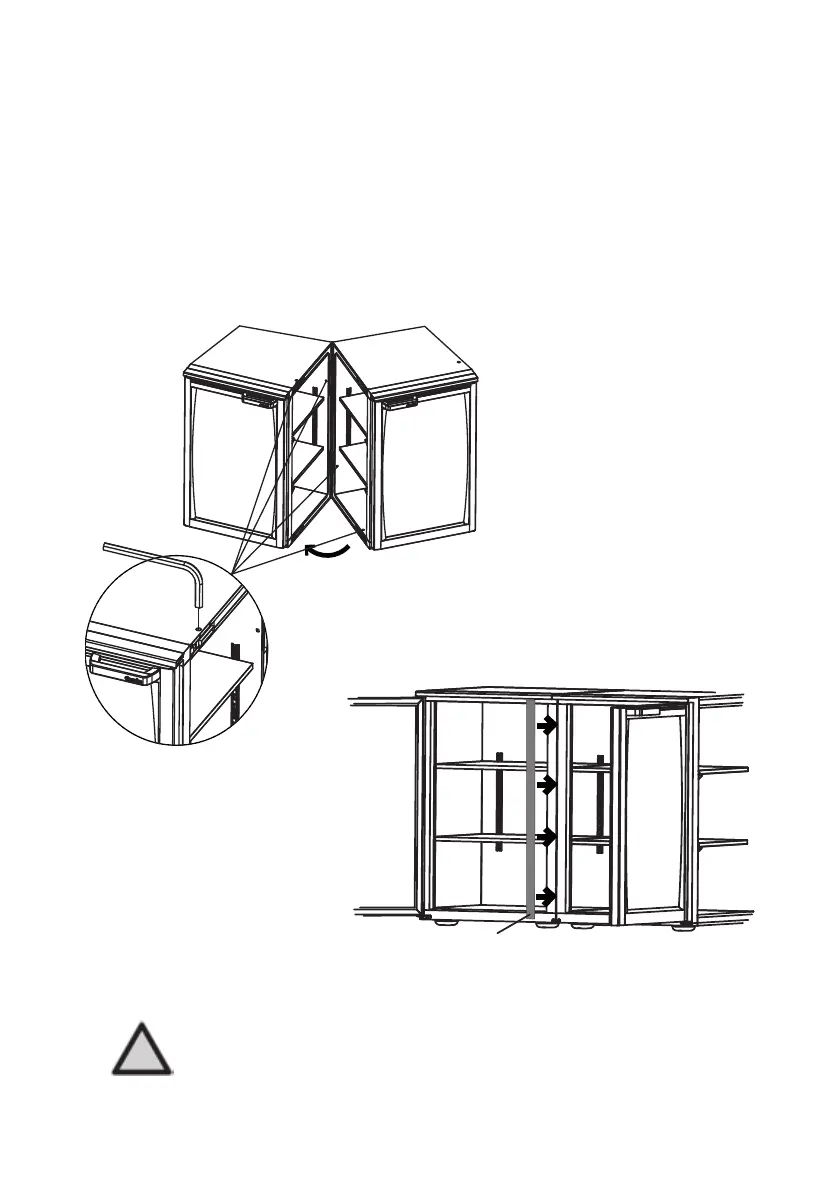

Linking segments
1 Slide the segments together.
2 Make sure the units are correctly connected.
3 Using a 6mm Allen key via the openings, rotate the 4 linking hooks until 2 clicks are heard.
4 Place the cover caps on the openings to prevent ingress of dirt.
5 In case of joint segments place rubber strip section into the seam between two segments.
