Reference SL Articulator and Face Bow Systems

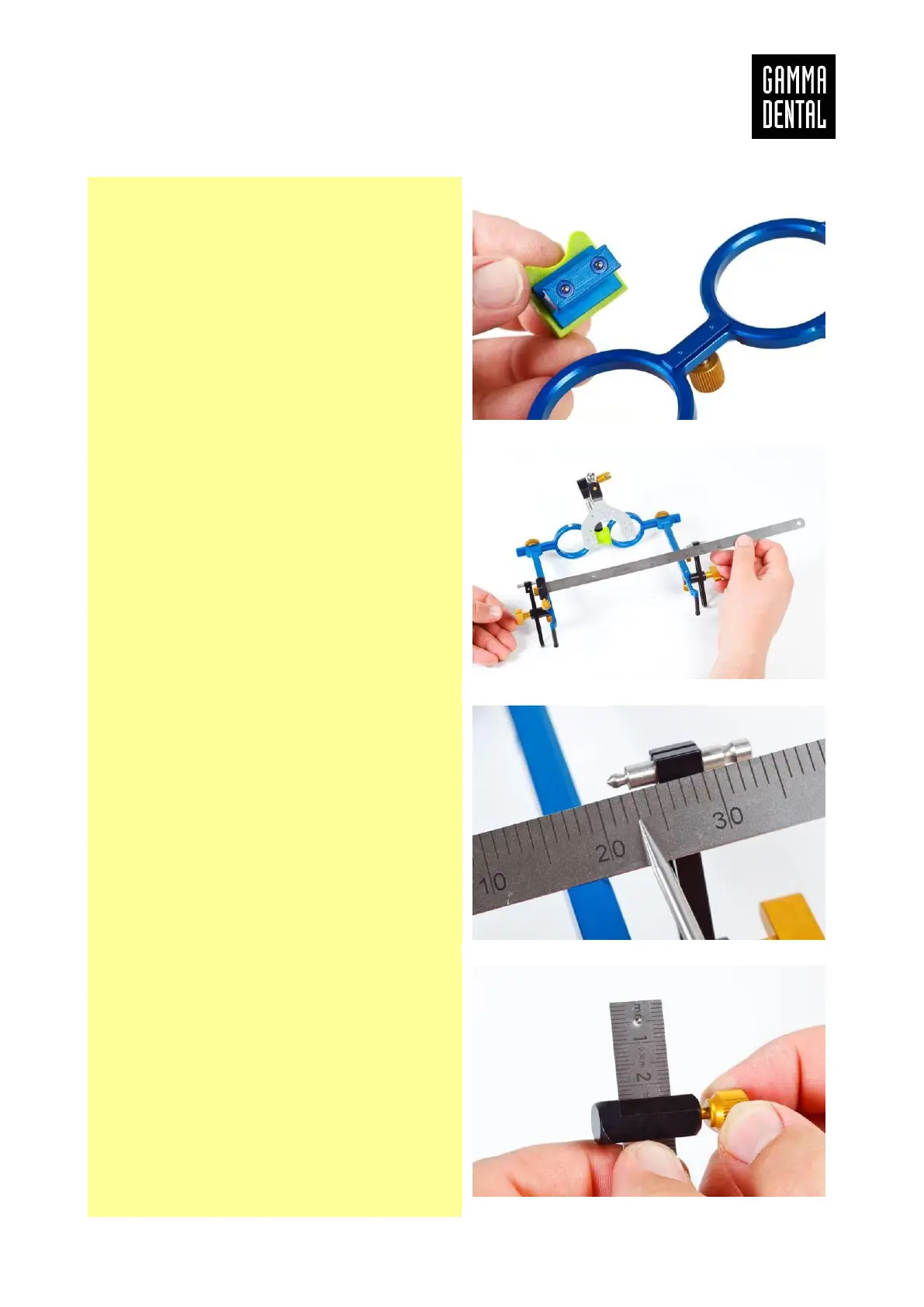

Before inserting the face bow on the transfer
stand, the nasion support of the Condylograph
comfort must be removed.
Centering the model in the articulator:
The slide of the distance ruler must be moved
completely to the end and then fixed. Insert the
ruler on one side by attaching the slot of the
ruler onto the corresponding needle of the axis
indicator holder. Now you can read the dis-
tance to the other side on the magnified 2 mm
scale of the ruler.
It is important to use the correct measuring
edge.
According to the measured value, the slide on
the ruler has to be positioned exactly on the 1
mm scale and then fixed there.
