Floor Stand Leg Assembly

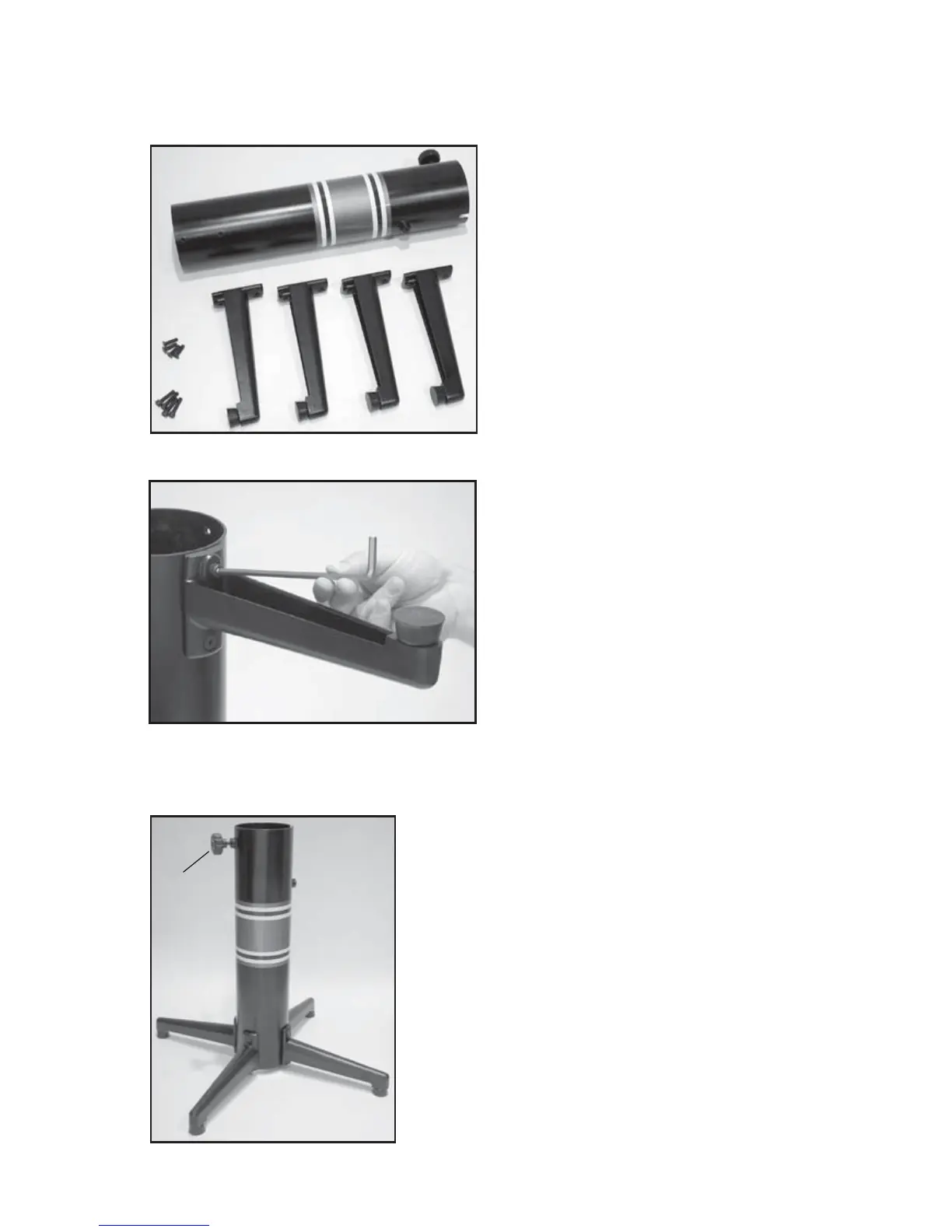

The stringing machine uses a four leg f oor
stand design. The legs must be assembled
to the Lower Column before use. Remove all
parts from the shipping carton to conf rm that
contents match the list of parts on Page 4.
Floor Stand Leg Assembly (Cont.)
Align the holes in the Leg Flange with the
matching holes in the Lower Column. Se-
cure the leg with one M8 FLAT HEAD screw
through the upper hole, and one M8 socket
head cap screw through the bottom hole.
Install one 8mm nut on each screw. Repeat
this procedure for the three remaining legs.
ASSEMBLY INSTRUCTIONS
Floor Stand Leg Assembly (Cont.)
To complete the Floor Stand, screw the Height Adjustment
Locking Knob (“A”) into the side of the Lower Column.
The Locking Knob should not protrude beyond the inside
of the Lower Column at this time.
“A”
To Next Page
