ASSEMBLY INSTRUCTIONS

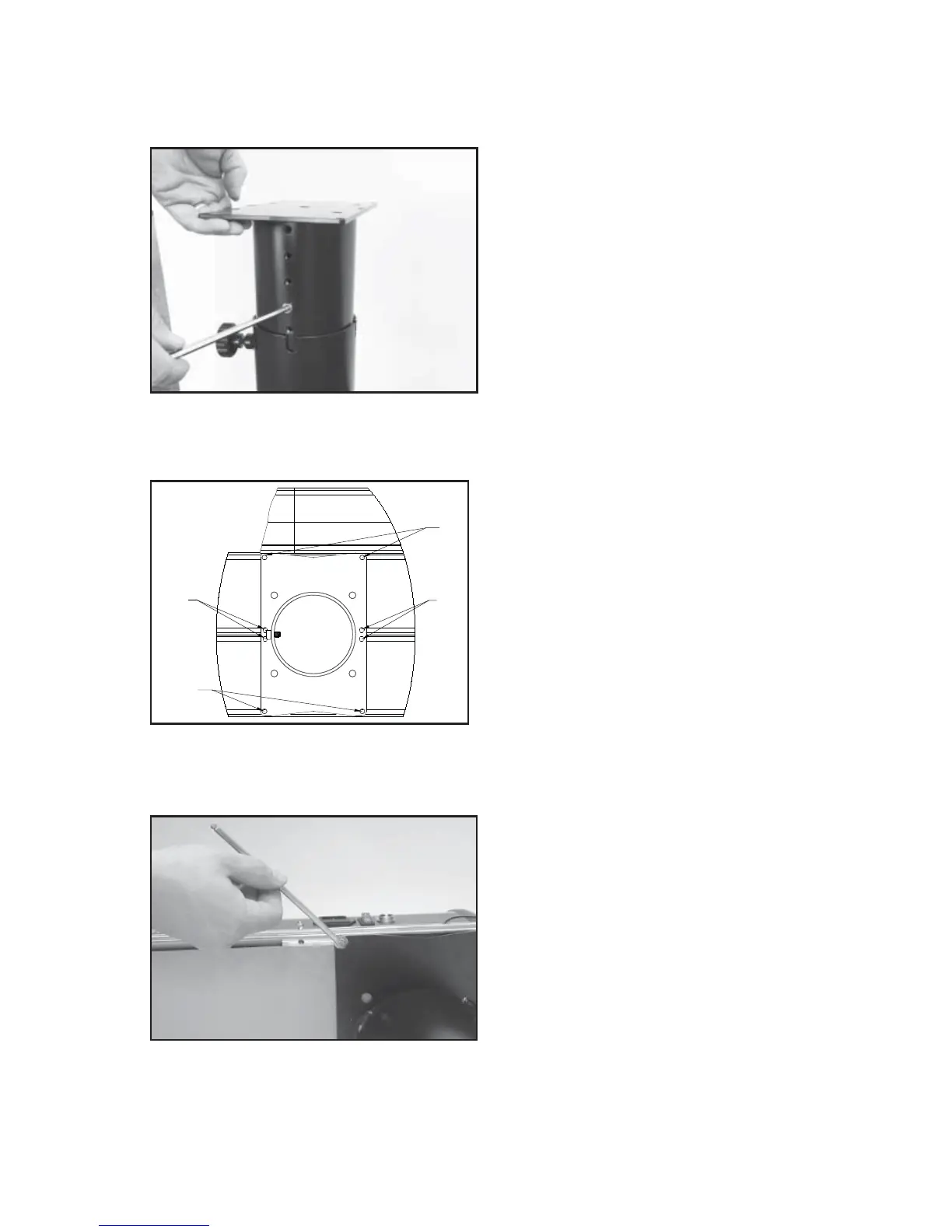

Floor Stand Height Adjustment
The height of the machine is adjustable from
39” to 46” in approximate 1” increments. To
change the height, remove the socket head
cap screw from its current position and place
it in the appropriate hole to set the desired
height of the machine. Be sure to thread the
screw completely into the Upper Column so
the head of the cap screw rests in the notch
of the Lower Column.
Floor Stand Upper Column Installa-
tion (cont.)
Secure the f ange to the base of the machine
with the six M6 cap screws packed with the
Floor Stand.
Caution: When securing the screws to
the slide brackets cross threading or over
tightening may damage the threads in the
slide bracket or cause the threads to strip out.
Floor Stand Upper Column Installation
With the height adjustment cap screw on
the Upper Column facing the Brake Lever
and String Length Meter, align the six holes
marked “X” in the Upper Column f ange with
the threaded holes in the slide brackets of the
Machine Base.
Note: If upper column fl ange is different
from the one pictured, follow the instruc-
tions that were included with the fl oor
stand.
"X
"X"
"X"
"X"
To Next Page
