ASSEMBLY INSTRUCTIONS

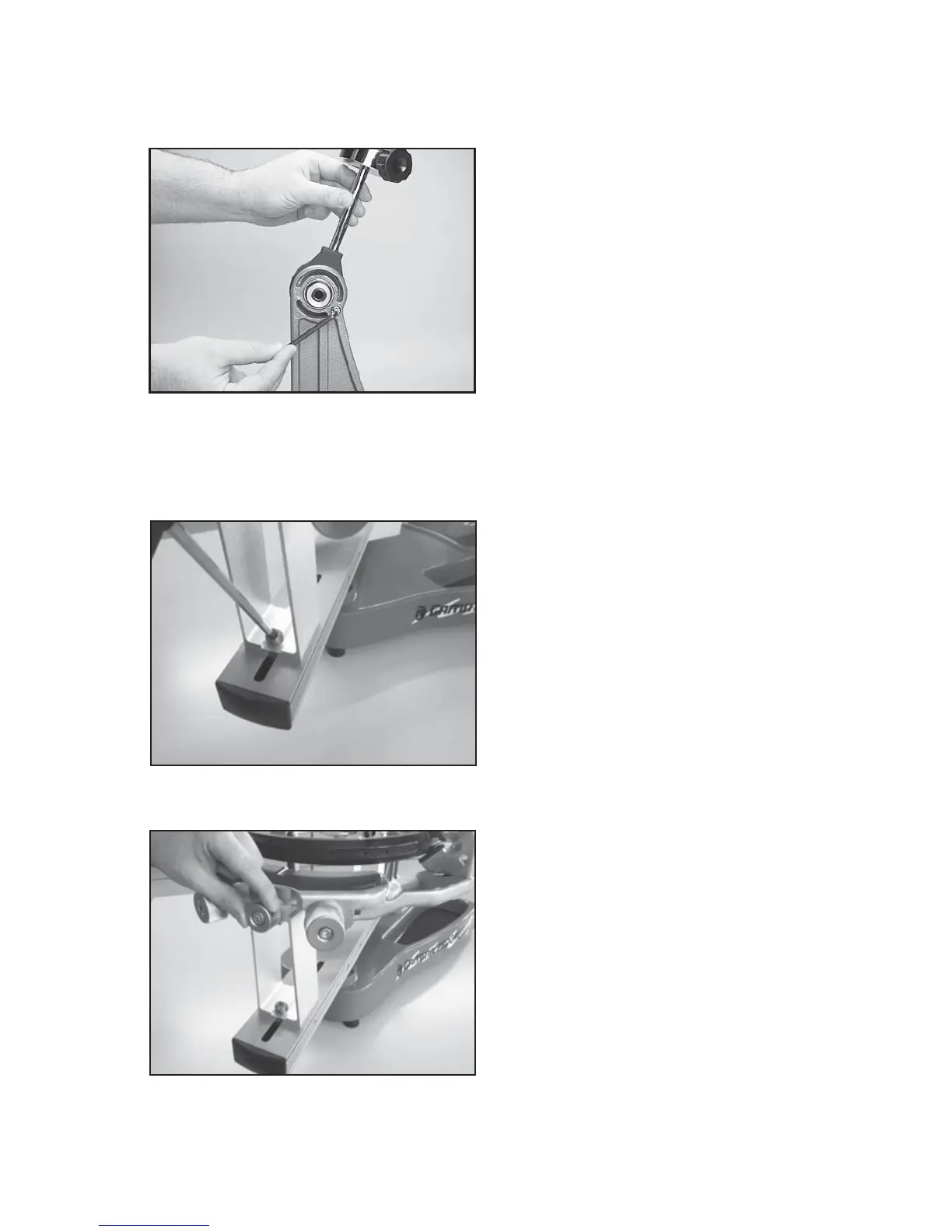

Engaging the Drop Weight Bar Stop
The stringing machine is shipped with the
drop weight bar in the horizontal position.
To prevent racquet damage during stringing,
the bar stop must be engaged.
Remove the machine base from the shipping
carton being careful to avoid lifting by the
plastic cover.
Hold the drop weight bar in the vertical posi-
tion as shown while turning the stop screw
clockwise with the supplied 5mm hex wrench.
MOUNTING THE FRAME
Adjusting the Frame Support Posts
Place the racquet frame over the center
posts and onto the frame support. Loosen the
lever lock bolt on one support post. Slide the
post outward until the center support of the
racquet support slide is positioned near the
inside surface of the racquet frame. Securely
tighten the lever lock bolt.
Adjust the opposite post using the same
procedure.
Caution: To avoid racquet damage, the
center posts should not contact the racquet
prior to fi xing the support posts.
Tightening the Center Supports
Tighten the Center Supports by turning
the adjustment knob clockwise until slight
resistance is felt.
Caution: Overtightening the Center Supports
may cause racquet damage.
