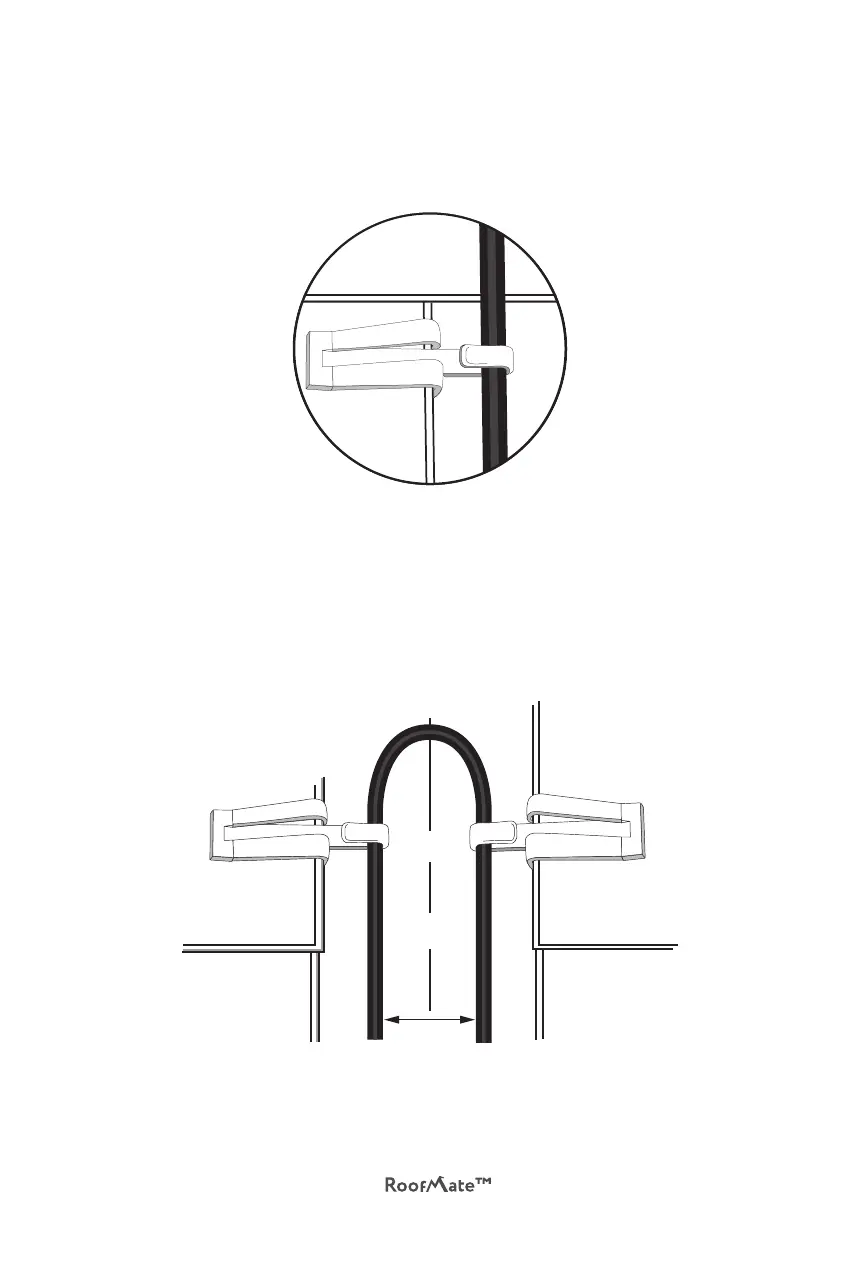

Figure 16. Fixing clamps to the roof next to the attic window.
Figure 17. Clamp fastening along the gutter.
Fig. 16 shows how to use a clip to secure the cable when it extends vertically
around the attic window.
The triangles of the cable are mounted near the attic windows in the same way
as shown in Figures 12, 13 and 14. If the attic window is high on the roof (and ca-
ble triangles are higher than 3-feet), then the clamps should be fastened every
3-feet along the height of the triangle, as shown in Figure 15.
Fig. 17 – The use of clamps for securing a cable in a gutter.
