Gantner GAT ACCESS 6100 User Manual

Nominal voltage: 12/24 VDC (SELV - safety extra-low
voltage)
Permitted input voltage: 10 to 28 VDC
Aver. power consumption: 3 W
Data storage: Internal EEPROM memory for
configuring and booking memory,
data preservation min. 10 years
Internal clock: Data preservation approx. 12 h
(Gold-Cap)
Reader type: See order information
Frequency of reading field: 13.56 MHz
Control elements: - 4 function keys
- RFID reader
Display elements: - Full graphics monochrome display
(LCD) with white LED background
lighting, resolution 128 x 64 pixels,
visible area 50 x 25 mm
- RFID reader (illuminated)
- Acoustic signal
- 4-segment LED display with
different colours
Host interface: Ethernet 10/100 MBit/s
Signal input: 1 x optocoupler (configurable)
- Input voltage: 0 to 30 VDC
ULow < 2 VDC, UHigh > 6 VDC
- Input current: 4.5 mA
Signal output: 1 x relay (configurable NO/NC)
- Switching voltage: max. 30 VAC/DC
- Continuous current: max. 2 A
- Switching power: max. 60 VA
Connection terminals: 0.5 to 1.5 mm
2
Housing material: - Upper part: plastic PMMA
- Back part: plastic PC-ABS
Dimensions: 93 x 107 x 33 mm
Permitted ambient temperature: -10 to +55°C
Storage temperature: -20 to +70°C
Relative humidity: 20 to 80%, non-condensing
Protection type: IP 54
Protection class: III
Weight: 0.2 kg
Environment class
based on VDS 2110: II (conditions in indoor areas)
2
www.gantner.com
Technical data

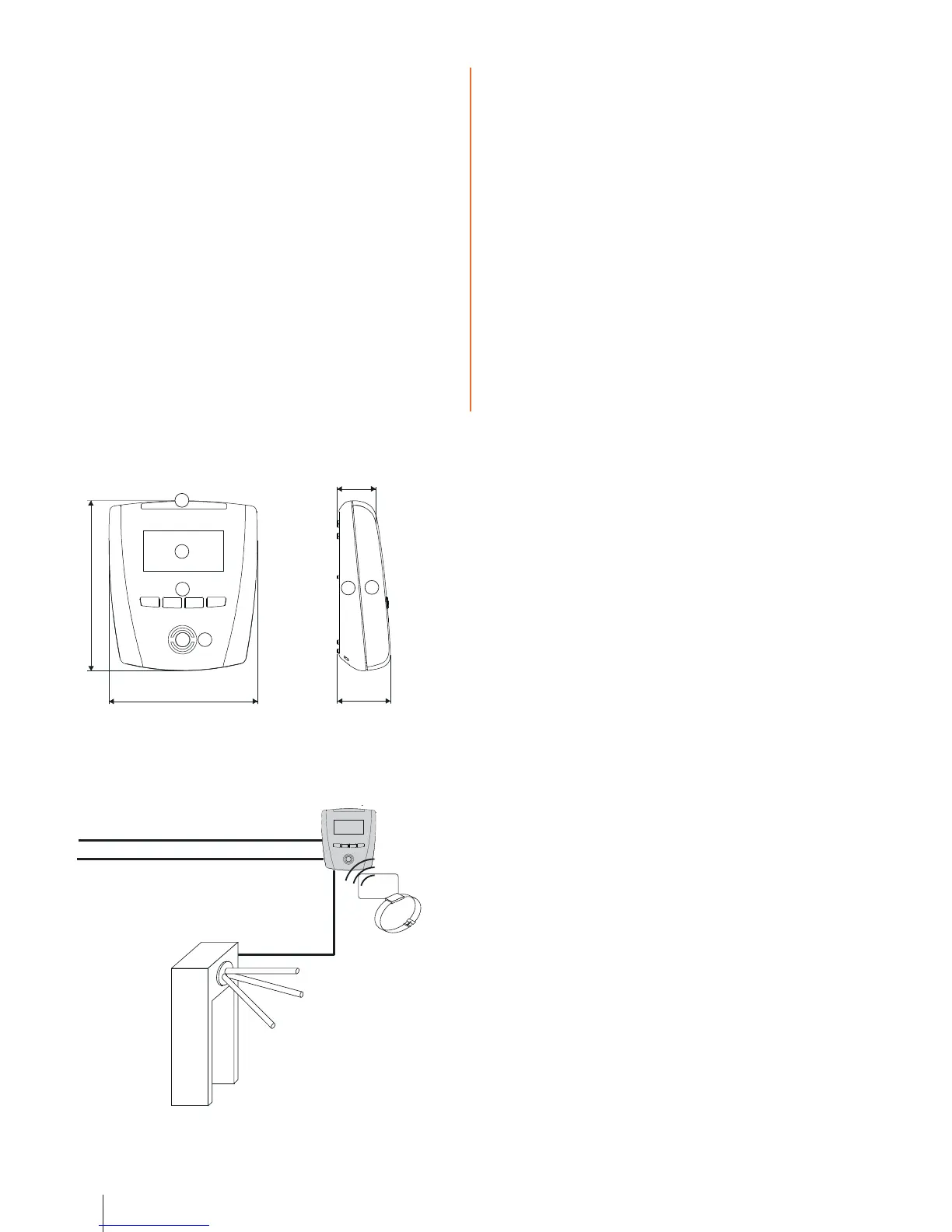

93 mm (3.66”)
33 mm (1.3”)
24 mm (0.94”)
107 mm (4.2”)
2
3
4
5
6
1
Typical application
Turnstile
RFID data carriers
GAT Access 6100
Power supply
Network
Dimensions
1. 4-segment LED display
2. Monochrome display (LCD)
3. Function keys
4. Illuminated, round scan field
5. Device back part
6. Device upper part
Valid as from July 30
th
, 2013 • Technical data subject to modifications without notice!
DB_GAT-ACCESS6100--EN_11.indd • PartNo.: 860279
