Gap Diagnostic IIDTool - Page 10

10
IIDTool

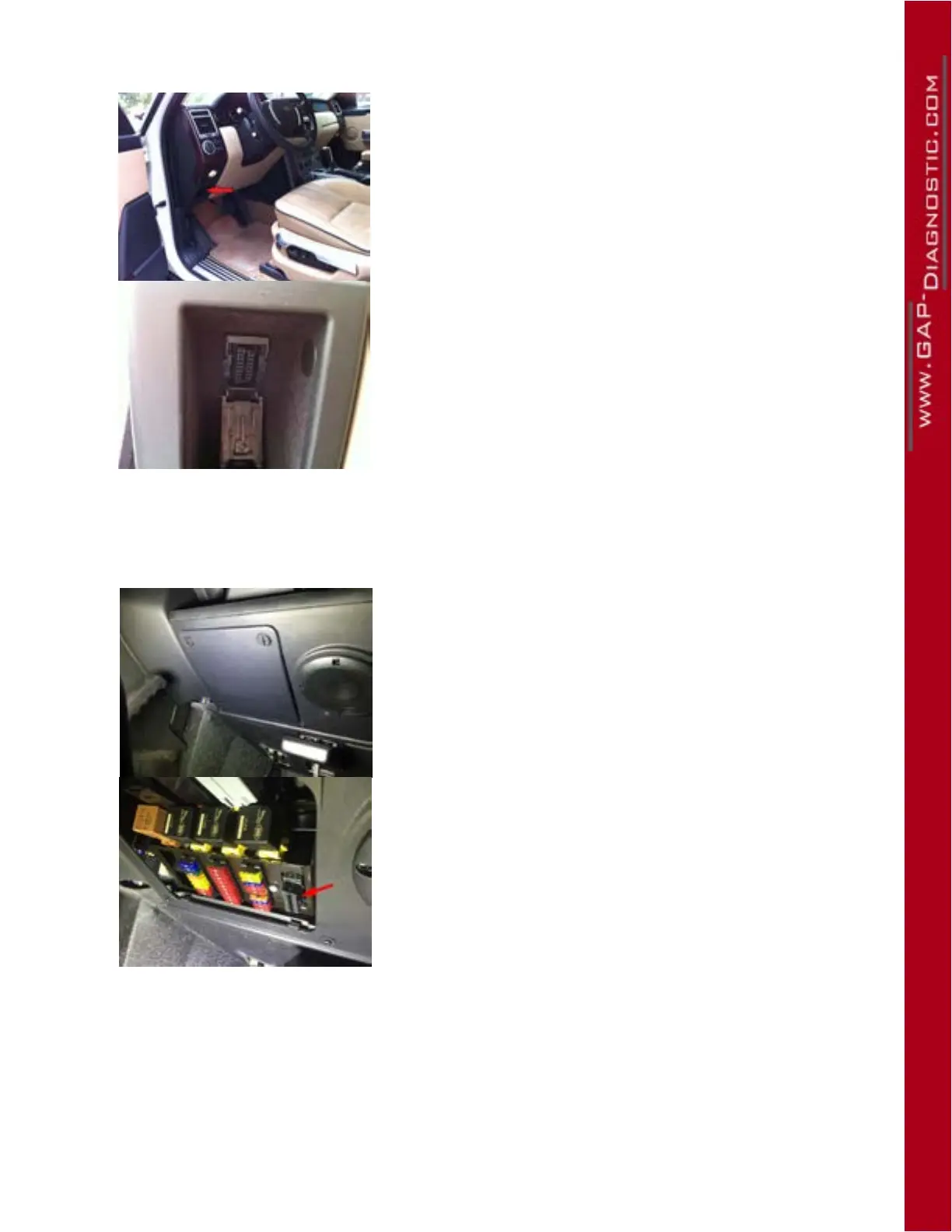

Figure 4. OBDII Connector L322 2002-2006
Figure 5. OBDII Connector L316
Range Rover 2002-2006
The OBDII port is located above the storage
compartment under the driver side headlight
switch. Lower hinged cover to access the
connector.
Defender
The OBDII port is located in the driver side
fuse block. The cover must be open to access
the connector.
GAP Diagnostic 05/08/2021 All Rights Reserved
Transfer of ownership guide,
