Gardena 1732 - Operation

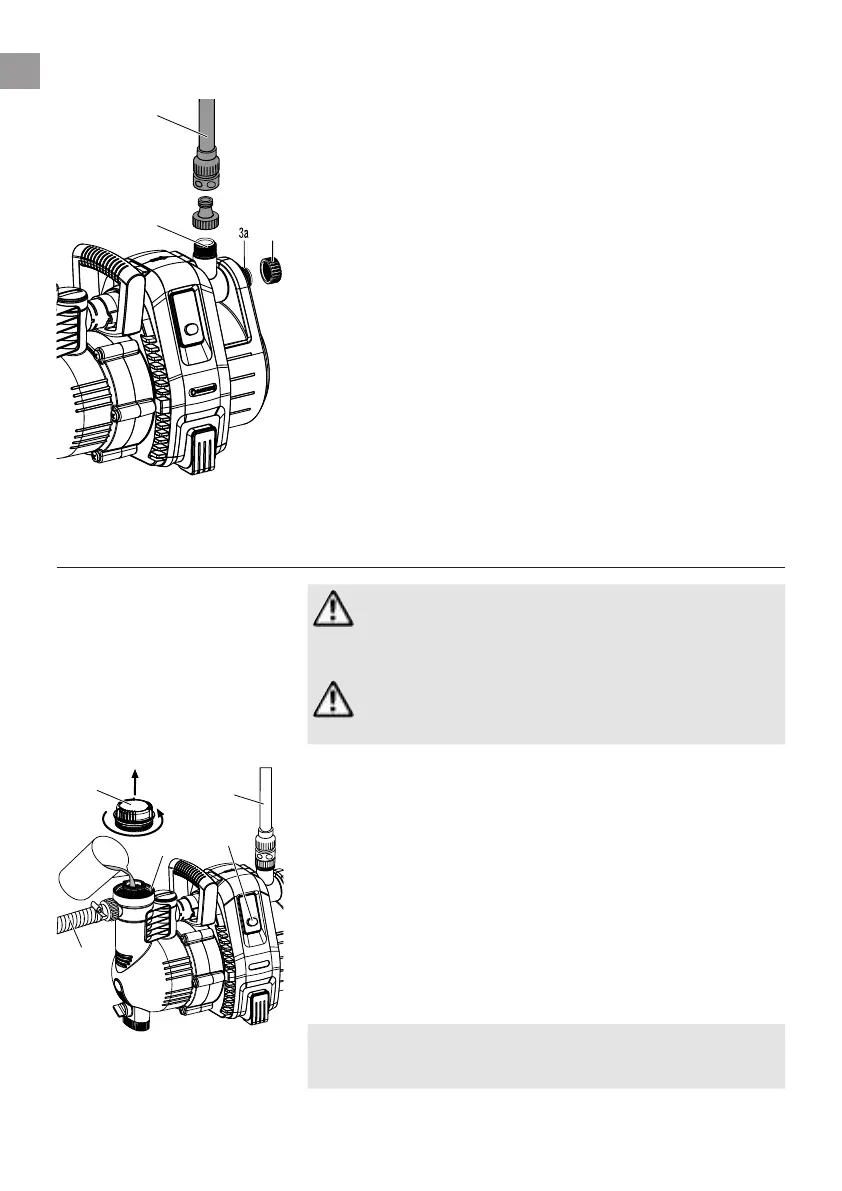

Connecting hose to
delivery side:
3
5
4z
The pumps have 2 connections
3
/
ß
3a
on the delivery side.
The pump connection not in use has to be closed by the cap
4
,
which can be unscrewed for connecting 2 hoses.
The pump connections
3
/
ß
3a
are equipped with a 33.3 mm (G 1")
thread which can be used to connect 13 mm (1/2"), 16 mm (5/8")
or 19 mm (3/4") hoses via the GARDENA hose connection system.
Optimised use of the pump capacity is achieved by connecting
19mm (3/4") hoses with e.g. GARDENA Pump Connection Set
Art.1752, or by connecting 25 mm (1") hoses with GARDENA
Quick Thread Coupling with female thread Art. 7109 / Quick
Coupling Hose Connector Art. 7103.
v Connect the pressure hose
5
to the connector on the delivery
side
3
/
ß
3a
.
If more than 2 hoses / accessories are connected simultaneously,
we recommend using the GARDENA 2- or 4-Channel Water
Distributor Art. 8193/8194, GARDENA Twin-Tap Connector
Art. 940 which can be screwed directly onto the connection
on the delivery side
3
/
ß
3a
.
4. Operation
Filling the pump:
1
6
7
8
5
DANGER! Electric shock!
Risk of injury due to electric shock.
v Disconnect from the mains before filling the
Garden Pump.
ATTENTION!
v Before each operation, slowly fill the pump with liquid
to be pumped until it overflows (approx. 2 to 3 l).
1. Open the cap
6
on the filler neck
7
by hand.
2. Fill the pump via the filler cap
7
to overflowing with
approx. 2 to 3 l of the liquid to be pumped.
3. Tighten the cap
6
of the filler cap
7
by hand (do not use pliers).
4. Open any shut-off valves in the delivery line (accessories,
water stop, etc.).
5. Drain remaining water in pressure hose
5
so that air can
escape during the suction process.
6. Switching on pump 4000/5: Lift and hold the delivery hose
5
at least 1 m vertically above the pump, press the On/Off
switch
8
(On/Off switch shines) and wait until the pump has
primed.
v If the pump does not deliver after approx. 5 minutes,
switch off the pump (press On/Off switch
8
)
(see 7. Trouble-Shooting).
