14
GB

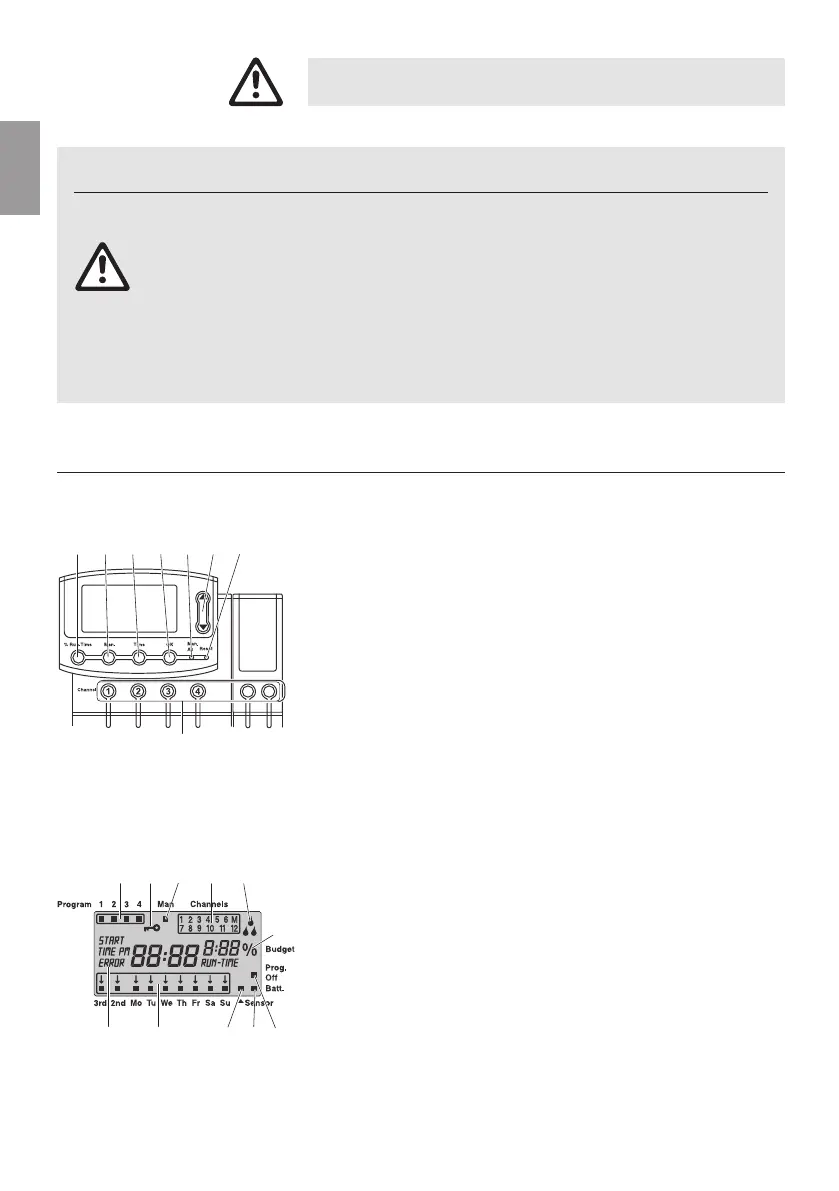

3. Function
1
% Run-Time key: Calls up the %Run Time function.
2
Man key: Opens /closes individual channels manually.
3
Time key: Displays the time.
4
OK-key: Confirms the settings you selected
using the ▲-▼ keys.
5
Man. All key: Opens /closes all the channels automatically
in sequence.
6
▲-▼ keys: For changing or advancing specified data
already entered (if you press and hold
down one of the ▲-▼ keys you can change
data in the quick run-through mode).
7
Reset key: Deletes all program data.
8
Channel key: Calls the channels.
9
Program Display:
Indicates which program of the particular channel the Watering
Controller is currently executing. If several channels are opened
at the same time, the program indicator is no longer displayed.
0
Key Lock:
To enable/disable the key lock, press the Man key and the
OK key simultaneously (the Reset key cannot be locked).
A
Manual Control Display:
The display shows Man when manual control is activated.
B
Channel Mode Display:
Modes: open, locked and program overlap.
C
Watering Display:
If a channel is just being opened, the drops on the watering
display flash alternately.
HI G F E
B C
D
9 0
5 72 3 41 6
8
A
The Watering Controller must only be used for controlling
24 V (AC) valves.
Please note
2. Safety Instructions
Watering Controller:
The Watering Controller must only
be operated with the 24-V (AC)
power supply unit provided.
v Protect the 24-V (AC) power supply unit
from moisture when connected.
The Watering Controller (without power supply
unit) is splash proof.
v Avoid, however, spraying the Watering
Controller directly with water.
To prevent loss of data if a power failure
occurs, only use a 9 V alkaline battery
IEC 6LR61 to buffer data. We recommend
using batteries manufactured by Duracell
and Energizer (do not use rechargeable
batteries).
Key assignment
Watering Controller display
