14
GB
Automatic operation:

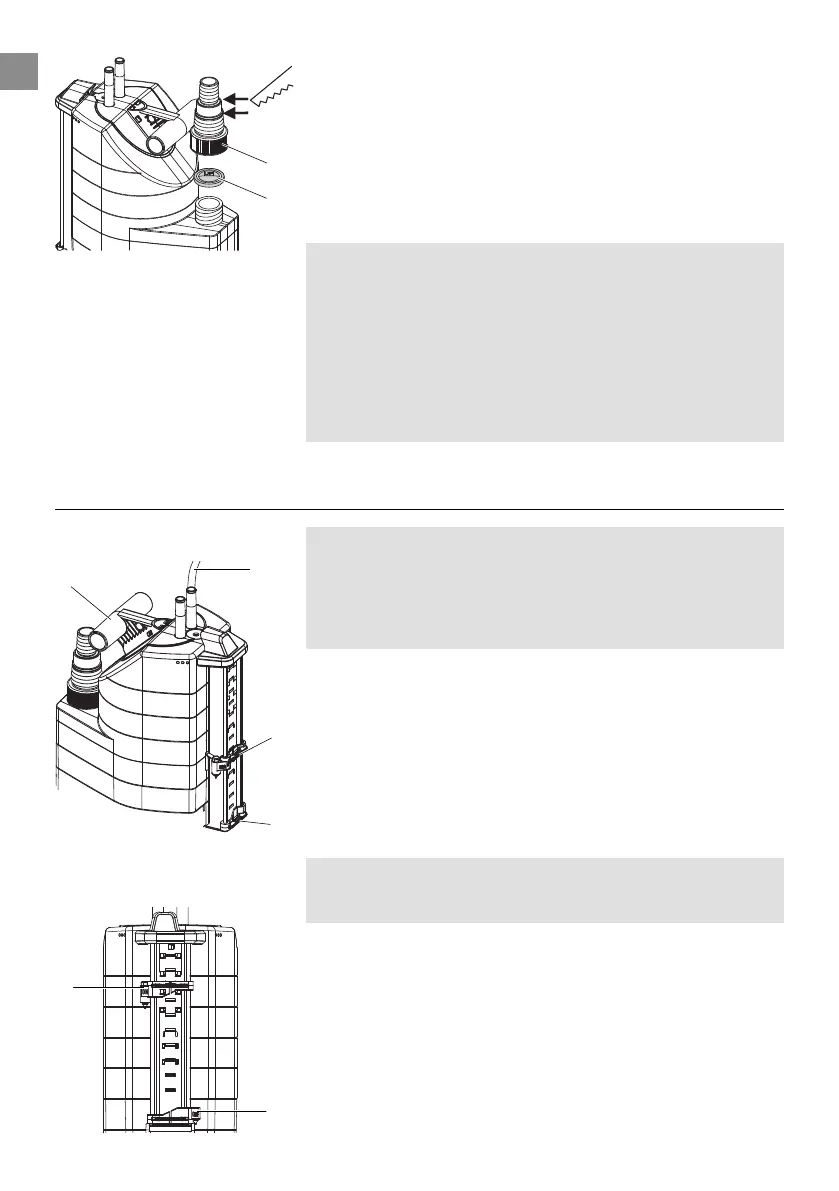

2. Only for the submersible pumps Art. No. 1783 / 1785:
Insert the non-return valve
z
V
supplied into the universal
connector
2
with the word UP pointing upwards.
3. Screw the universal fitting
2
onto the pump.
4. Connect the hose to the universal fitting
2
.
We recommend 38 mm (1
¹⁄₂
"
) 25 mm (1
"
) hoses, in addition
to be fixed with a GARDENA Hose Clamps Art. No. 7192
(for 25 mm) and Art. No. 7193 (for 38 mm).
Only for the submersible pumps Art. No. 1783 / 1785:
For flat suction we recommend using a 13 mm (
¹⁄₂
"
) or 16 mm
(
⁵⁄₈
"
) hose. The non-return valve
z
V
prevents the water flowing
back through the hose. The max. delivery height will only be
achieved without the non-return valve.
Only for 13 mm (
¹⁄₂
"
) hose:
The universal fitting
2
can also be equipped with a GARDENA
Regulator Valve Art. No. 977 so that the contents of the out-
let line do not flow back through the pump after pumping. The
Regulator Valve can be ordered from your GARDENA dealer.
4. Operation
If the water level reaches the ON sensor
3
, the pump auto-
matically switches on. Depending on water volume and
environment, it can take 1 to 3 minutes until pumping out
commences. As soon as the water level falls below the OFF
sensor
4
, the pump is automatically switched off (the pump
continues to run for approx. 10 seconds).
1. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle
5
to immerse the pump in a well or shaft.
2. Plug the power cable
6
into a mains socket.
The switch-on and switch-off height (see 8. Technical Data) can
be adjusted for automatic mode. The relevant sensor pin defines
the height of the water level.
Set switch-on height ON:
v Push ON sensor
3
to the required switch-on height.
Switch-on height of the pump in automatic mode.
Set switch-off height OFF:
v Push OFF sensor
4
to the required switch-off height.
Switch-off height of the pump in automatic mode.
4
3
Adjust switch-on and
switch-off height:
2
z
V
4
3
6
5
