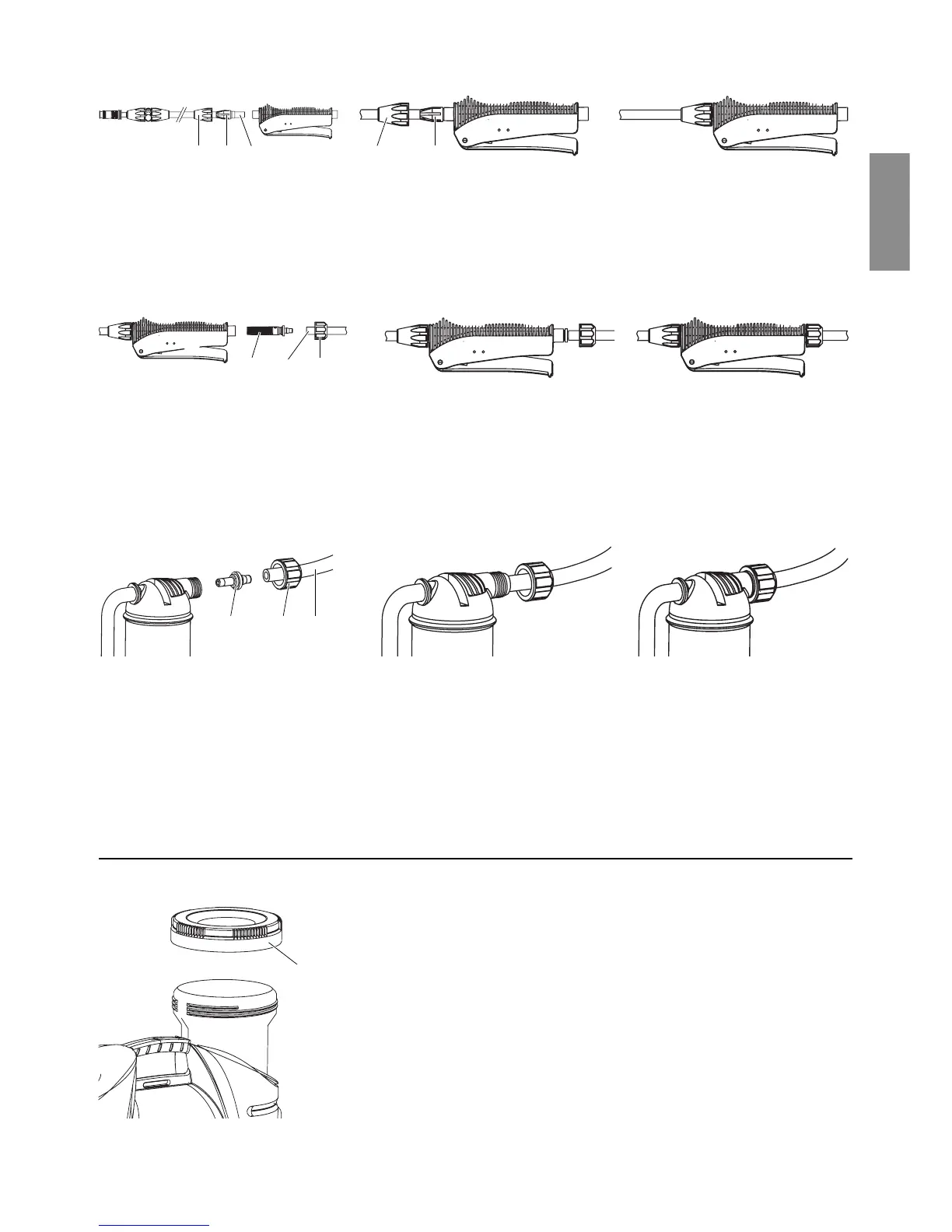

Attaching the sprayer head to the handle:
1. Push the sprayer head
9
all the way into the sprayer handle
A
.
2. Push the sprayer lock
0
all the way into the sprayer handle
A
.
3. Screw the sprayer head
9
onto the sprayer handle
A
by hand
using the union nut
8
(do not use pliers).
Attaching the sprayer handle to the hose:
4. Push the union nut
B
onto the hose
C
.
5. Push the filter
D
into the sprayer handle
A
.
6. Push the hose
C
onto the filter
D
.
7. Screw the hose
C
onto the sprayer handle
A
by hand using
the union nut
B
(do not use pliers).
Attaching the hose to the pump:
8. Push the union nut
B
onto the hose
C
.
9. Push the connector
E
into the pump
F
.
10. Push the hose
C
onto the connector
E
.
11. Screw the hose
C
onto the pump
F
by hand using the union
nut
B
(do not use pliers).
4. Operation
1. Thoroughly stir the product you are going to use.
2. Unscrew the tank cap
G
.
3. Pour in the product up to the highest mark (12 litres).
Always comply with the precautionary measures and correct
dosage specified by the product manufacturer.
4. Fit the tank cap
G
and screw tight by hand (do not use pliers).
Fertilisation with GARDENA Universal Liquid Fertiliser
Art. 8303 for outdoor use:
For sheet fertilisation and young plants:
1/2 cover cap on approx. 5 l spraying liquid
For root fertilisation:
1 cover cap on approx. 5 l spraying liquid
Attaching the sprayer head:
Filling the tank:
8 0
A
B
C
D
A
F
E
B
C
G
8
0 9
