Gardena EasyCut 48 PLUS User Manual

Connecting the Hedge
Trimmer:
Fitting the front handle:
3
2
1
2
3
5
4
6
7
8
GB
13

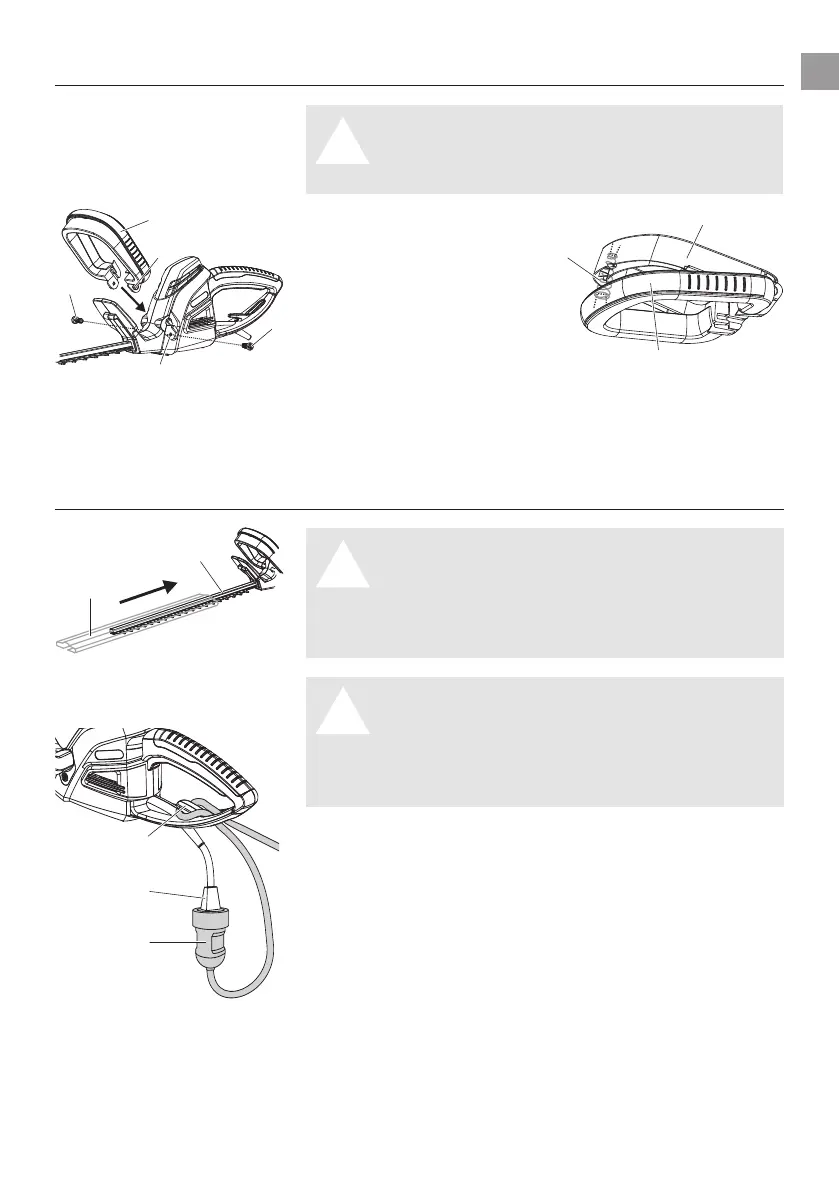

3. Assembly
ATTENTION ! Safety guard!
A
The guide handle
1
is only a safety guard for the
2-handed trigger when the spring
z
S
is correctly
inserted.
1. Insert the wide side of the
spring
z
S
into the lower
casing
z
a
and the lower side
into the upper casing
b
and
close the guide handle
1
.
2. Push the guide handle
1
over
the slot in the hedge trimmer
and ensure it is fully in place
and the handle hole
2
is lined
up with the threaded hole
2
.
3. Secure the guide handle
1
to the
hedge trimmer using the two screws
3
.
4. Operation
DANGER ! Risk of physical injury!
A
V Always disconnect the extension cable
7
from
the mains and slide the protective cover
4
over
the trimmer blade
5
before connecting.
V Never take hold of the protective cover
4
when
connecting the hedge trimmer.
DANGER ! Risk of electric shock!
A
To avoid damage to the the mains cord
6
the
extension cable
7
must be inserted into the cable
lock
8
.
V Always insert the extension cable
7
into the
cable lock
8
.
1. Loop the extension cable
7
,
insert the loop into the cable
lock
8
and pull tight.
2. Insert the plug of the mains cord
6
into the socket of the
extension cable
7
.
3. Plug the extension cable
7
into a 230 V mains power supply.
a
z
S
b
