Gardena Smart Irrigation Control User Manual

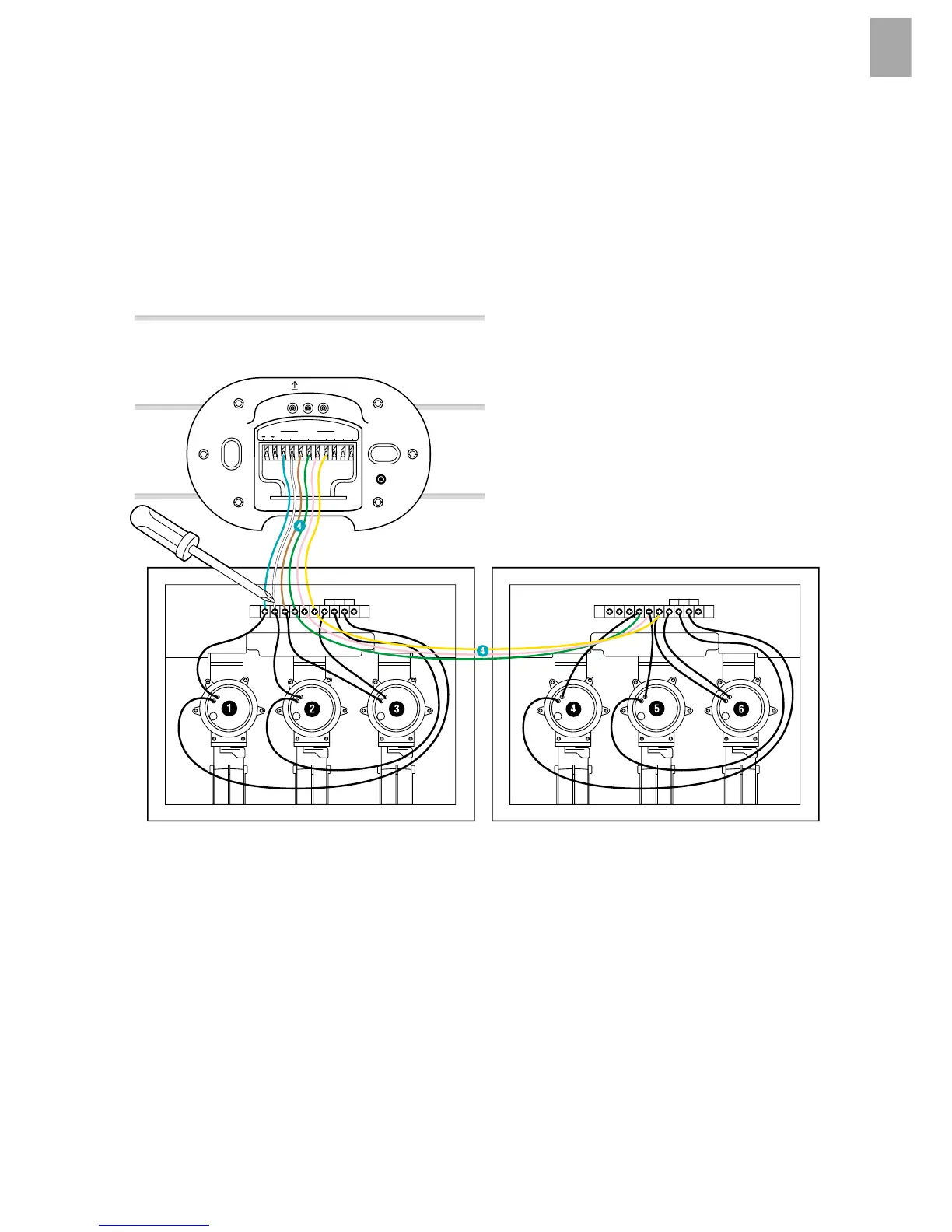

To connect the Valve Box to the Irrigation Control:
Tip: Press down the signal cable terminal with your index finger, screwdriver
or ballpoint pen to connect the cables.
With the GARDENA Connection Cable Art. 1280 you can connect
up to 6 valves with the Irrigation Control.
$
123456CCCC 123456CCCC
24 VAC
VALVES
S/N: 00000000
TOP
RESET 5s
MASTER
123456CCM
v Connect the signal cable terminal 1 of the Valve Box to the signal cable
terminal VALVES 1 of the Irrigation Control.
v Connect the signal cable terminal 2 of the Valve Box to the signal cable
terminal VALVES 2 of the Irrigation Control.
v Connect the signal cable terminal 3 of the Valve Box to the signal cable
terminal VALVES 3 of the Irrigation Control.
13
EN

Gardena Smart Irrigation Control Specifications

General

Compatible with	Gardena Smart System
Zones	Up to 6
Watering Cycles per Day	Up to 6 per zone
Frost Alert	Yes
Waterproof Rating	IPX4
App Control	Yes
Watering Duration	1 min to 10 hours
Smart Home Compatibility	Amazon Alexa
Operating Temperature	50°C
