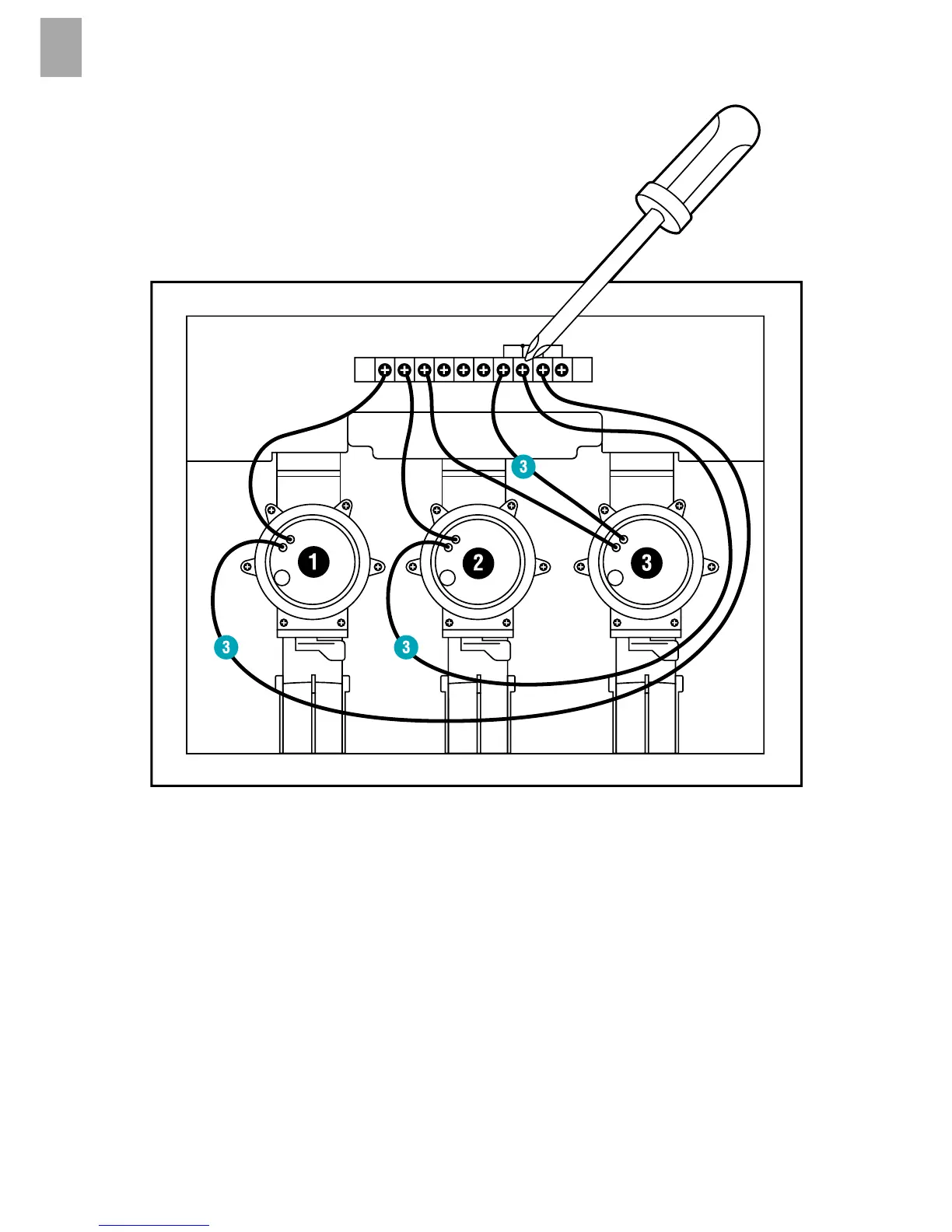

v Connect the other cable of the valve V1 to a signal cable terminal C of
the Valve Box.
(All 4 signal cable terminals C are connected to each other and equivalent).
v Connect the other cable of the valve V2 to a signal cable terminal C of
the Valve Box.
v Connect the other cable of the valve V3 to a signal cable terminal C of
the Valve Box.
