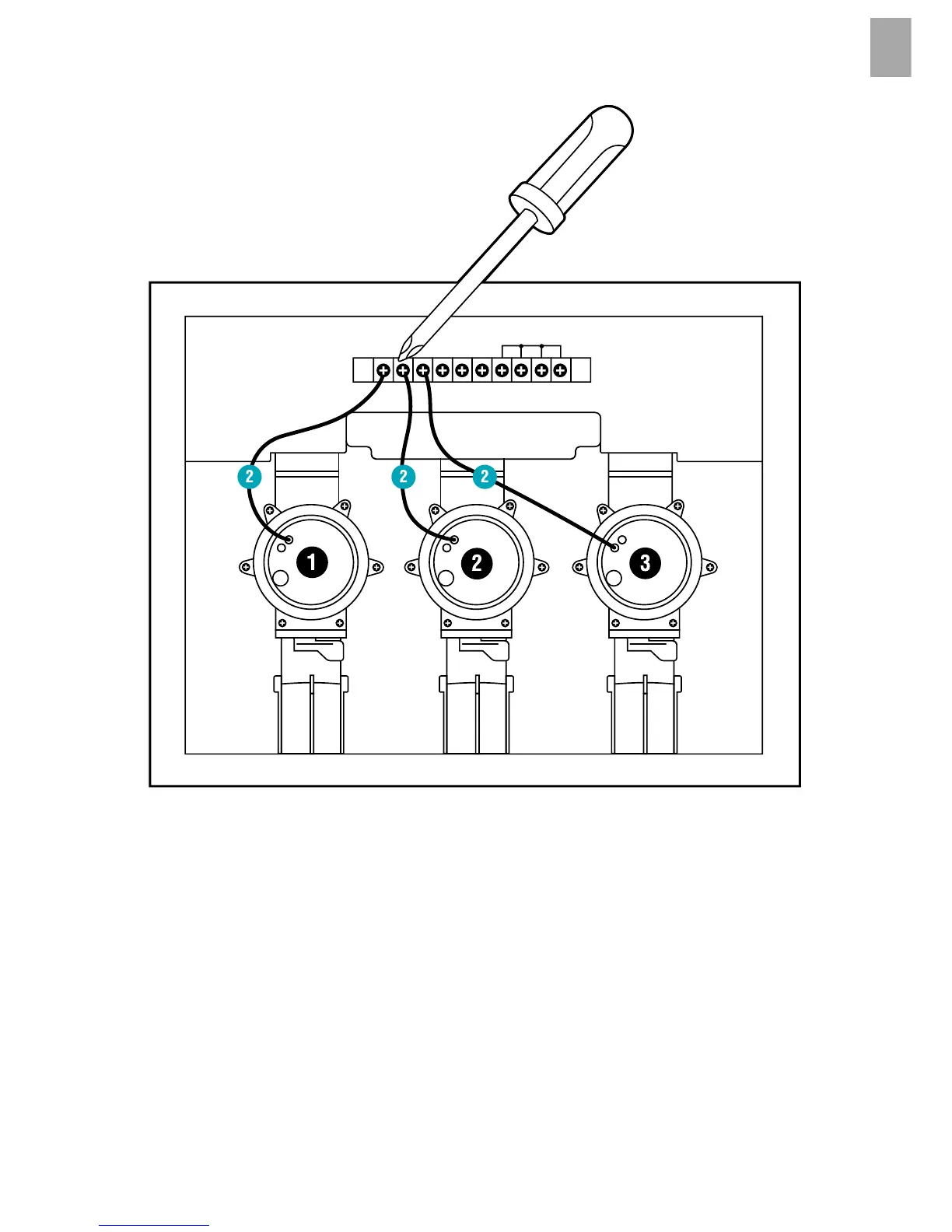

v Connect a cable of the valve V1 to the signal cable terminal 1 of the
Valve Box.
v Connect a cable of the valve V2 to the signal cable terminal 2 of the
Valve Box.
v Connect a cable of the valve V3 to the signal cable terminal 4 of the
Valve Box.
