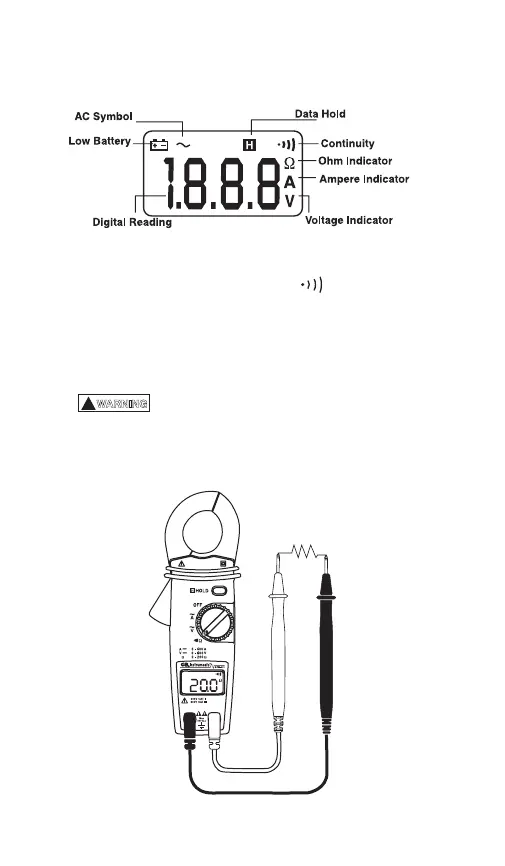

3.1 Instrument Familiarization
Symbol Denition
3.2 Measuring Resistance
Switch the function selector to Ω range.
Connect the red test lead to the red input jack and the
black lead to the black input jack.
Connect tip of the test leads to the points where the
value of the resistance is needed.
Read the result from the LCD panel.
!
WARNING
When taking measurements from a circuit,
make sure the power is off and all capacitors
are discharged.
