Instruction Manual
Top & Bottom Loading Arms
E2110, E2112, E2022, E2025
E2033, E2304, E2573, E2123,
E2313, E2121
- 5 -
3.4 Main Components – Bottom Loading
Refer to Figures 3 and 4 in Section 3.5
1.
The stand post carries the loading arm. If several loading arms are
standing in a row, the stand post of each loading arm has a different height
to enable you to cross the hoses without collision.
2.
The intermediate tube carries the parking device.
3.
The F-Length provides reach in the horizontal range.
4.
The A-Length provides reach in the horizontal and vertical range.
5.
The B-Length is connected to the tank or vessel.
6.
Swivel joints connect piping and elbows allowing the loading arm to
articulate while maintaining a pressure tight seal.
7.
The spring cylinder balances the A-length and provides assisted
movement of the loading arm.
8.
The vent connection is used to vent the loader while filling it with product
or to accelerate draining for maintenance.
9.
Use the handle to move the loading arm.
10.
The coupler of the loading arm connects to the adapter at the tank or
vessel.

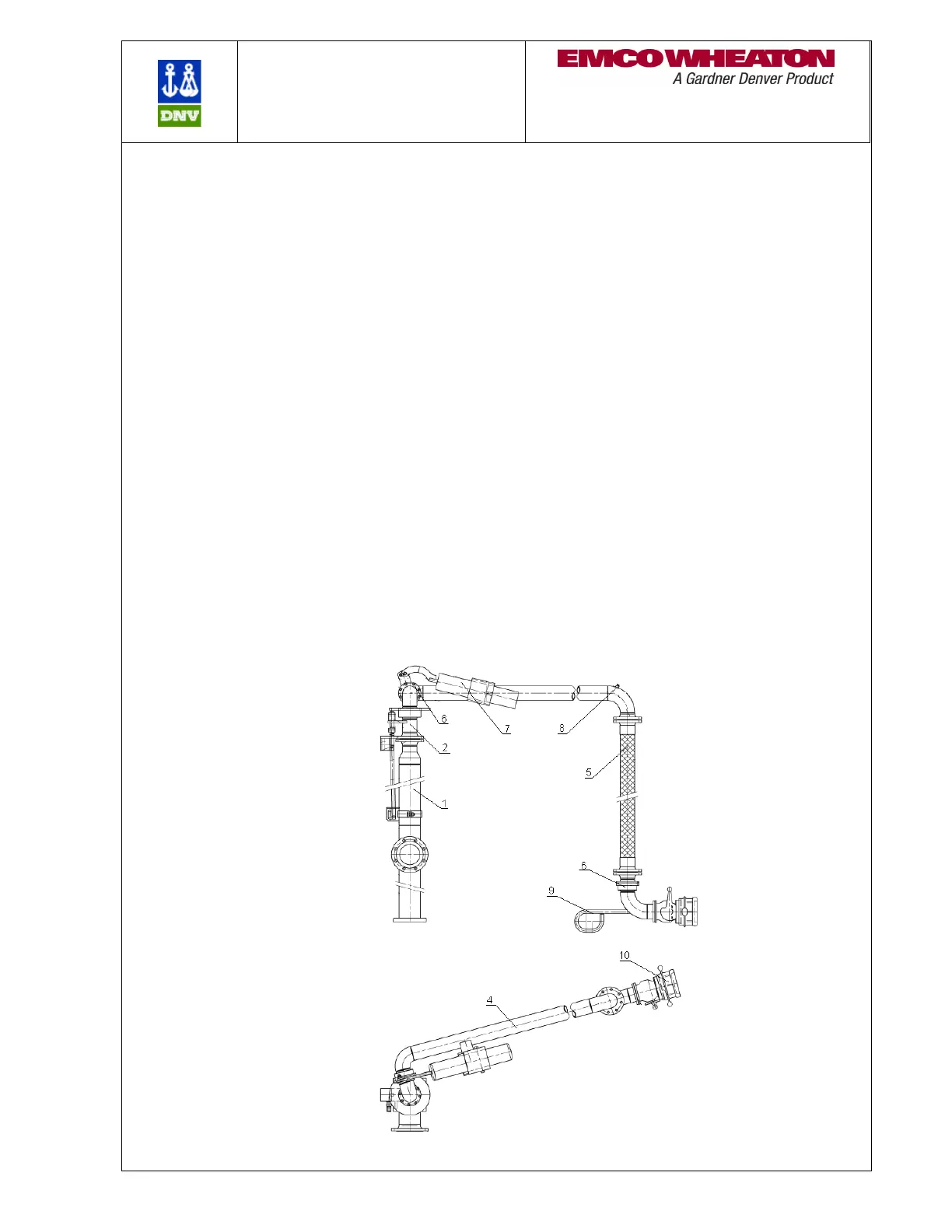

3.5 Survey Drawing
(Model E2304 shown)
Figure 3
