Models 5843, 5844, 5843S and 5844S
RS232 or TTL
2-
6
2.2
LOOP OPERATION - MASTER/SLAVE CONFIGURATION
NOTE
Before constructing a loop network, be sure that the software protocol of the Master is capable of managing
the receipt of its ow
n, echoed transmission. If it cannot, then use Point-to-Point configurations only between
devices in an "optical bus" network approach.
This configuration supports a system that requires more than two IED’s to be communicating. In a
Master/Slave loop system, one IED acts as a Master at all times and addresses or "polls" each of the other
connected IED’s individually. Each Slave receives the same transmission from the Master IED but only
responds when it recognizes its address in the polling message.
235
Master
TR
COM
ON
OFF
23 5
Slave
TR
COM
ON
OFF
23 5
Slave
TR
COM
ON
OFF
23 5
Slave
TR
COM
ON
OFF

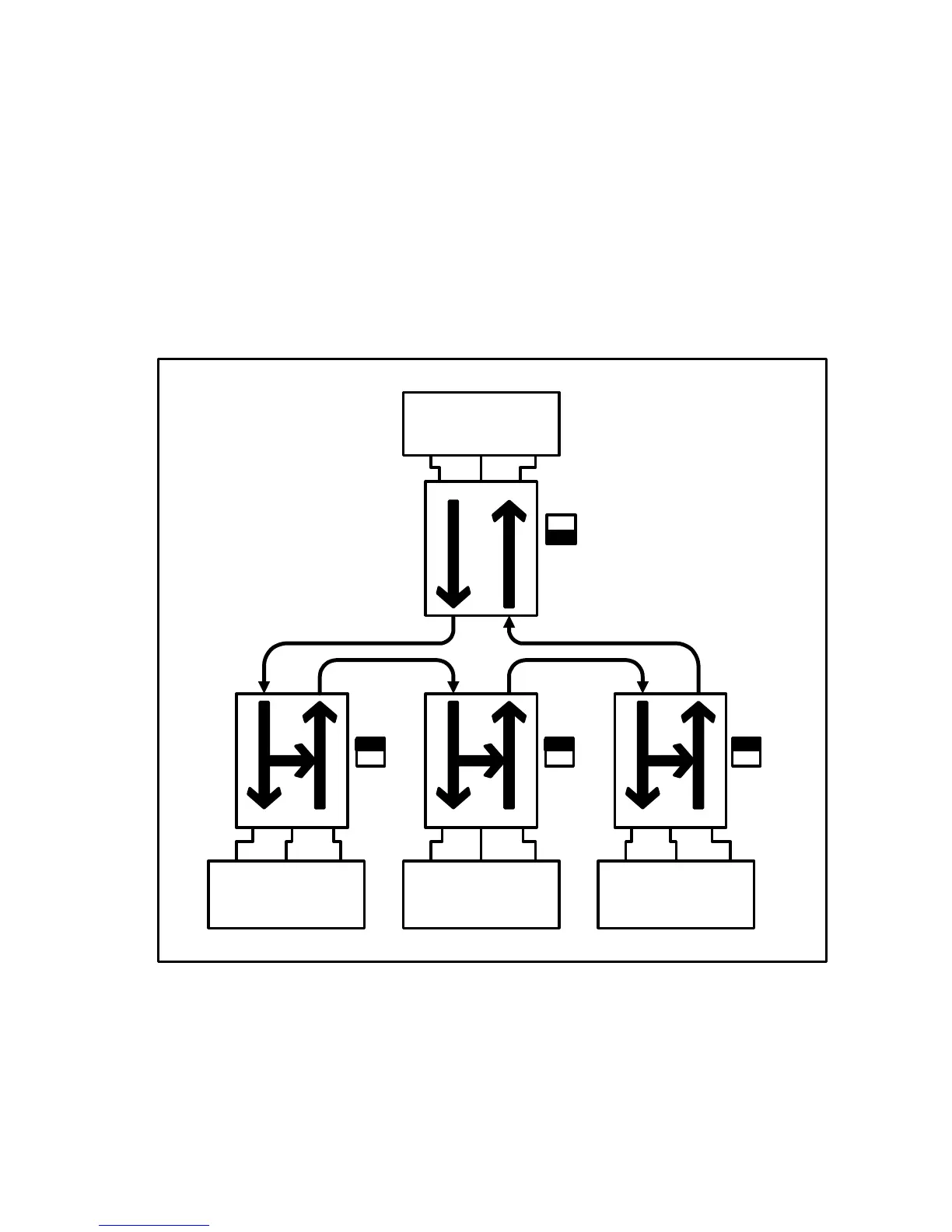

FIGURE 8. Master/Slave Loop Configuration
The Master must have its Repeat Switch in the "OFF" position. When it transmits a request out its T optical
port, it will receive the echo of its request at its R optical port. This request has gone around the loop, and has
been repeated by each Slave in the loop. However, the Master does not repeat (re-transmit) any of these
received signals optically back around the loop, because its Repeat Switch is in the "OFF" position.
