GARLAND HALF SIZE ELECTRIC CONVECTION OVEN MODEL MCOE5L INSTALLATION/OPERATION MANUAL
Part # 4516833 Rev A (20 Sep 2011)
Page 17

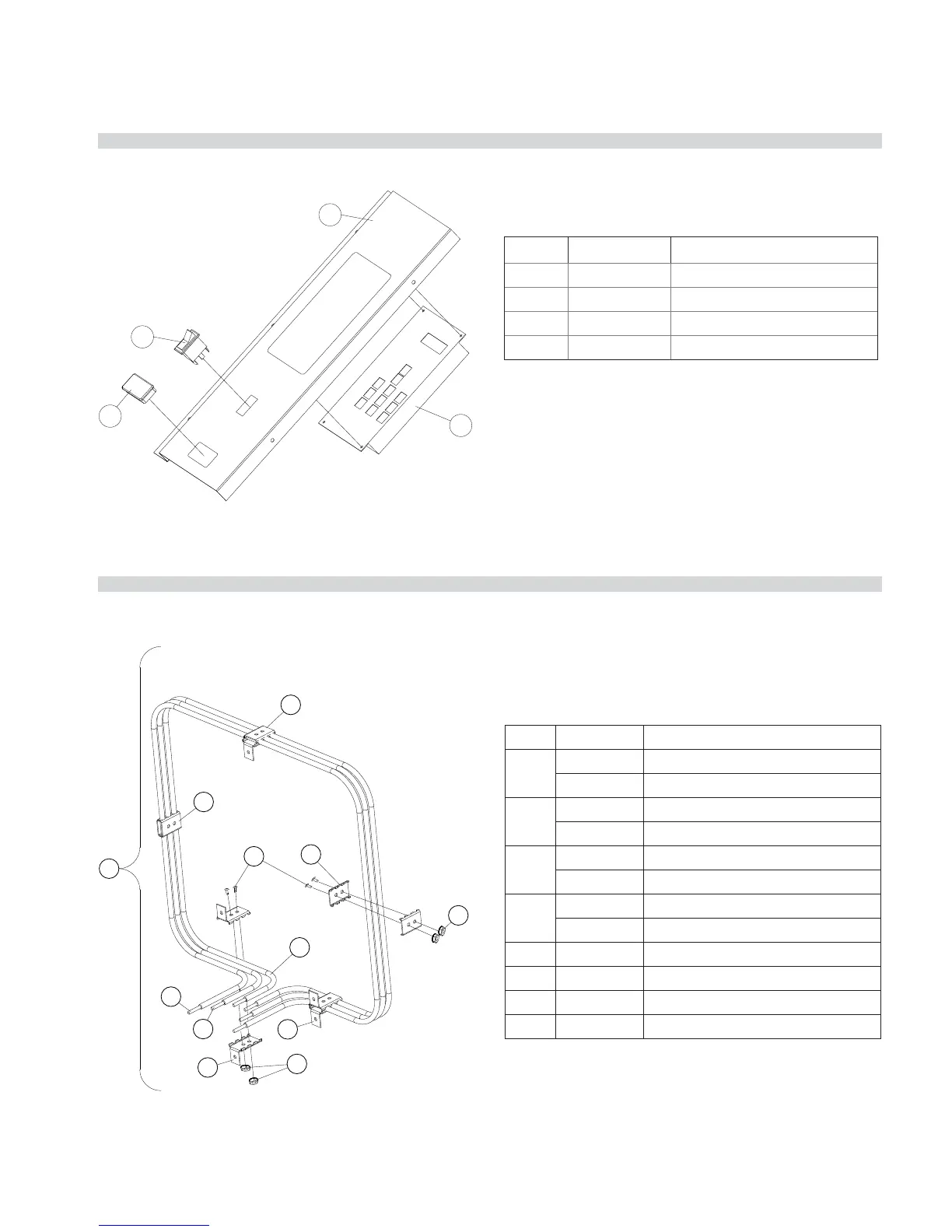

PARTS ID: CONTROL PANEL ASSY; ALL MODELS
PARTS ID: ELEMENT ASSY; ALL MODELS
Control Panel
1
4
3
2
Element Assembly
6
6
2
3
5
5
8
1
7
8
5
4
Item Part #
Description
1 1946663 Control Panel MCDS MCOE5L
2 1966401-1 Control, MCDS MCOE5
3 1966410 Card Reader Cover / Black
4 1872404 Power Switch
Item Part # Description
1
1765101 Element Inner 208V / 2500W
1765109 Element Inner 240V / 2500W
2
1765102 Element Outer 208V / 2500W
1765110 Element Outer 240V / 2500W
3
1765111 Element Center 208V / 2500W
1765112 Element Center 240V / 2500W
4
CK1765199 Element Assembly - 208V
CK1765198 Element Assembly - 240V
5 1765105 Element Holder W/Flange
6 1765106 Element Holder W/O Flange
7 8003107 10-24 x 3/4 screw
8 8001501 10 - 24 Keps Nut
