Garland MCOE5L Installation, Operating Instructions And Parts List

INSTALLATION/OPERATION MANUAL GARLAND HALF SIZE ELECTRIC CONVECTION OVEN MODEL MCOE5L
Part # 4516833 Rev A (20 Sep 2011)
Page 16
Card Reader
2
4
3
5
1
20

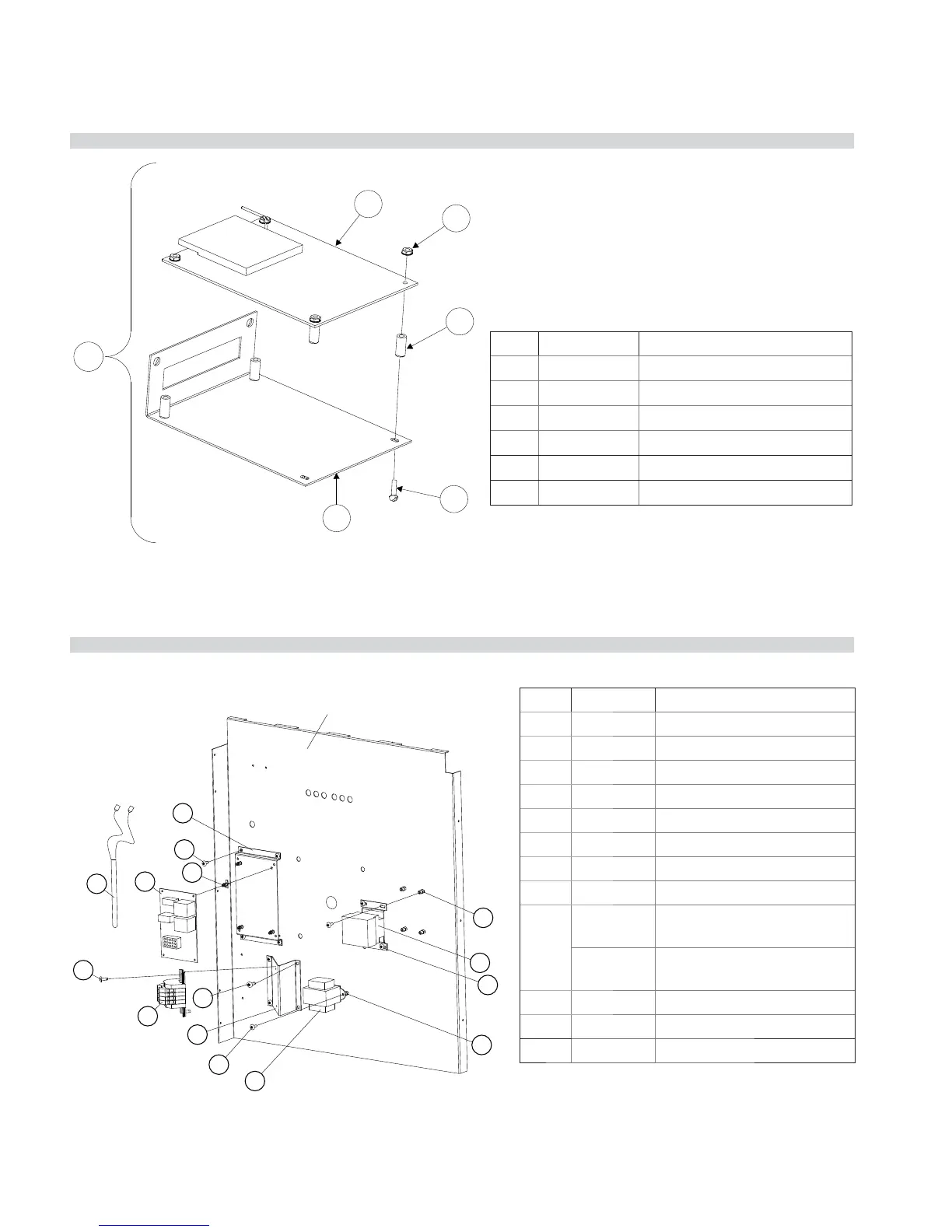

PARTS ID: CARD READER ASSY; ALL MODELS
PARTS ID: SIDE PARTITION ASSY; ALL MODELS
Side Particion
1
11
4
5
6
10
7
9
11
2
3
2
10
8
11
12
Item Part # Description
1 1962203 Bracket, Card Reader
2 1966404 Card Reader
3 1955703 Stando -Nylon 1/4 Dia 3/4 LG
4 8001502 Nut W/Lock Washer 6-32 KEP
5 8003427 FHS Stud 6-32 x 7/8 L
20 1962299 Card Reader Assembly
Item Part # Description
1 1961101 Partition Side MCOE5L
2 9000902 #10-24 Hexagonal TNS
3 1637002 Contactor 240V Coil
4 1962201 Relay Board Mounting Brkt
5 1767901 Nylon PCB Spacer
6 1966405 Relay Board
7 4516982 Terminal Block 4 Lug
8 1962208 Bracket, Terminal Block
9
4521630
Transformer, 120/240 V to
24V-40VA
1917103
Transformer 230V CE
(Export Only)
10 8002107 10x1/2 PH TRS HD
11 8003123 10-24x5/8 PH TRS HD
12 9006800 RTD Temperature Probe
