Garland ULTIMATE 114 E - Machine Descriptions; Machine Usage Environment; Machine Component Overview

English
24/96
9
4
5
5a
1
12
11
2
3
10
8a
8
7
6
4.1. USAGE CONDITIONS
This machine is designed for domestic use and is designed to pump water at a high pressure at a temperature
between 5º C and 40º C and humidity conditions below 50%.
4. MACHINE DESCRIPTIONS

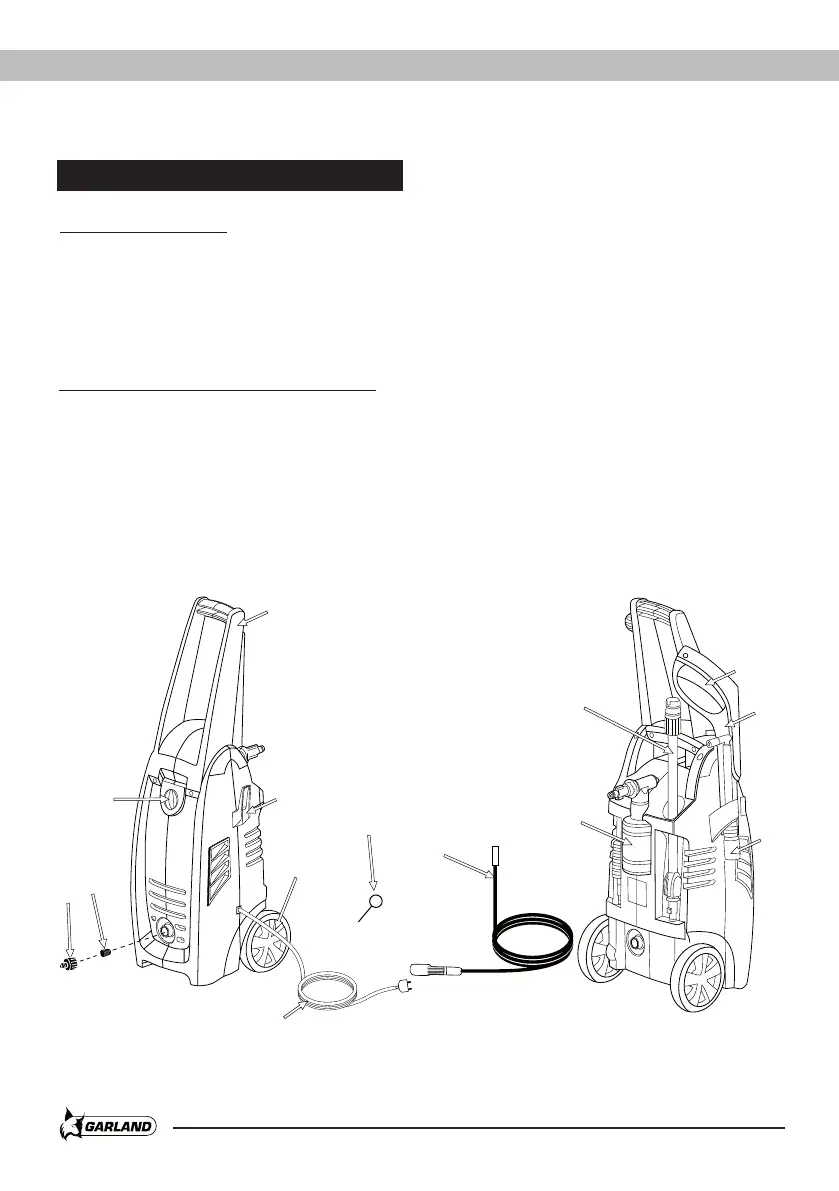

4.2. DETAILED DESCRIPTION OF THE MACHINE
1. On/Off switch
2. Transport wheel
3. Electric cable
4. Lance cleaning wire
5. Hose joint
5a. Filter
6. Lance
7. Lance joint
8. Gun
8a. Trigger
9. High pressure hose
10. Detergent deposit
11. Electric cable support
12. Cable winder
The diagrams and pictograms herewith enclosed in this manual are a guide but not necessarily an exact copy
of the actual machine.
