Garmin 22 - Page 7

5GSD 22 Sonar Module
INSTALLATION INSTRUCTIONS

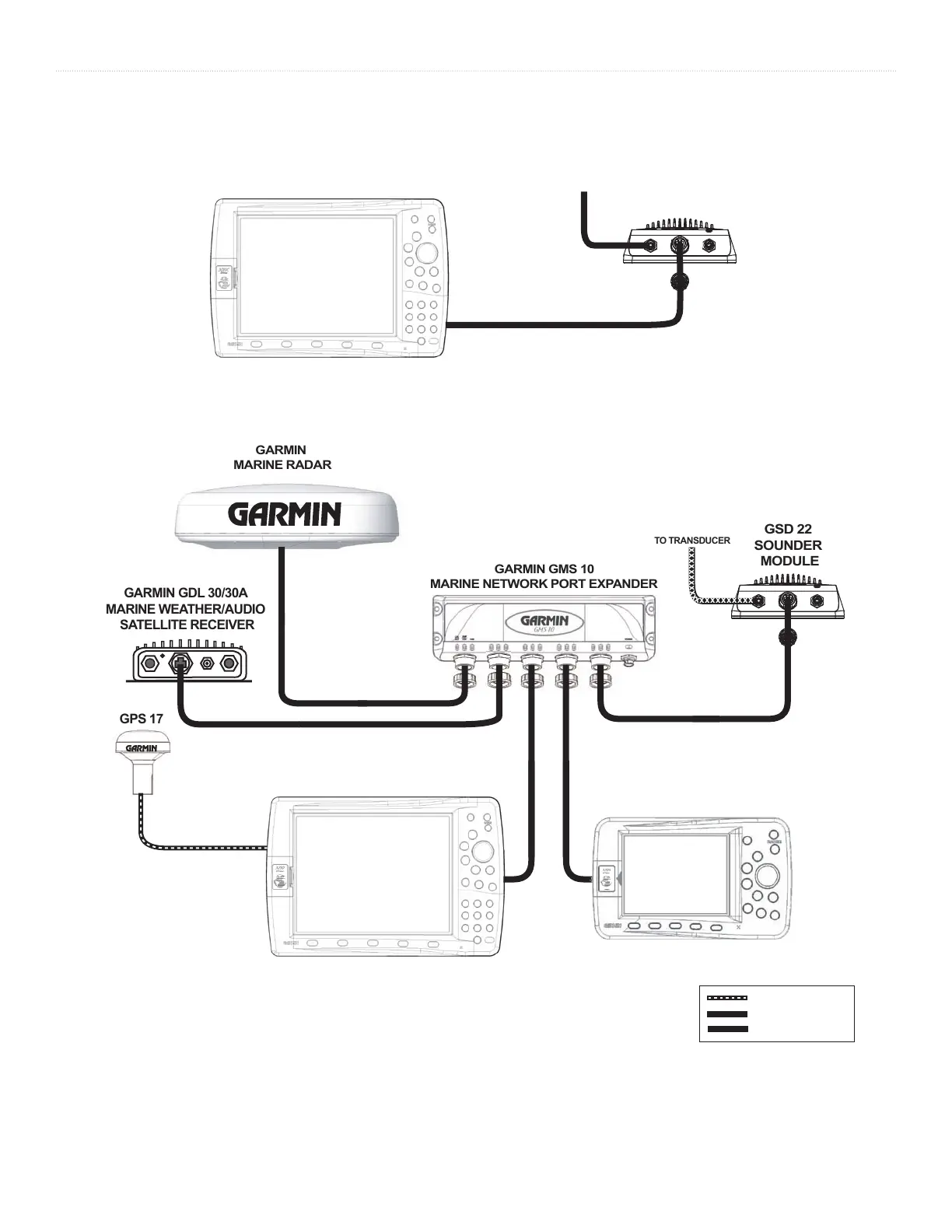

The following diagrams shows the Garmin Marine Network with a GSD 22 Sounder Module connected.
GARMIN GDL 30/30A
MARINE WEATHER/AUDIO
SATELLITE RECEIVER
GPS 17
GARMIN GMS 10
MARINE NETWORK PORT EXPANDER
GSD 22
SOUNDER
MODULE
GARMIN
MARINE RADAR
TO TRANSDUCER
xxxxxxx
x
x
x
x
xxxxxxxxxx
Serial cable
Ethernet cable
Transducer cable
xxxxxxxxx
GSD 22
SOUNDER
MODULE
TO TRANSDUCER
xxxxxxx
x
x
x
x
xxxxxxxxxx
The GARMIN Marine Network with a Single MFD and a GSD 22
The GARMIN Marine Network with Multiple Units and a GSD 22
