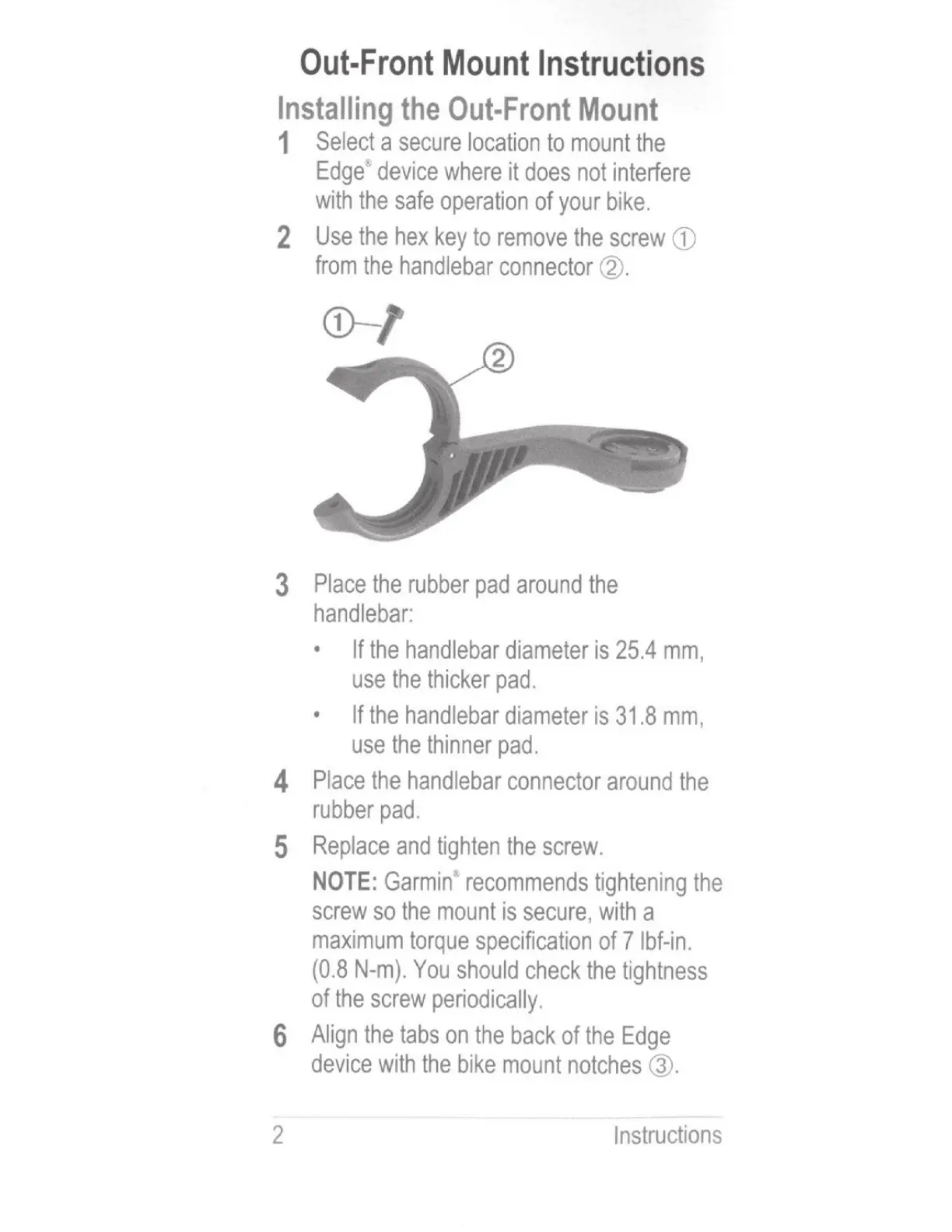

Out-Front
Mount
Instructions
Installing
the
Out-Front
Mount
1
Select
a
secure
location
to
mount
the
Edge
device
where
it
does
not
interfere
with
the
safe
operation
of
your
bike.
2
Use
the
hex
key
to
remove
the
screw
CD
from
the
handlebar
connector
~.
3
Place
the
rubber
pad
around
the
handlebar:
•
If
the
handlebar
diameter
is
25.4
mm,
use
the
thicker
pad.
•
If
the
handlebar
diameter
is
31.8
mm,
use
the
thinner
pad.
4
Place
the
handlebar
connector
around
the
rubber
pad.
5
Replace
and
tighten
the
screw.
NOTE:
Garmin"
recommends
tightening
the
screw
so
the
mount
is
secure,
with
a
maximum
torque
specification
of
7
lbf-in.
(0.8
N-m).
You
should
check
the
tightness
of
the
screw
periodically.
6
Align
the
tabs
on
the
back
of
the
Edge
device
with
the
bike
mount
notches
3/.
