APPENDIX B ASSEMBLY AND INSTALLATION DRAWINGS
GTX 330/GTX 330D Installation Manual Page B-3 (Page B-4 blank)
190-00207-02 Revision R

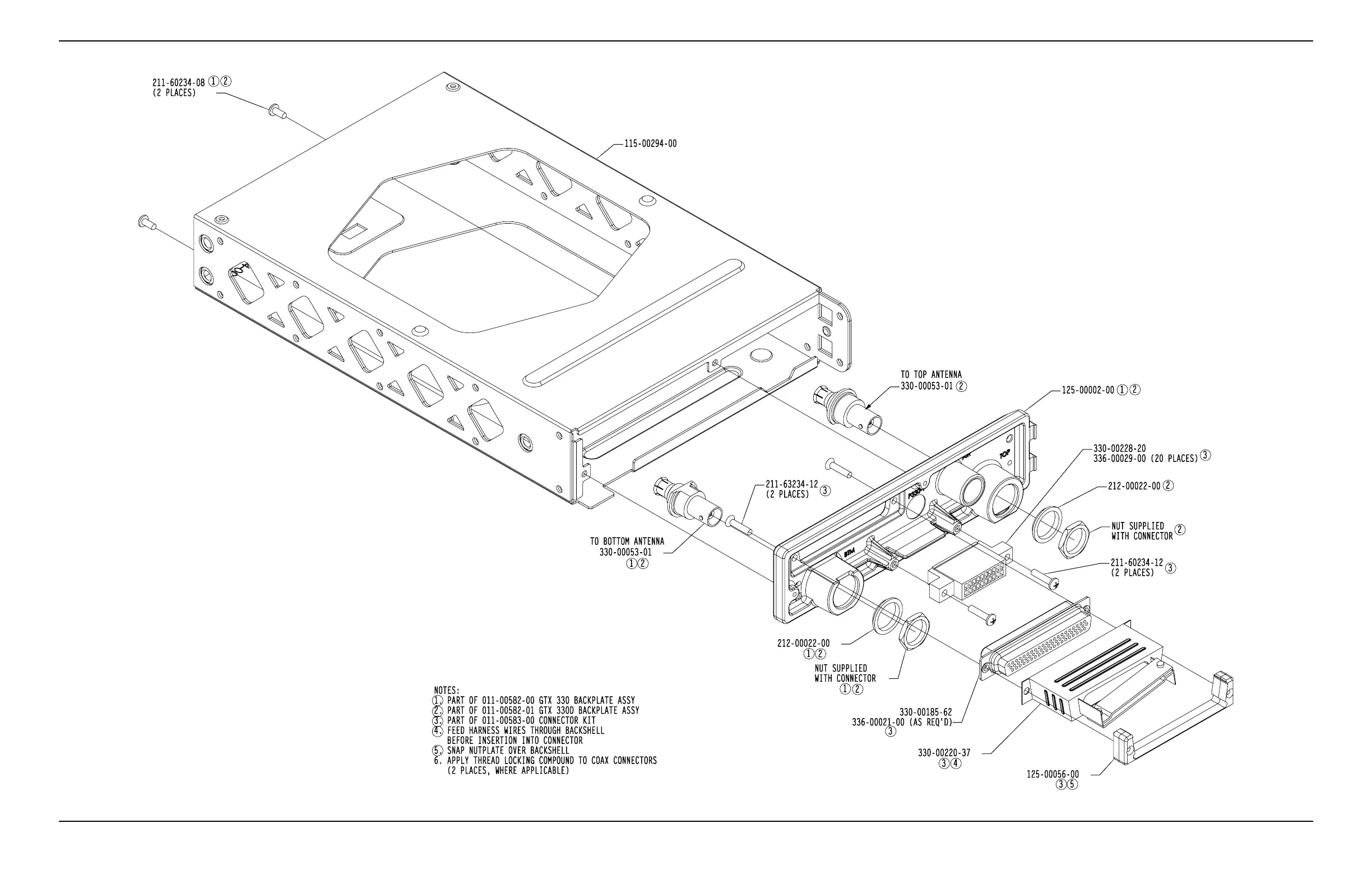

Figure B-2. GTX 330 Connector/Rack Assembly Drawing
