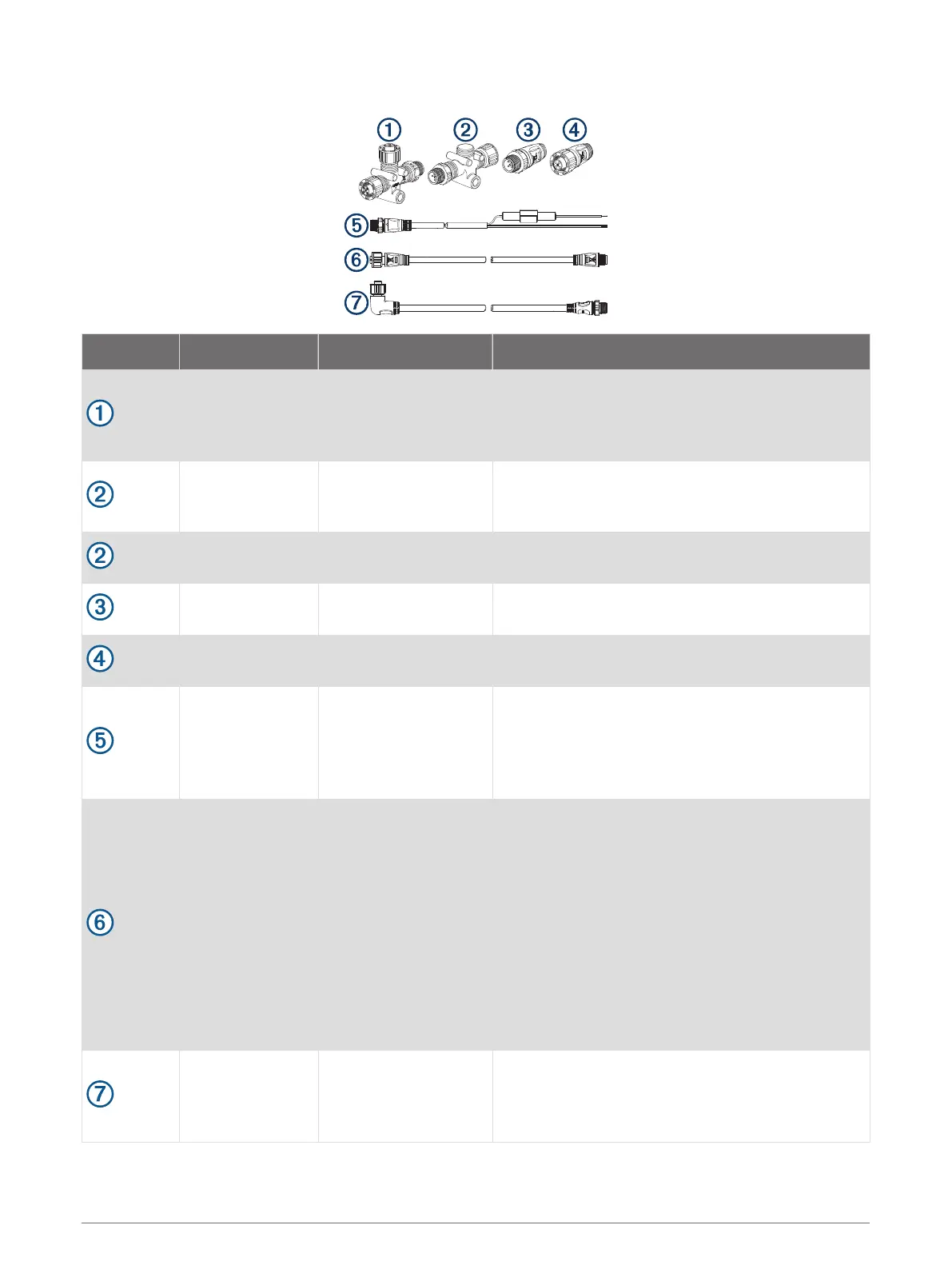

NMEA 2000 Components
Item Description Garmin Part Number Notes
T-connector 010-11078-00
Connects devices to the backbone.
You must use T-connectors properly when
connecting devices to your NMEA 2000 network
(Linear Backbone Construction, page 6).
In-line terminator 010-11096-00
You can use this instead of a T-connector and
separate male terminator (Network Termination,
page 11).
Power isolator 010-11580-00
Prevents a device from providing power to the
NMEA 2000 (Power Isolation, page 10).
Male terminator 010-11080-00
You must install terminators on both ends of the
backbone (Network Termination, page 11).
Female termi
nator
010-11081-00
You must install terminators on both ends of the
backbone.
Power cable 010-11079-00
Connects the NMEA 2000 network to a 12 Vdc
power source (Power Connection Considerations,
page 7).
2 m (6.5 ft.)
3 A fuse included
Backbone or drop
cable
010-11076-03: 0.3 m
(1 ft.)
010-11076-00: 2 m
(6.5 ft.)
010-11076-04: 4 m
(13 ft.)
010-11076-01: 6 m
(20 ft.)
010-11076-02: 10 m
(33 ft.)
010-11171-01: 30 m
(98 ft.) (spool)
A cable up to 6 m (20 ft) can be used as a
backbone cable or a drop cable.
A cable longer than 6m (20 ft) can be used as a
backbone cable only.
Right-angle drop
cable
010-11089-01: 0.3 m
(1 ft.)
010-11089-00: 2 m
(6.5 ft.)
Can be used when connecting to a device with
minimal clearance for the rear connectors.
