GARO TWIN+ - Page 7

2xM6
2x M8xL20mm + Nut + Washer
3xM6 L12mm
2xM8 L20 + 2xM8 Nut + Washer
6x M6 Nut + Washer
6xM6 L40mm

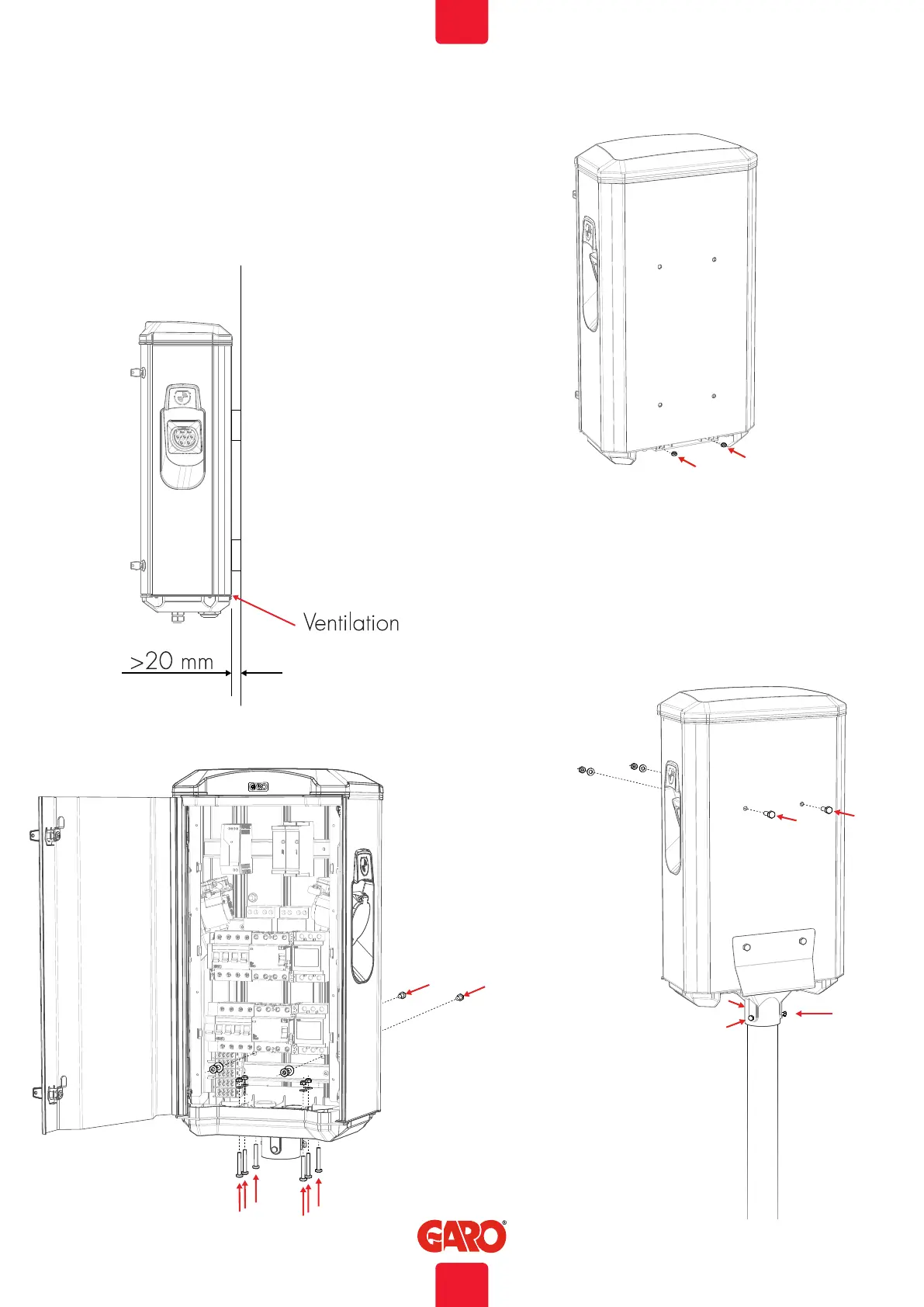

INSTALLATION
(picture 4)
(picture 5) (picture 6)
Note: Wall installation requires a minimum 20mm distance
between the wall and the TWIN+ to ensure correct cooling, see
picture 3.
When TWIN+ is installed on a pole, the holes at the back side
should be covered/closed by attached screws, see picture 6.
(picture 3)
