INSTALLATION

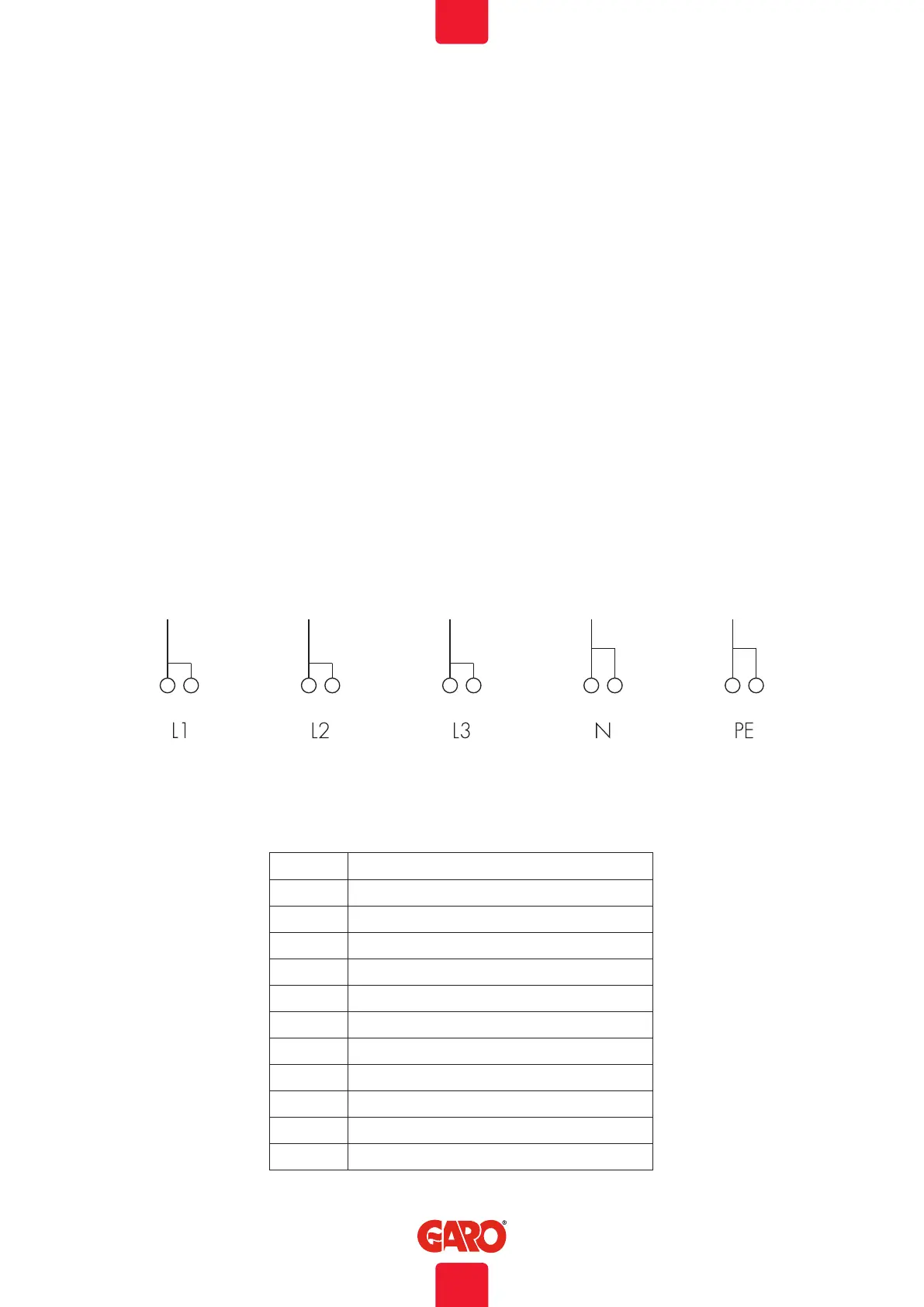

6. Install the electrical supply cable to terminals L1-L3, N , PE.
Note: TWIN+ is equipped with double terminals that makes it
easy to forward the supply cable to another TWIN+,
see picture 7.
Phase-rotation is recommended in order to achieve even
load on all phases when several TWIN+ are installed
to same mains.
For example:
1st TWIN+: L1, L2, L3
2nd TWIN+: L3, L1, L2
3rd TWIN+: L2, L3, L1
And so on….
Note: When DLM is pre-configurated from factory, follow
the marked phase order label at incoming terminals. All pre-
configured TWIN+ contains the information about this inside the
cabinet.
Role Serialnumber / M-number
Master M00001
Slave 1 M00002
Slave 2 M00003
Slave 3 M00004
Slave 4 M00005
Slave 5
Slave 6
Slave 7
Slave 8
Slave 9
Slave 10
Master/Slave form
CU/AL MAX16mm
2
(picture 7)
(picture 8)
