7. In cases with TWIN+ connected in a grid, install TP cable
CAT6 with RJ45 connectors between each TWIN+ and the
provided ethernet router/switch (located ie. in GARO KOMM
BOX). Se example of ethernet wiring diagram picture 10
Note! Connect the ethernet cable to CC1. The ethernetport on
CC2 is not in use. Se picture 9-10

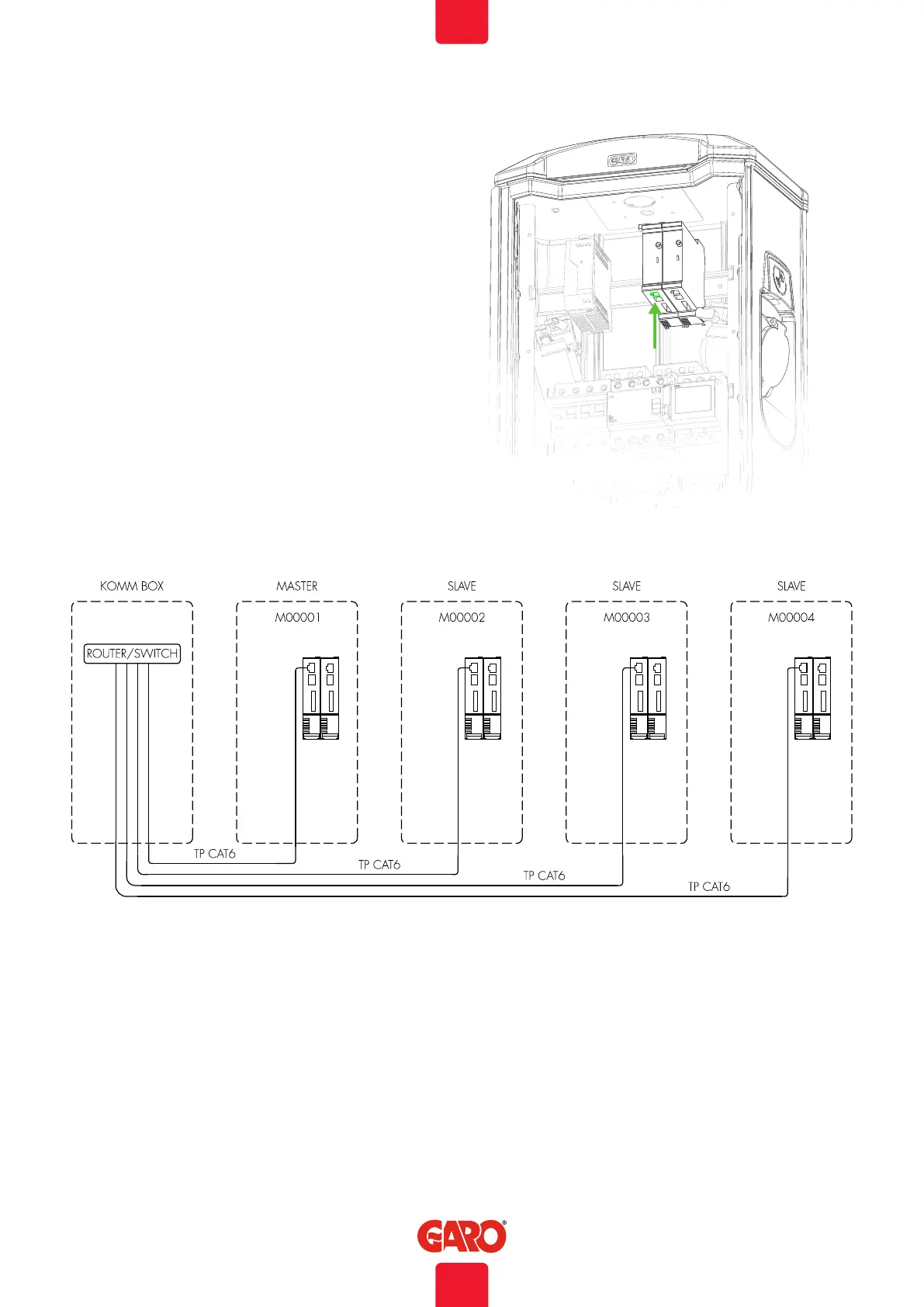

4pcs TWIN+ in an Ethernet network with Router/Switch
(picture 9)
(picture 10)
