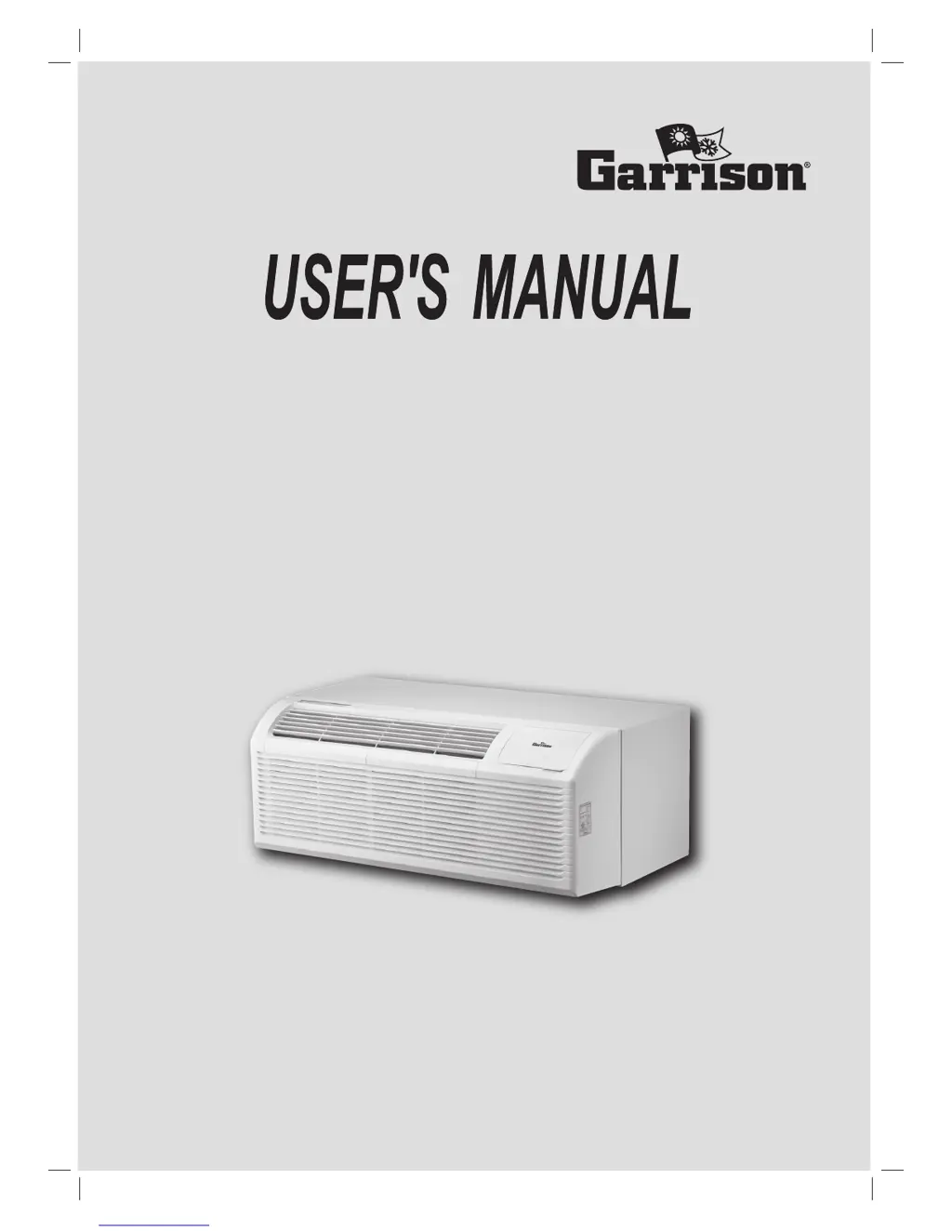

PACKAGED TERMINAL
AIR CONDITIONER/HEAT PUMP
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
Model: 2498546/2498547/2498548/2498549
2498550/2498551/2498552/2498553
2498554/2498555/2498556/2498557
2498558/2498559/2498560/2498561

Table of Contents

Questions and Answers

  • S
    sullivanjamesAug 9, 2025
    What to do if my Garrison 2498549 Heat Pump is not cooling or heating the room?
    • J
      Jeremy RoweAug 9, 2025
      If your Garrison Heat Pump isn't cooling or heating the room effectively, ensure that curtains, blinds, and furniture aren't blocking the unit's airflow. Try adjusting the temperature setting to be lower or higher. Also, clean the filters. Allow enough time for the unit to heat or cool the room, or start it early. Ensure the vent door is closed and check the dip switch and wall thermostat settings. Note that it may take around 3 minutes for the compressor to start.
  • T
    Thomas BarrettAug 17, 2025
    Why my Garrison 2498549 Heat Pump does not start?
    • T
      Tina WoodwardAug 17, 2025
      If your Garrison Heat Pump isn't starting, check that the plug is securely plugged into the wall receptacle and that the plug has not tripped (it has a test/reset button). Also, replace the fuse or reset the circuit breaker. Finally, make sure the unit is turned on using the bottom right button on the keypad.
  • C
    christinelongAug 25, 2025
    What to do if ice or frost forms on the indoor coil of my Garrison 2498549 Heat Pump?
    • E
      Erin OrtizAug 25, 2025
      If ice or frost forms on the indoor coil of your Garrison Heat Pump, especially when the outdoor temperature is around 55°F or below and the unit is in Cooling mode, switch the unit to FAN operation until the ice or frost melts. Additionally, remove and clean the filters.
  • J
    Jeffrey GilesAug 31, 2025
    Why is water dripping inside my Garrison 2498549?
    • M
      Martin VanceAug 31, 2025
      If water is dripping inside from your Garrison Heat Pump, it might be because the wall sleeve isn't installed level. The wall sleeve must be level to ensure proper condensation drainage. Check the installation and adjust as necessary.

Summary

Safety Precautions

Important Safety Instructions

Air Conditioner Features

Compressor Restart Delay

Extends compressor life by preventing short-cycling through refrigerant pressure equalization.

Automatic Evaporator Freeze Protection

Prevents evaporator freezing by turning off compressor and running indoor fan when temp is too low.

Golden Fin Protection

Anti-corrosion coating on coils enhances heat transfer and resists environmental damage.

Automatic Quick Warm-Up

Uses electric strip heat to quickly reach set temperature when room temp drops significantly.

High Temperature Protection in Heating Operation

Prevents damage by switching off compressor/heater when indoor air temp is too high.

Control Panel Operation

MODE Selection

Temperature Adjustment (+;- Buttons)

DIP Switch Configurations (Optional)

Dip Switch Functions

Details configurations and functions of each dip switch position for unit settings.

Heat and Cool Fan CON;CYC Dip Switches

Wall Thermostat Enable

Set Point Temperature Limits

Installation

How to Install the Unit

General guidance and cautions for installing the air conditioner unit into a wall sleeve.

Unit Installation Steps

Detailed steps for removing shipping materials and installing the unit into the sleeve.

Care and Cleaning

Outdoor Coil Maintenance

Air Filters

Importance of filter cleaning, frequency, and cleaning procedures.

Vent Door Filter

Troubleshooting

Unit Does Not Start

Lists common causes and solutions for the unit failing to start.

Unit Not Cooling;Heating Room

Addresses issues like blocked airflow, incorrect settings, or dirty filters.

Ice or Frost Forms on Indoor Coil

Compressor Protection

Electric Heating Failure
