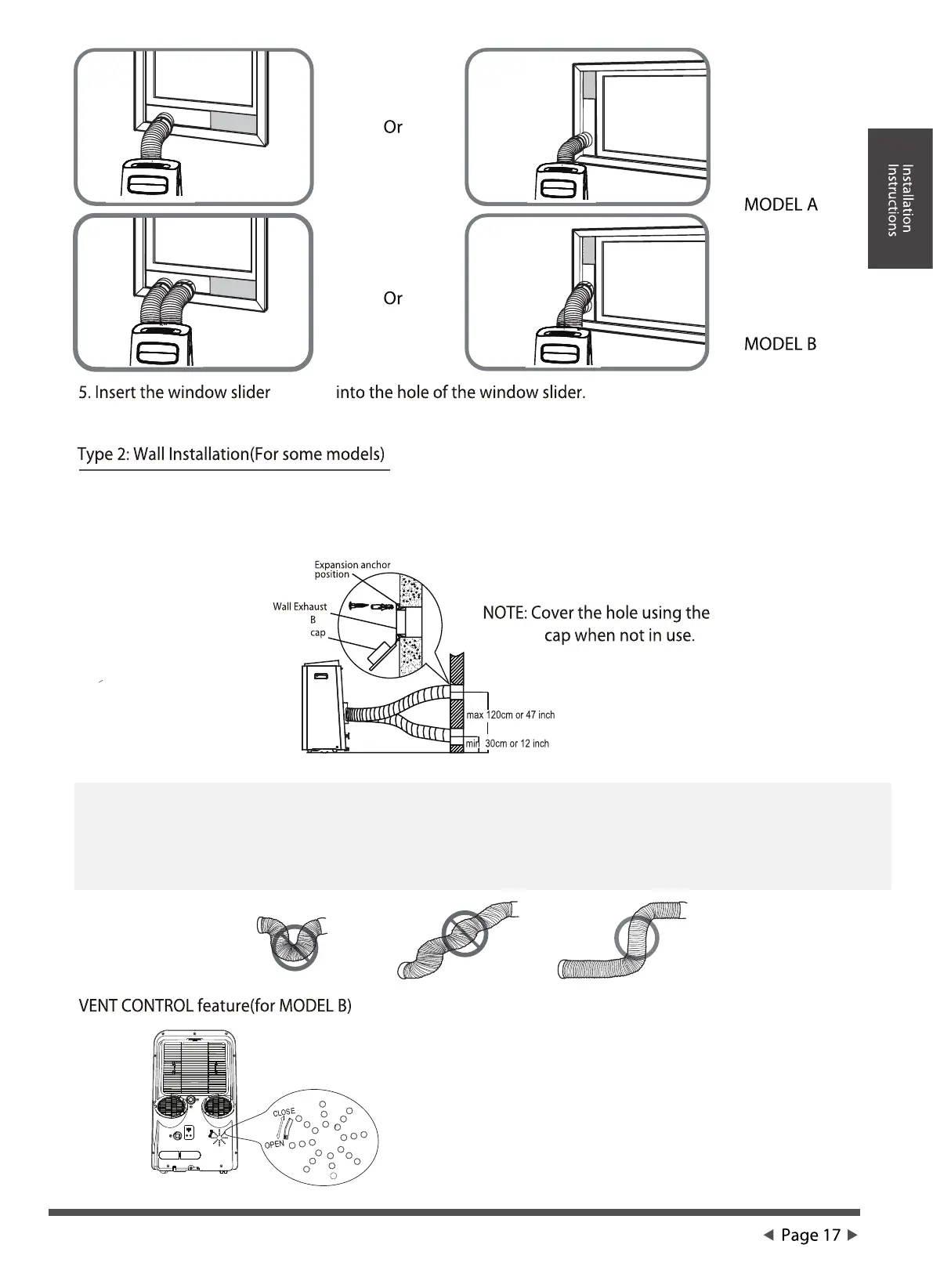

1. Cut a 125mm (4.9inch) hole into the wall for the wall exhaust adapter B.
2. Secure the Wall Exhaust adapter B to the wall using the four anchors and screws provided in the kit.
3. Connect the exhaust hose assembly (with wall exhaust adapter A) to the Wall wall exhaust adapter B.
NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle
around the air outlet of the exhaust hose (in the range of 500mm) in order for the exhaust system to work
properly. All the illustrations in this manual are for explanatory purposes only. Your air conditioner may be
slightly different. The actual shape sha
ll prevail.
The vent control is located at the back of the air
conditioner. The OPEN position removes stale air from
the room and exhausts it to the outside. Fresh air is
drawn in through normal passages in the home. When
not circulating the room air, set vent control to
CLOSE position. This function is only applicable for
MODEL B.
