Extended Exhaust Hose
Extended Exhaust Passage

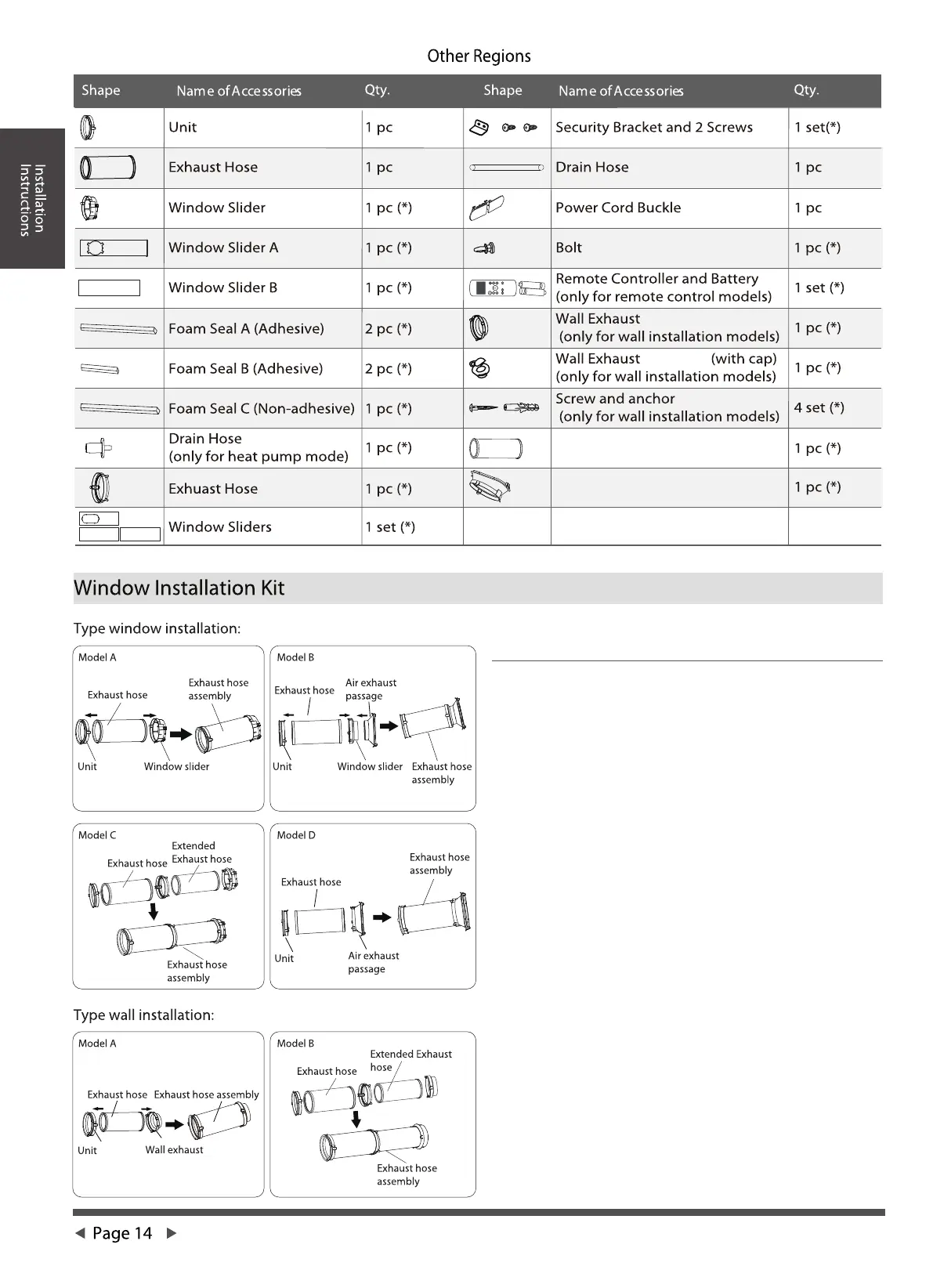

Step One: Preparing the Exhaust Hose Assembly
Press the exhaust hose (or extended exhaust hose)
into the window slider adapter (or wall exhaust
adapter) and unit adapter, clamp automatically by
elastic buckles of the adapters.
adapter
