90 DEGREE CORNER MODULE - BQ1027
(Square corner, infill panel, 14 x M6 Screws, 6 x M6 nuts.)

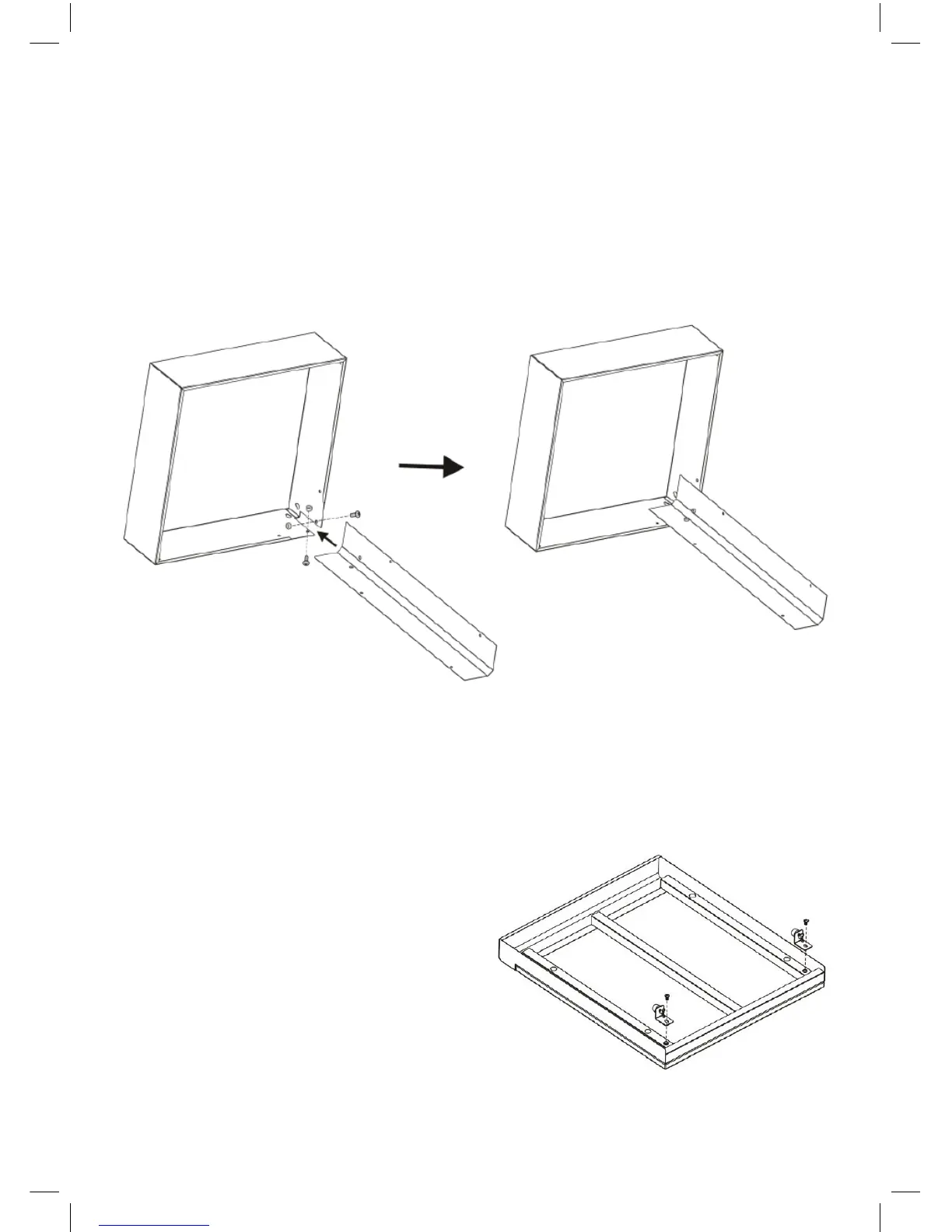

Attach the Infill panel to the inside of the 90 degree
corner and fix with 2 screws as shown.
Attach the corner module to the side of 2 Modules or
a Module and BBQ, with 4 screws into the nutserts
included in the module or BBQ side panels. Fix the infill
panel at the base with a screw and nut to each module.
TOP FOR 1 DOOR BAR FRIDGE - BQ1094
Rest the Frame top onto the fridge, with the front fascia
overhanging at the front. Push the frame backwards
until the front of the frame catches under the front of the
fridge. Attach the brackets to the underside of the frame
using the screws provided (as shown below). And tighten
the thumb screws until the rubber stops push against the
back of the fridge locking the frame into place.
