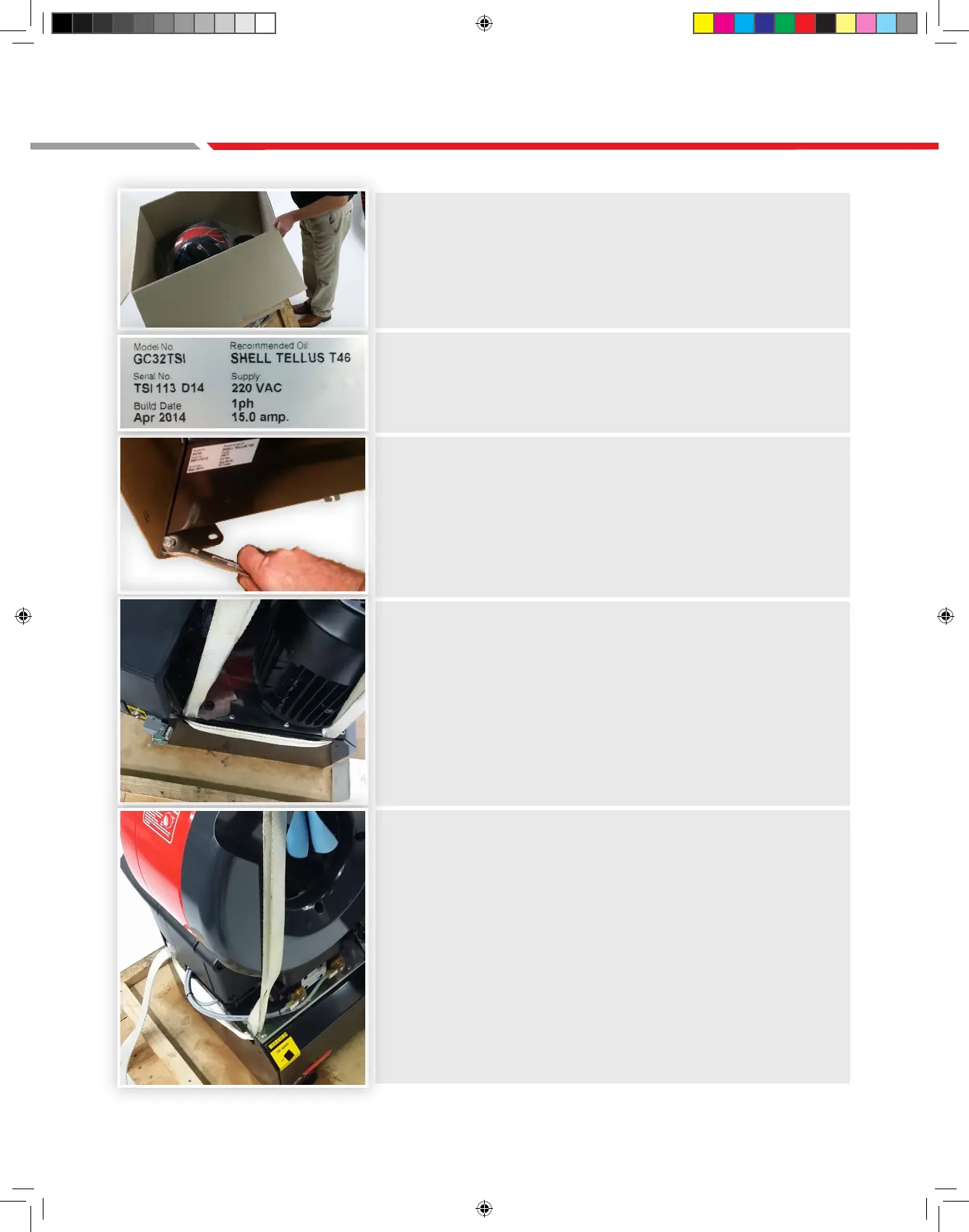

Lift off the carton.
Note voltage and frequency on the name plate located on the back
of the tank. Ensure it is suitable for this location.
Using a 5/8 (16mm) wrench remove the four mounting bolts
Adjust the ratchet handle to rotate the control box out
approx 15 degrees, retighten the handle. Remove control
box power cord. Position the first sling between the control
box and the electric motor as per the photo so that the straps
clear the control box. Ensure the other half of the sling does
not cause excessive pressure on the motor juntion box.
Position the second sling in front and behind the crimper head as
per the photo.
INSTALLATION: SAFELY MOVING CRIMPER
