Setup

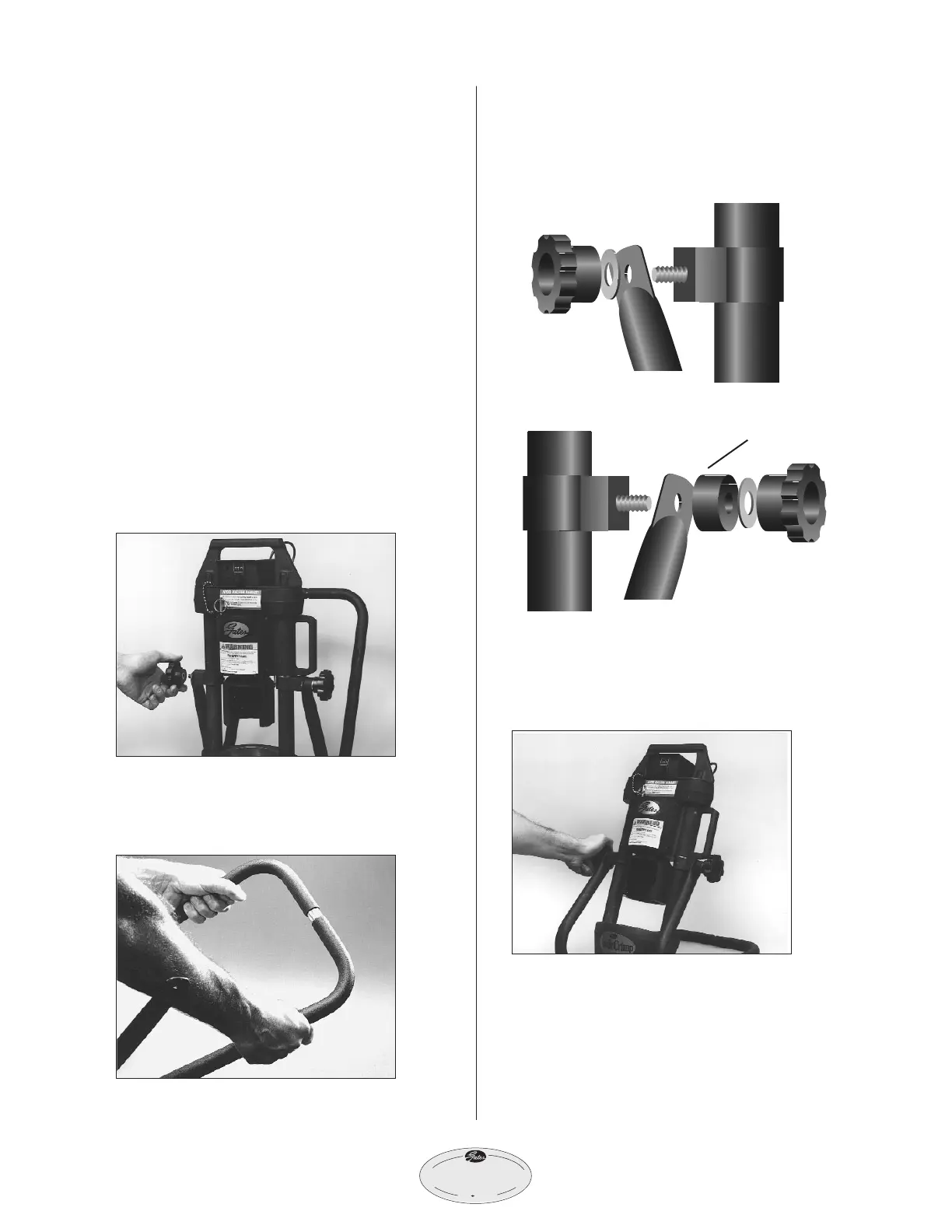

1. Unpack carton.
• Remove crimper, pressure plate (1),
nylon-covered hose assembly (1),
literature envelope (1), stand (2 pieces),
magnet (1) .05 Allen wrench (1) and
Molykote lubricant (1) from shipping
carton. Locate the serial number
assigned to the crimper on the top front
of the cylinder and record on page one
for future reference.
2. Attach crimper to the stand.
• Place crimper on flat, well-supported
surface (such as the top of a workbench
or the bed of a service vehicle) with the
handle to the right.
• Remove two (2) knobs, flat washers (2)
and spacer (1) from crimper pivot bolts.
• Slide the two halves of the stand
together and attach to the crimper
at the pivot bolts.
• Replace spacer, flat washers and knobs.
Do not tighten knobs.
• Lift crimper and allow stand to swing
down onto the surface. Tighten knobs.
Left Side
Right Side
spacer
