Hose Preparation
MegaCrimp
®
Pre-Assembled
Couplings.

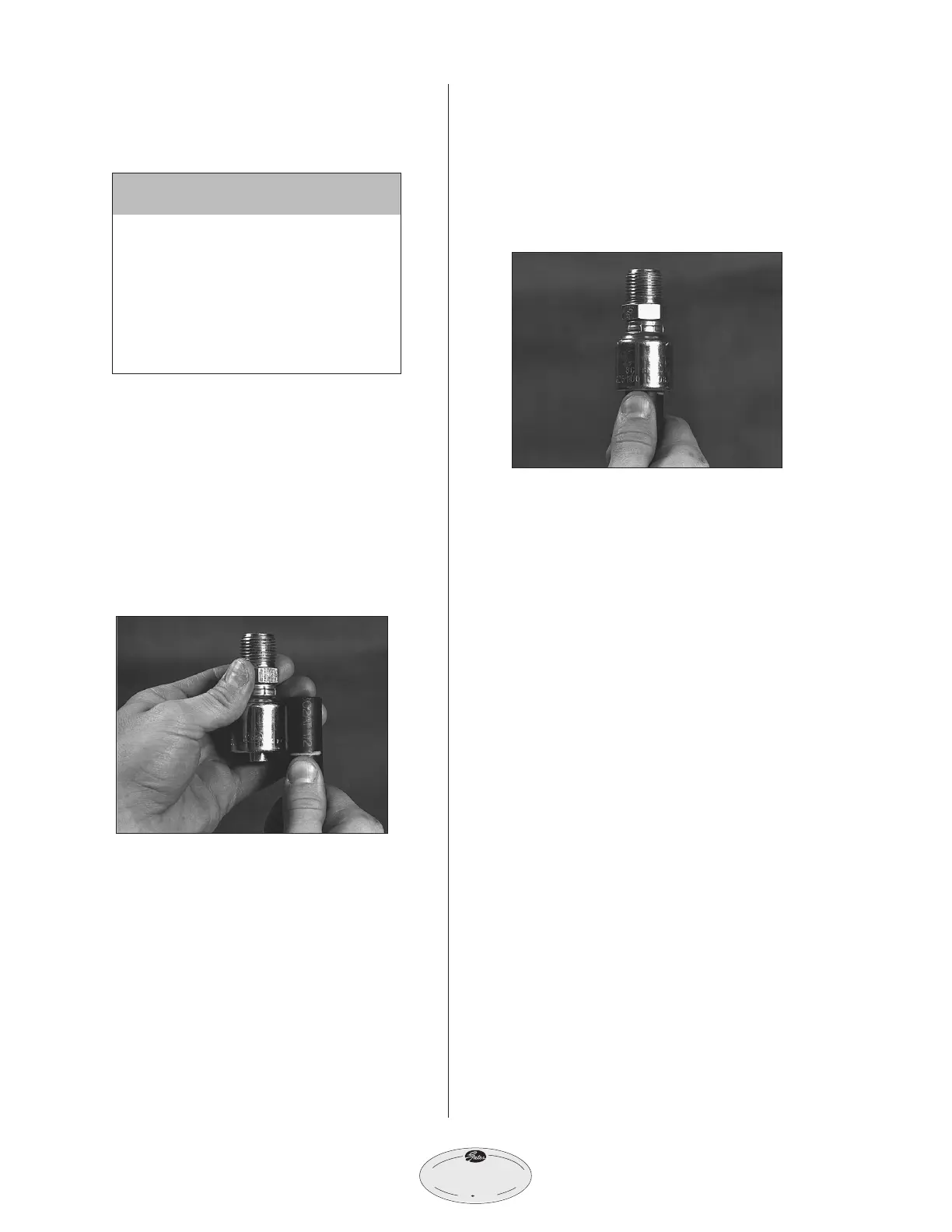

1. Cut hose to desired length.
2. Using Gates crimp data chart #35019
(Ind)
, 428-7365 (Auto), select the
correct coupling or visit our website
to download our electronic program
at www.gates.com/ecrimp.
3. Place a visible mark on hose cover
at the insertion length shown on the
crimp data chart.
4. Insert coupling into the hose until
the mark lines up with the end of
the coupling ferrule.
5. Hose and coupling are now ready
for crimping.
CAUTION
A new hose and end fittings
must be used when building a
hose assembly. Re-using any
components will seriously
affect performance and could
result in serious injury or
property damage.
To Next Page
