Gates SC32 - Page 13

11

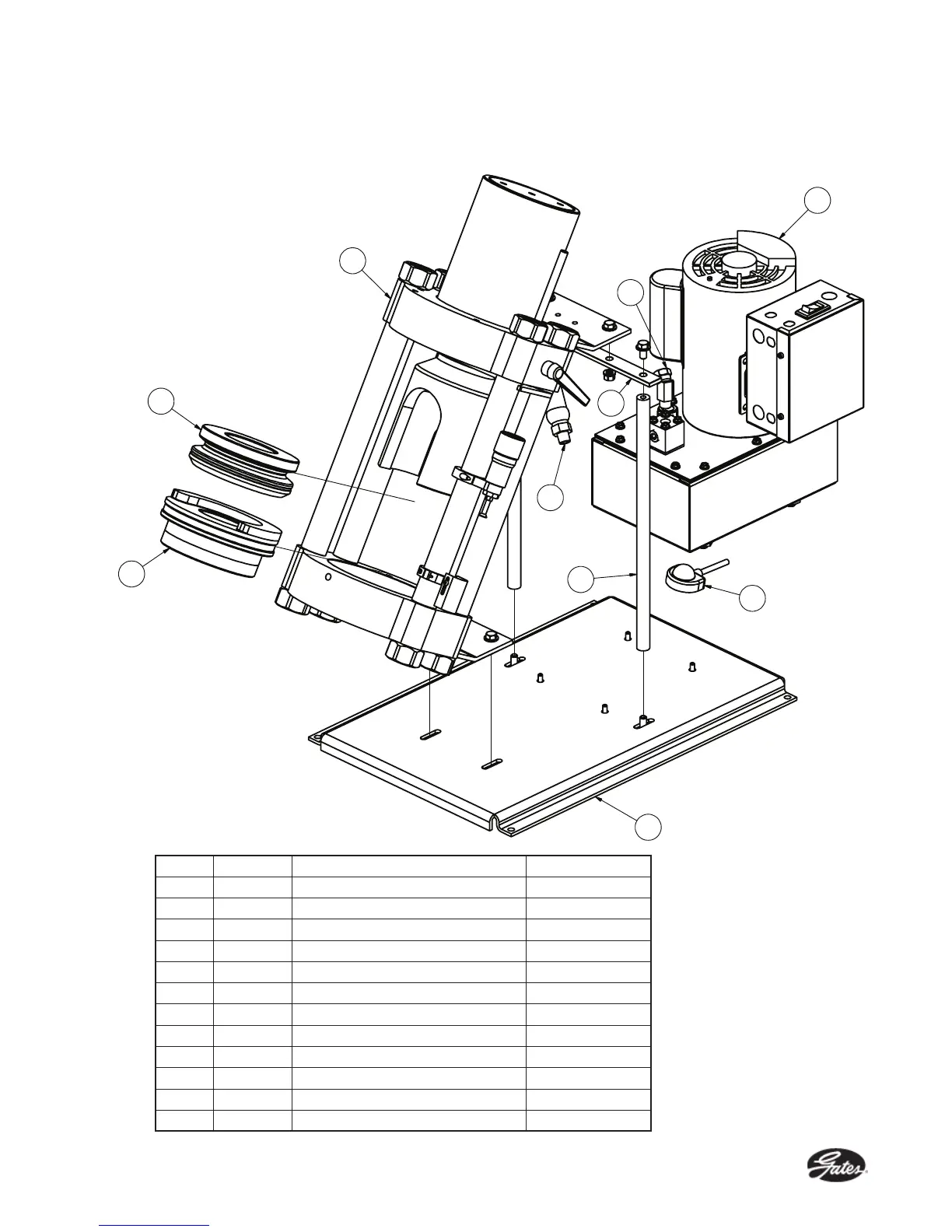

EXPLODED PARTS VIEW
15
1
20
3
17
2
9
10
22
21
ITEM # GATES P/N DESCRIPTION AUTOMOTIVE P/N
1 SC32 BASE PLATE
2 SC32 SUPPORT BAR
3 SC32 SUPPORT ROD
9 SC32 PUMP ADAPTER
10 74800070 SC32 CRIMPER/PUMP 220V 77500
10 74800071 SC32 CRIMPER/PUMP 110V 77501
15 74810051 SC32 REPLACEMENT PUMP 2HP/220 77505
15 74810052 SC32 REPLACEMENT PUMP 1HP/110 77506
17 74821077 SC32 HOSE ASSEMBLY
20 74821730 SC32 PENDANT SWITCH 78982
21 74821739 SC32 BASE PLATE FOR 707 DIES 78991
22 74821738 SC32 DIE CONE FOR PC707 DIES 78990
