Gates SC32 - Page 14

12

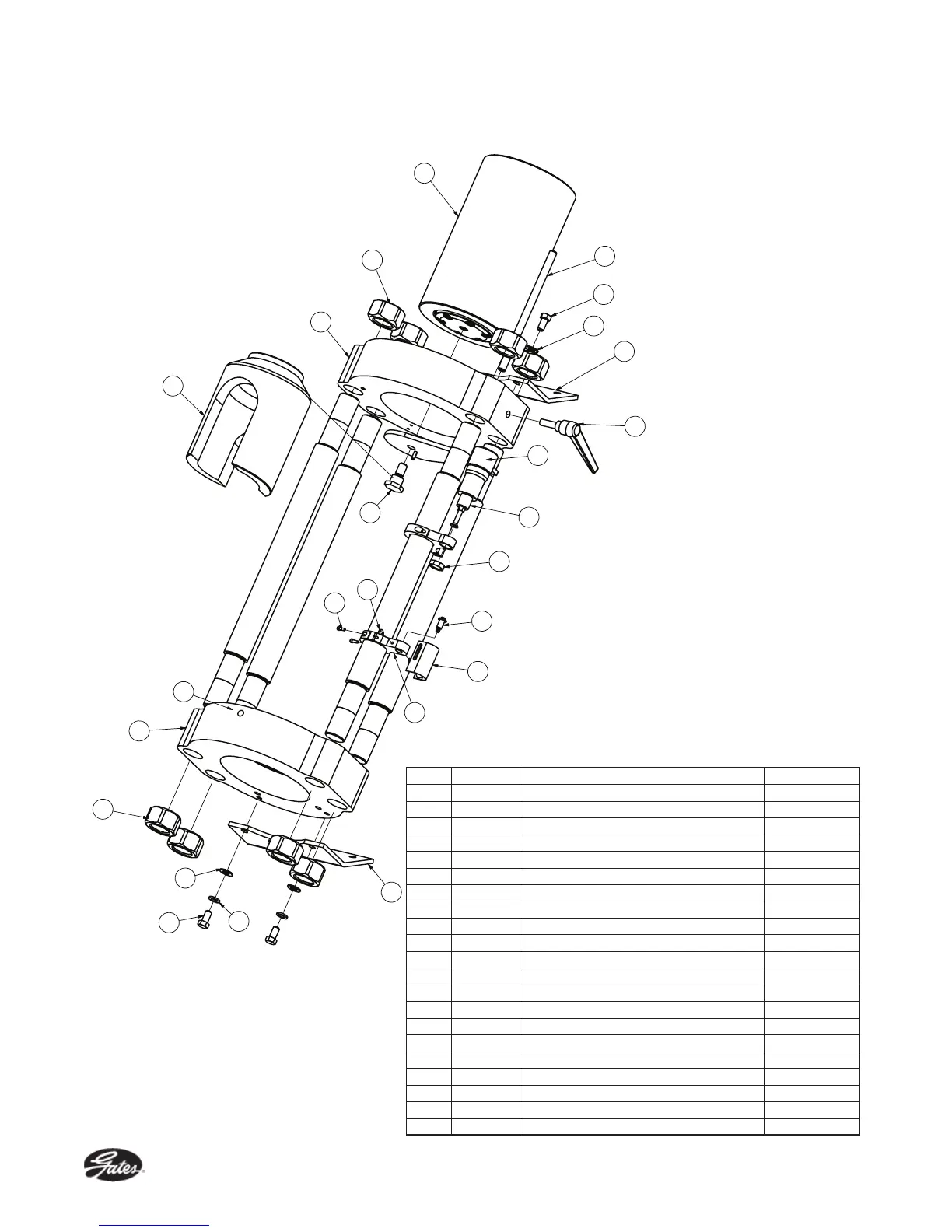

EXPLODED PARTS VIEW
13
15
23
21
20
16
3
6
8
7
4
14
2
1
20
23
22
21
12
5
9
10
11
3
17
ITEM # GATES P/N DESCRIPTION AUTOMOTIVE P/N
1 SC32 BASE FLANGE
2 SC32 BASE FLANGE RETAINING SET SCREW
3 SC32 FLANGE NUTS
4 SC32 MICRO-SWITCH BRACKET
5 SC32 MICRO-SWITCH BRACKET SCREWS
6 74821732 SC32 CRIMP STOP SWITCH 78984
7 SC32 SWITCH GUARD
8 SC32 SWITCH GUARD SCREWS
9 74821737 SC32 MICROMETER 78989
10 SC32 MICROMETER SLIDING ASSEMBLY
11 SC32 MICROMETER NUT
12 SC32 TOP FLANGE
13 74821733 SC32 80 TON CLYLINDER 78985
14 SC32 PUSHER RETAINING PIN
15 SC32 RETRACTION STOP ROD
16 SC32 RETRACTION STOP HANDLE
17 SC32 PUSHER
20 SC32 FLANGE SUPPORT BRACKET
21 SC32 FLANGE SUPPORT BRACKET WASHER
22 SC32 FLANGE SUPPORT BRACKET LOCK WASHER
23 SC32 FLANGE SUPPORT BRACKET BOLT
