- 8 -
(a)
(a)

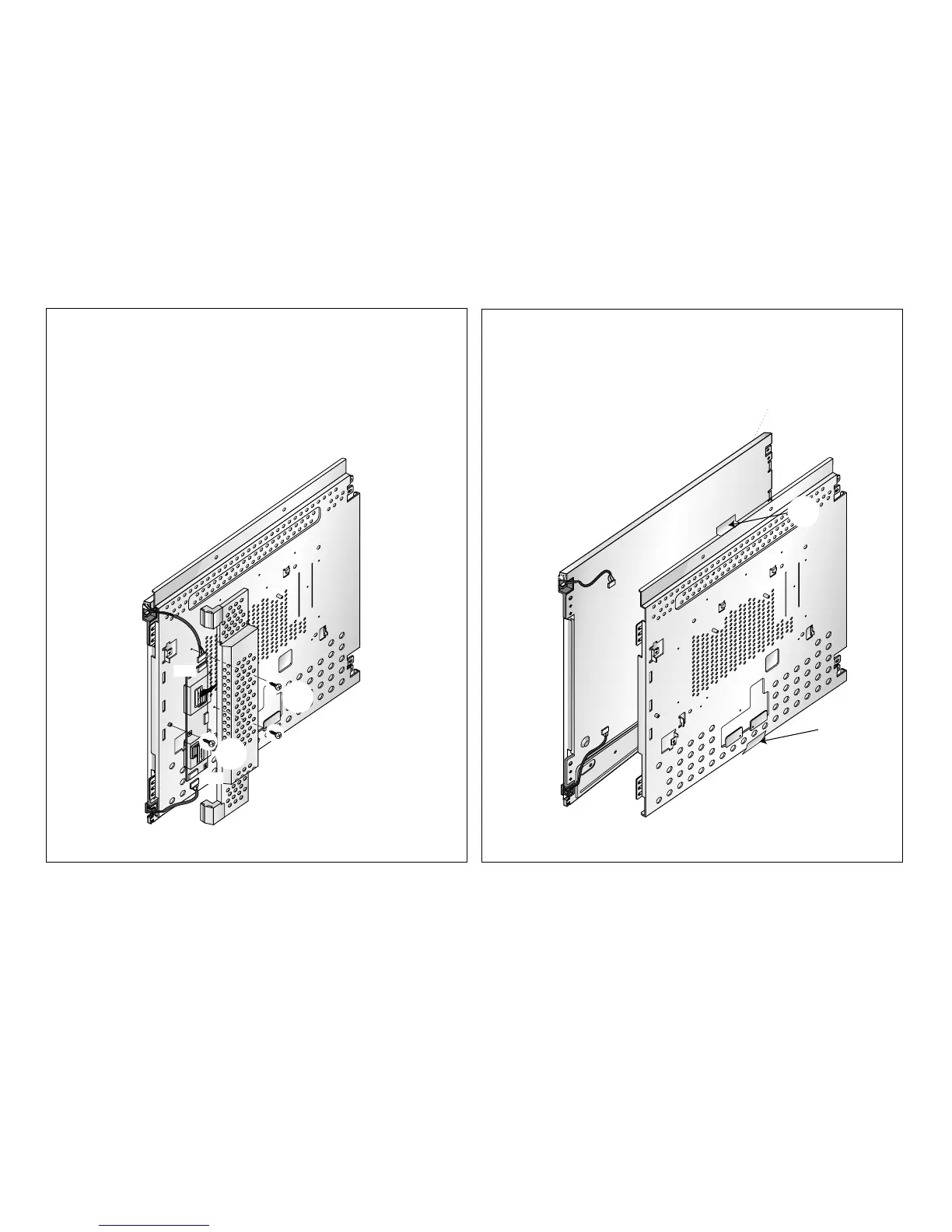

5. LCD MODULE REMOVAL
(1) Remove two Aluminium Tape (a).
(2) Remove the LCD Module.
LCD Module
(a)
(a)
(b)
CN3
CN2
4. INVERTER ASSEMBLY
REMOVAL
(1) Remove two screws (a).
(2) Remove Main Inverter shield ass’y
(3) Remove the screw (b).
(4) Disvonnect CN2, CN3
(5) Remove the Inverter ass’y.
